SHOP MANUAL
DRIVE LINE
Ch 3 page 18 Ch 3 page 19
DRIVE LINE
1
1
Pull the stub shaft (1).
Left and right stub shaft have different length!
Loosen both hexagon screws (1) and remove the lock plate.
Loosen slotted nut.
Loosening torque of slotted nut is over 2000 Nm.
(S) Slotted nut wrench 505764
(S) Centering bracket 505769
By means of a lifting tackle and a pry bar set separate
hub from the hub carrier.
Pay attention to the released bearing inner ring and the
ring gear!
(S) Lifting tackle 514656
(S) Pry bar set 505762

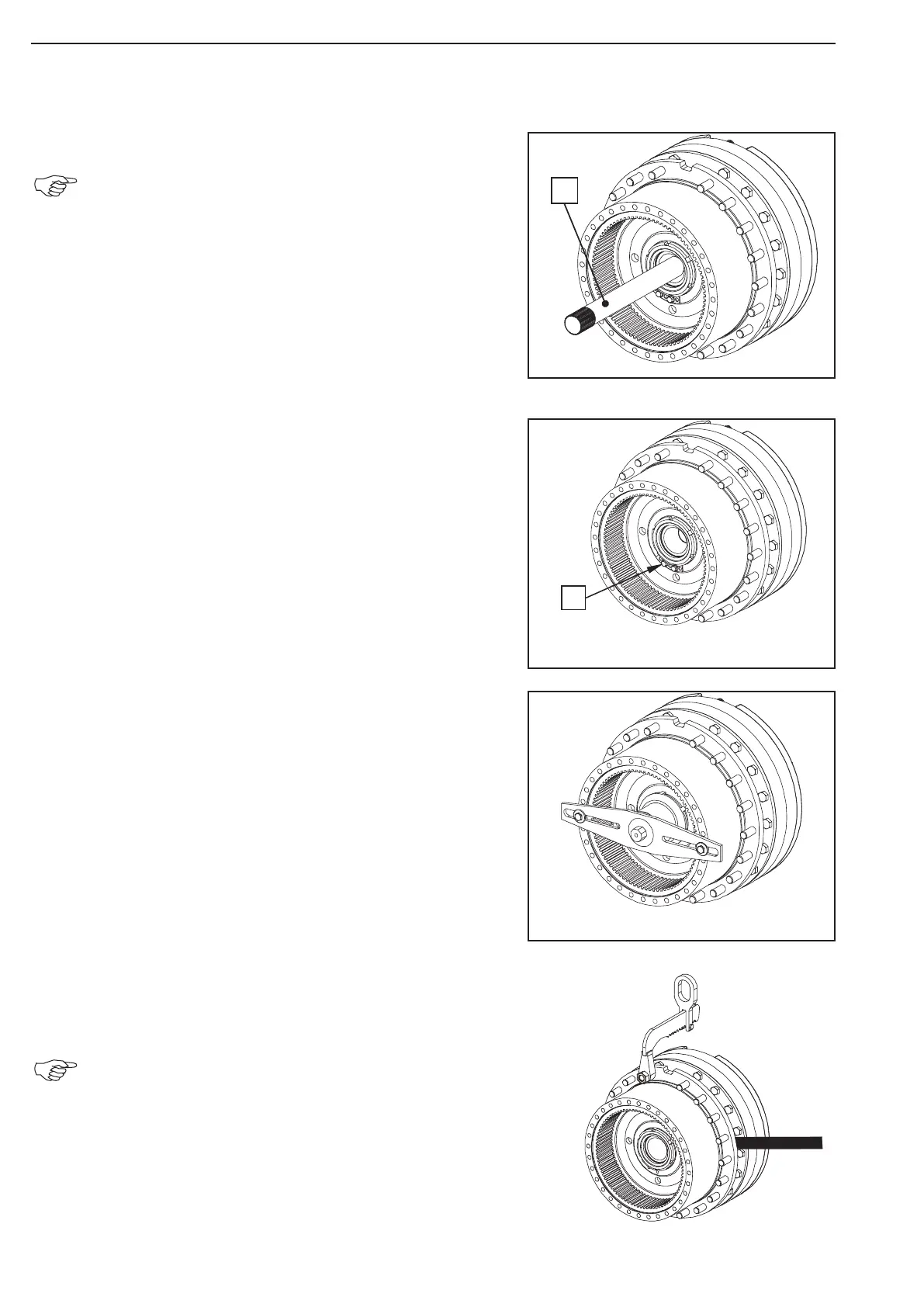

Figure 19
Figure 18
Figure 17
Figure 20
