SHOP MANUAL
DRIVE LINE
Ch 3 page 18 Ch 3 page 19
DRIVE LINE
1
2
3
2
1
4

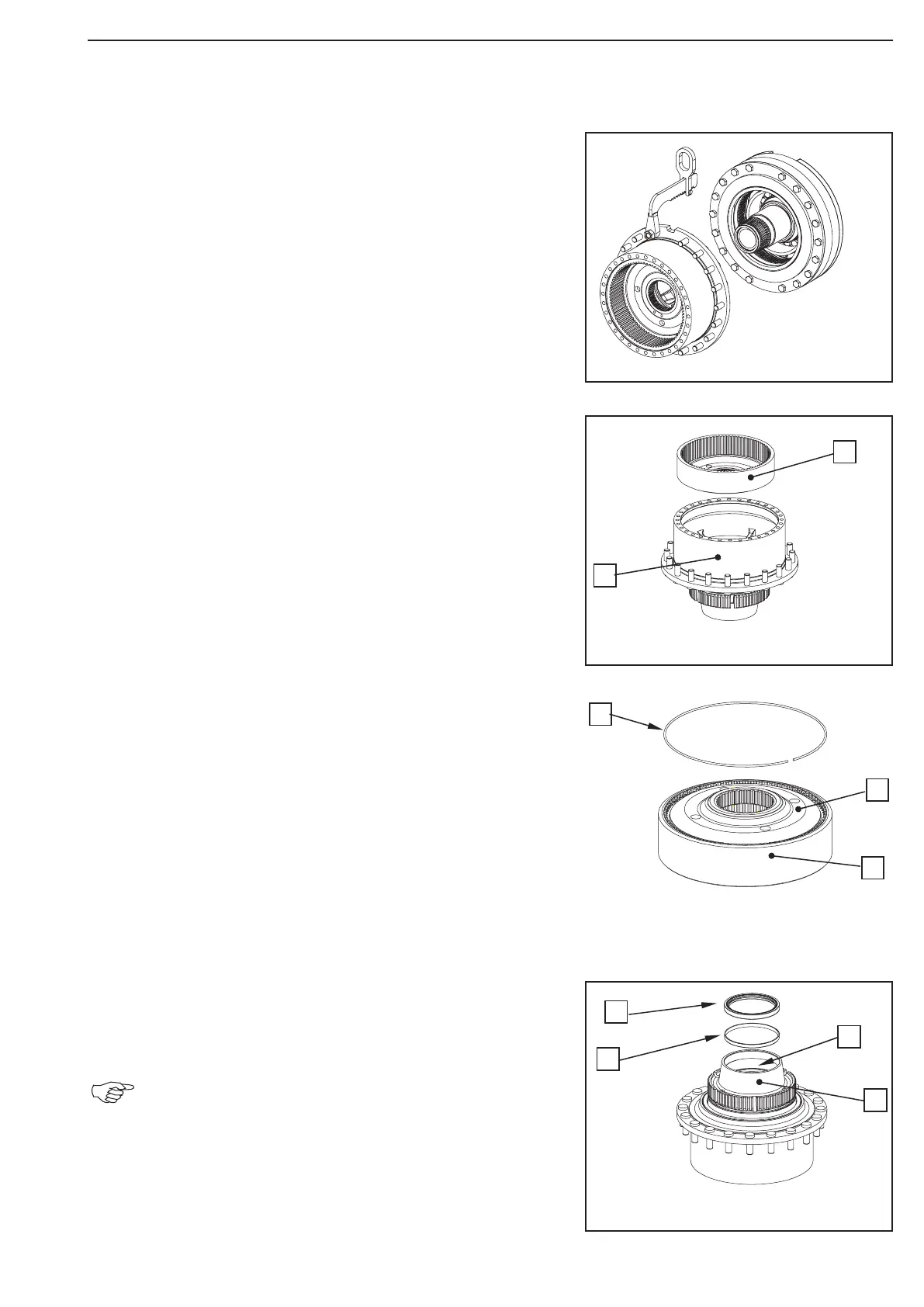

Remove the hub.
Remove the ring gear (1) from the hub (2).
Unsnap circlip (1) and separate the ring gear carrier (2) from
ring gear (3).
By means of lever action press shaft seal (1) out of the hub
bore (3) and remove ring (2).
Expel both bearing outer rings (4) from the bearing
bores of the hub (3), if required.
(S) Pry bar set 505762
Figure 21
Figure 23
Figure 22
Figure 24
3
1
2
