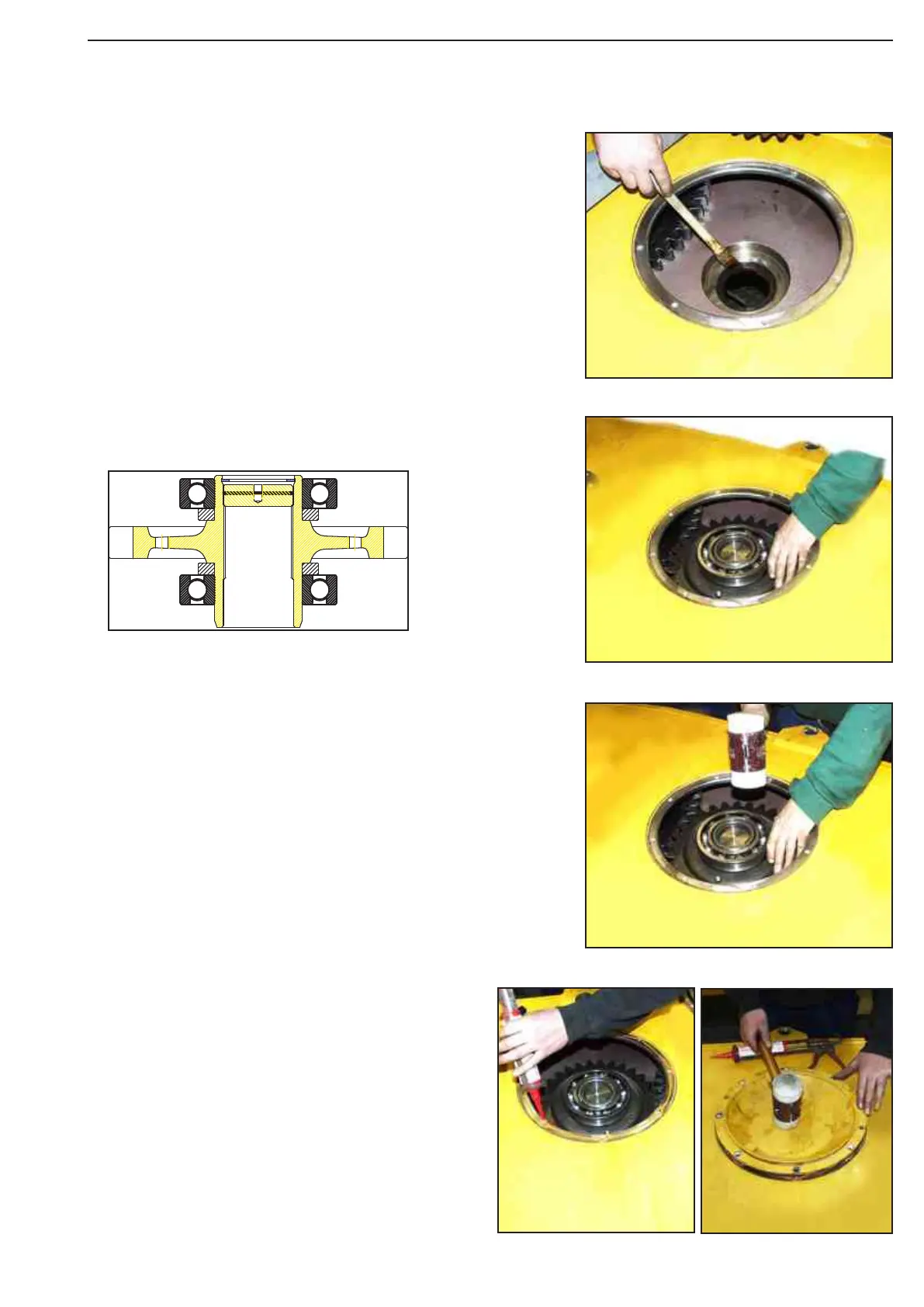

DRIVE LINE
Grease the sealing ring
Assemble the pinion drive.
Use plastic hammer to assemble the pinion drive into the
tandem housing.
Assemble the cover.
Apply sealing compound Loctite 574 to the flange
Use plastic hammer to knock the cover gradually
down.
M10x25 ISO4017-8.8 fzb
Torque limit: 47 Nm
Figure 581
Figure 580
Figure 578
Figure 582
Figure 579
