SHOP MANUAL
DRIVE LINE
Ch 3 page 114 Ch 3 page 115
DRIVE LINE

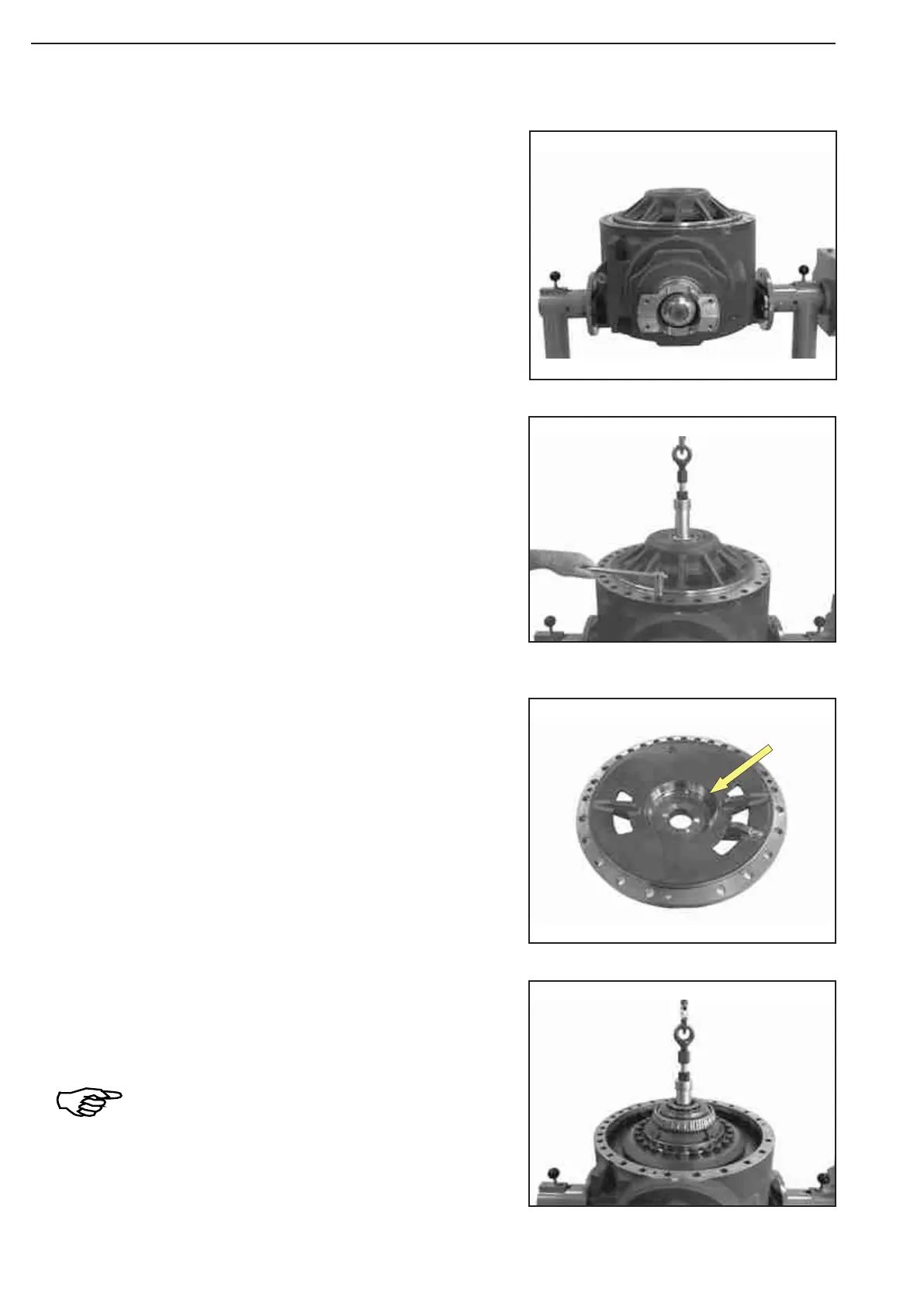

Fix axle drive housing to assembly truck.
Assembly truck: 504213
Fixtures (2x) 532217
Loosen cylindrical screws and remove the releasing
bearing housing with a lifting device.
(S) Inner extractor 532218
(S) Eye nut 532220
Pull the bearing outer ring (see arrow) from the bearing
hole and remove the shim behind.
Lift the differential with lifting device out of the axle
drive housing.
(S) Inner extractor 532218
(S) Eye nut 532220
Disassembly of differential is described as of
page 118.
Disassembly
Axle drive housing
Only on model 8X0660 --->
Figure 326
Figure 328
Figure 327
Figure 325
