DRIVE LINE
Ch 3 page 110 Ch 3 page 111
DRIVE LINE

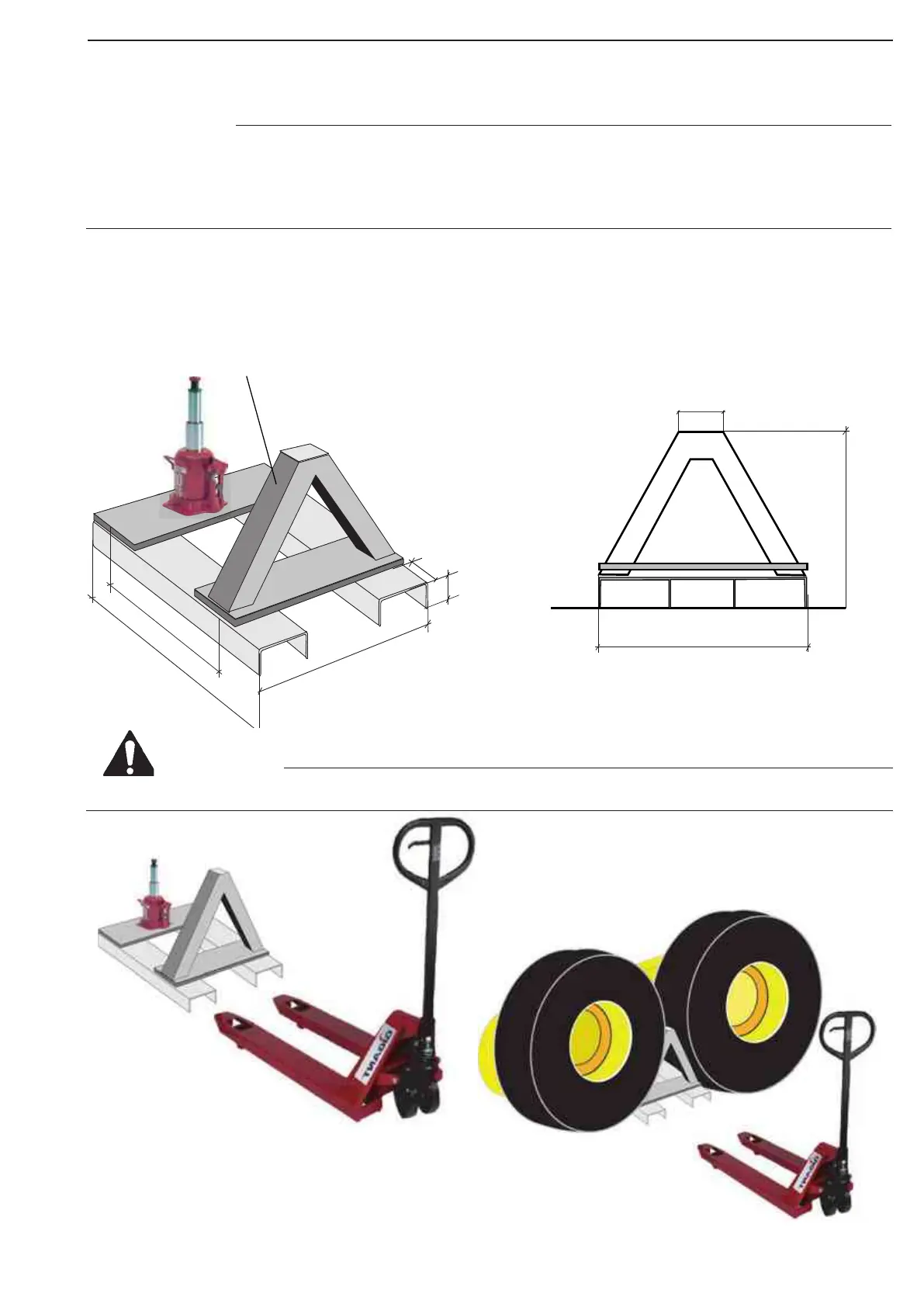

If it is not possible to lift the rear frame off the tandem unit, the tandem unit could be pulled off the rear
axle housing by using the arrangement as shown on the gure. Place the arrangement between the
wheels. Adjust the arrangement and the jack according the angle of the tandem housing. Pull the tandem
unit off the rear axle housing.
The tandem unit is approx 10,5 ton. (Including axle housing and oil)
One tandem housing with wheel is approx 4,8 ton
One tandem housing without wheel is approx 3,1 ton
Be aware of personal injury.
160
#100x100x6
750
750
650
900
100
150
650
NOTE
WARNING
Figure 313
Figure 315
Figure 314
