SHOP MANUAL
DRIVE LINE
Ch 3 page 20 Ch 3 page 21
DRIVE LINE
1
2
2
3
1
1
2

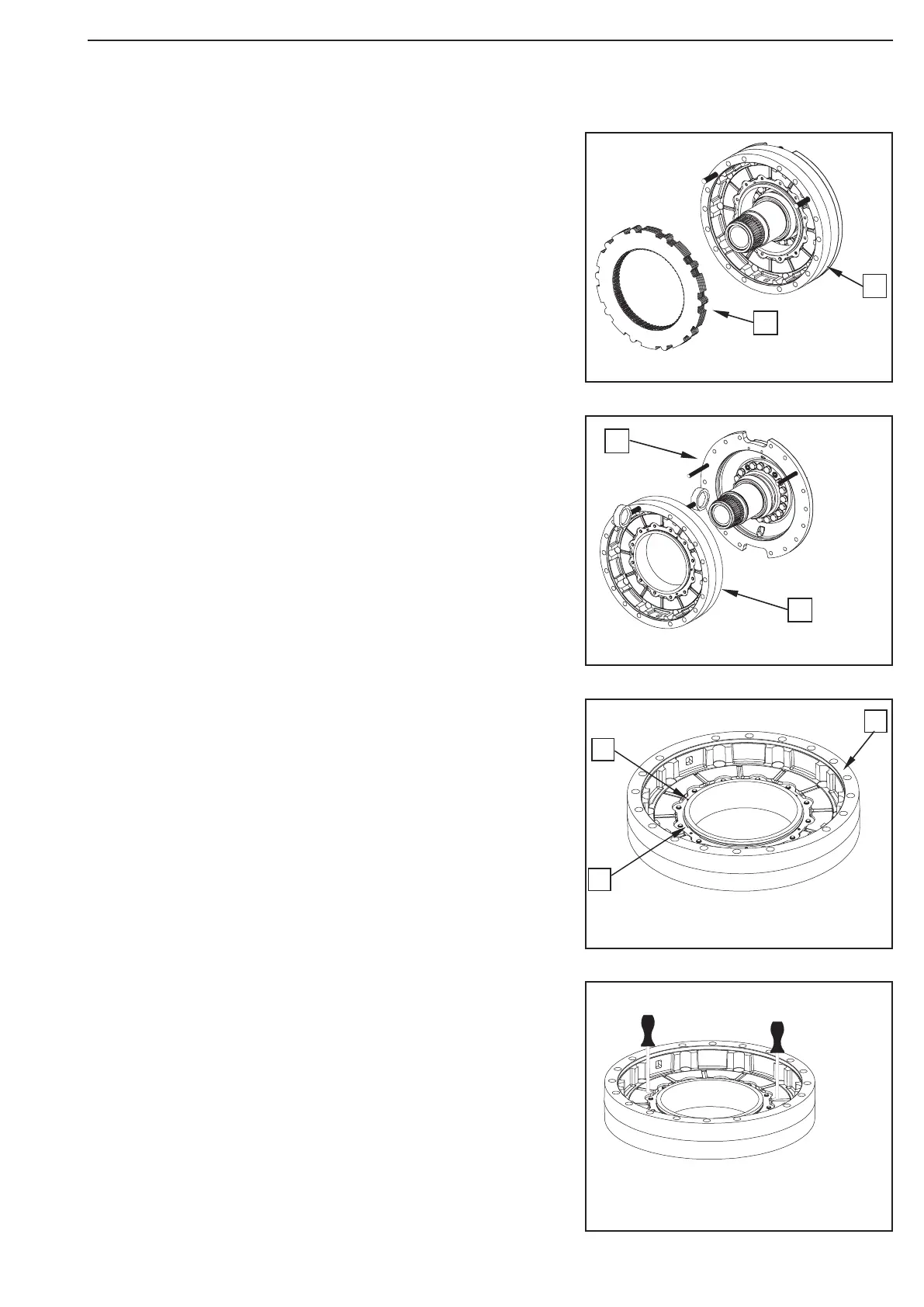

Remove disc set (1) from the brake housing (2).
By means of the lifting tackle separate the brake housing (1)
from the brake carrier (2).
(S) Eyebolts assortment 504182
(S) Lifting chain 504198
Drive back the slotted pins (3)
to be flush and unsnap the circlip (1)
from piston (2).
Press out the support shim by means of the automatic piston
adjusting from the piston.
(S) Resetting device 504210
Figure 30
Figure 29
Figure 32
Figure 31
