SHOP MANUAL
DRIVE LINE
Ch 3 page 22 Ch 3 page 23
DRIVE LINE
1
2
1
3
2
1

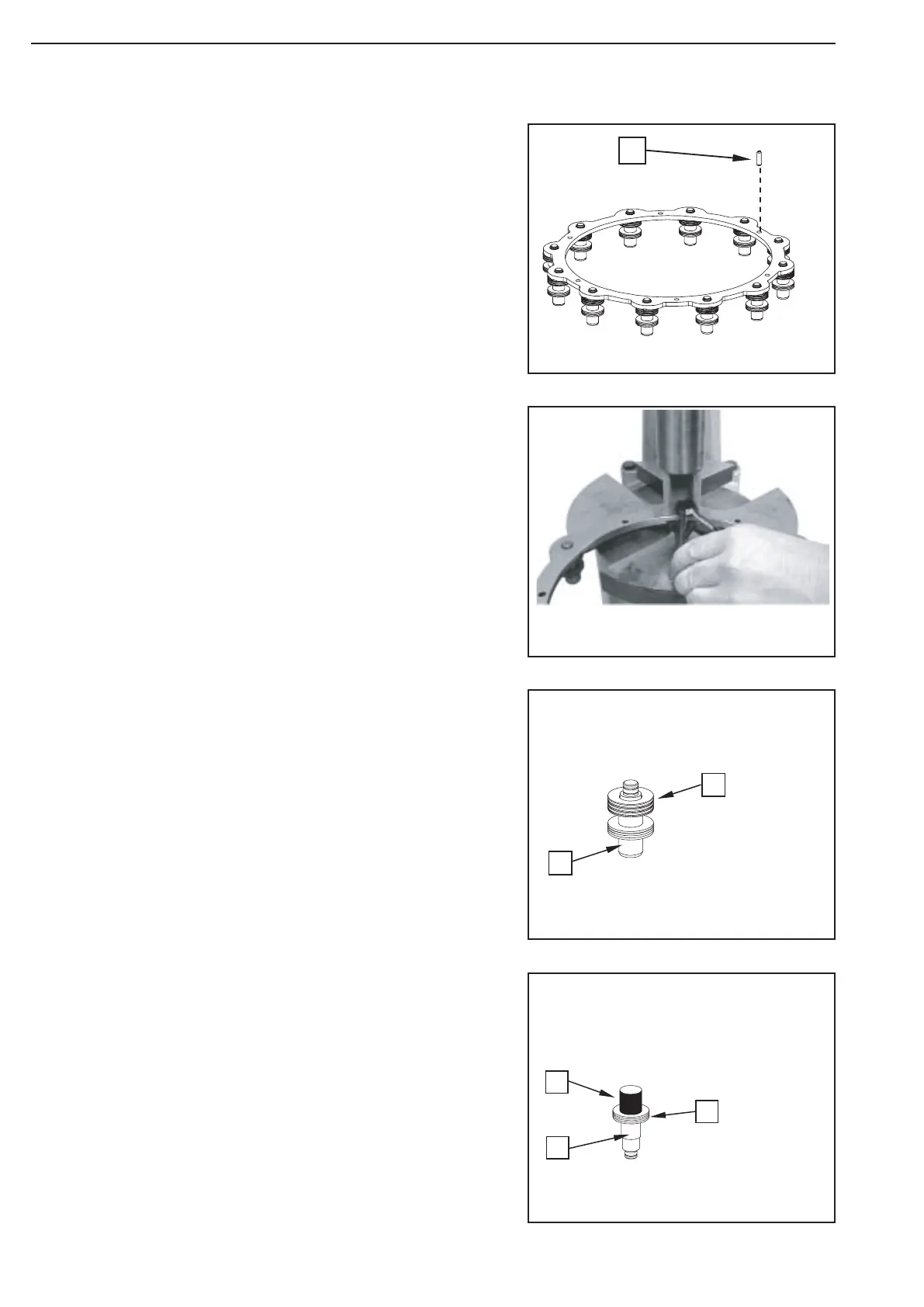

Expel the slotted pins (1) from the support shim.
Preload the cup springs by means of a press and
unsnap the circlips.
(S) Clamping pliers 514669
(S) Assembly fixture 514662
Pull pin (1) out of support shim and
remove the released cup springs (2).
Press the gripping rings (1)
with sleeve (2)
from the pin (3).
Figure 33
Figure 34
Figure 35
Figure 36
