SHOP MANUAL
DRIVE LINE
Ch 3 page 150 Ch 3 page 151
DRIVE LINE
10
13
36-37 34
Disassemble the disc flange.
Unscrew 20 x Screw M16x50 ISO4017-10.9
(36 - 37)
Remove the disk flange (34)
Tightening torque 280 Nm.
Carefully lift the gear wheel (9), scoop ring (13) and
the disc carrier (10) from the hub.
Note:
Heavy objects, use lifting device.
Separate the disc carrier (10) from the gear wheel
(If the part have to be changed)
16 x Screw M16x50 ISO4017-10.9
Tightening torque 280 Nm.
Separate the axle and the hub by pressing the axle out
of the hub
9

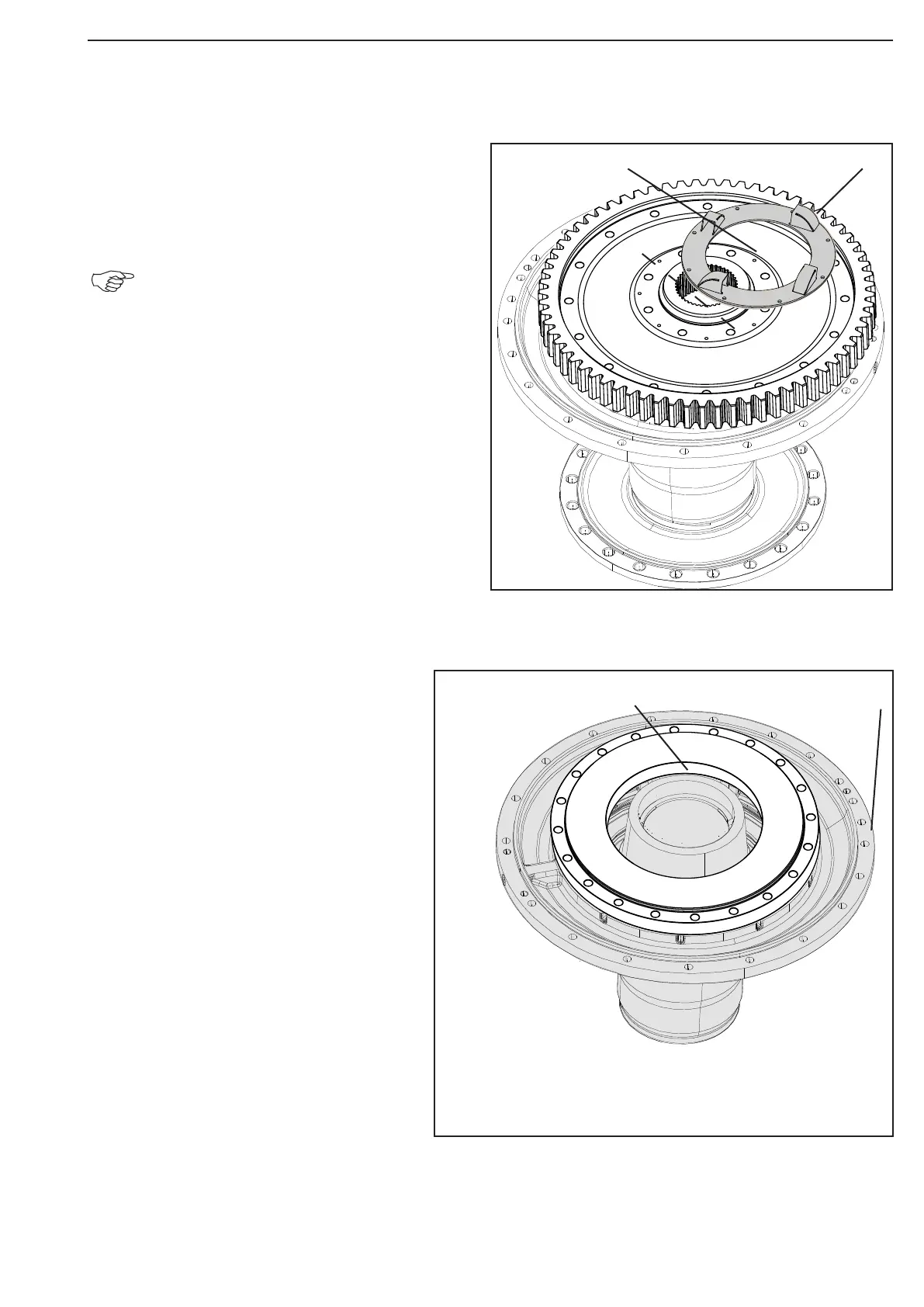

Figure 455
Figure 454
