Engine
SHOP MANUAL
Ch 1 page 13

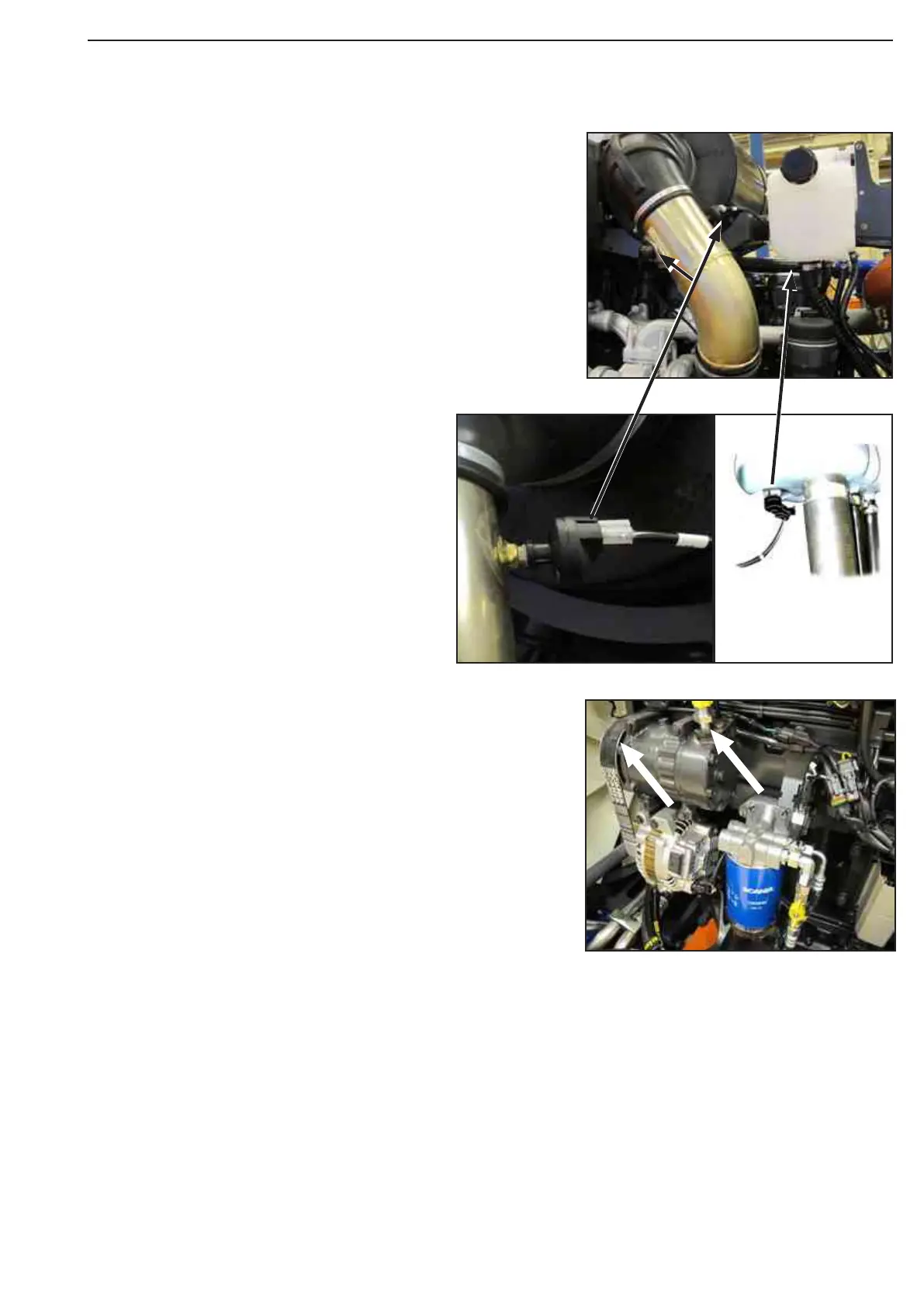

Disasssemble the cable to the Air filter sensor and cable to the
sensor for the cooling water expansion tank. The unit will have two
sensors on T4i/stage 3B (black arrows).
Slack the transmission belt.
Detach the Air Cond. compressor with the hoses on, from the
engine. Check that all of the clamps are undone.
Place the Air condition compressor on the left side while the en-
gine is dismounted.
Figure 9
Figure 11
Figure 10
