SHOP MANUAL
Engine
Ch 1 page 16
Front- Left and right hand side, disassemble screw on the engine
mounting bracket.
Assembly torque: 560 Nm (M20 10.9)
Use lock washer on bolts when reassembling
2
1
Disassemble the hose clamp bracket.
2
Unscrew the engine bracket bolt left and right hand side.
Assembly torque: 560 Nm (M20 10.9)
Remove clamps and dissasemble hoses connected to hydraulic
block (red arrows)
1
2
Drive shaft
Remove safety archer.
Remove driveshaft between transmission and engine coupling,
1 Assembly torque: 114 Nm
2 Assembly torque: 141 Nm
3 Assembly torque: 141 Nm
Disassemble front brake oil cooler hose from
the brake cooler circulate pump.

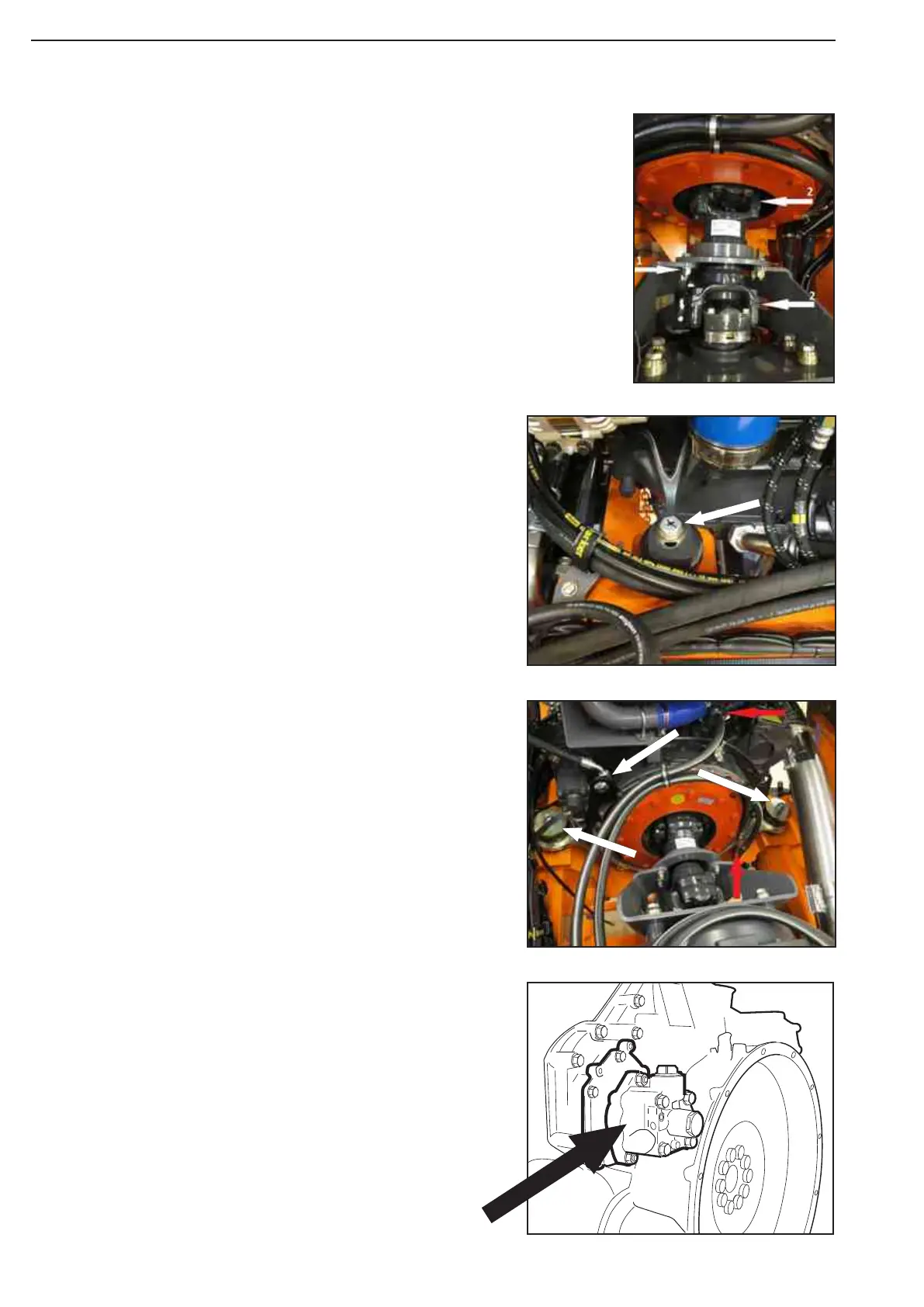

Figure 20
Figure 21
Figure 22
Figure 23
