SHOP MANUAL
TRANSMISSION
Ch 2 page 30 Ch 2 page 31
TRANSMISSION

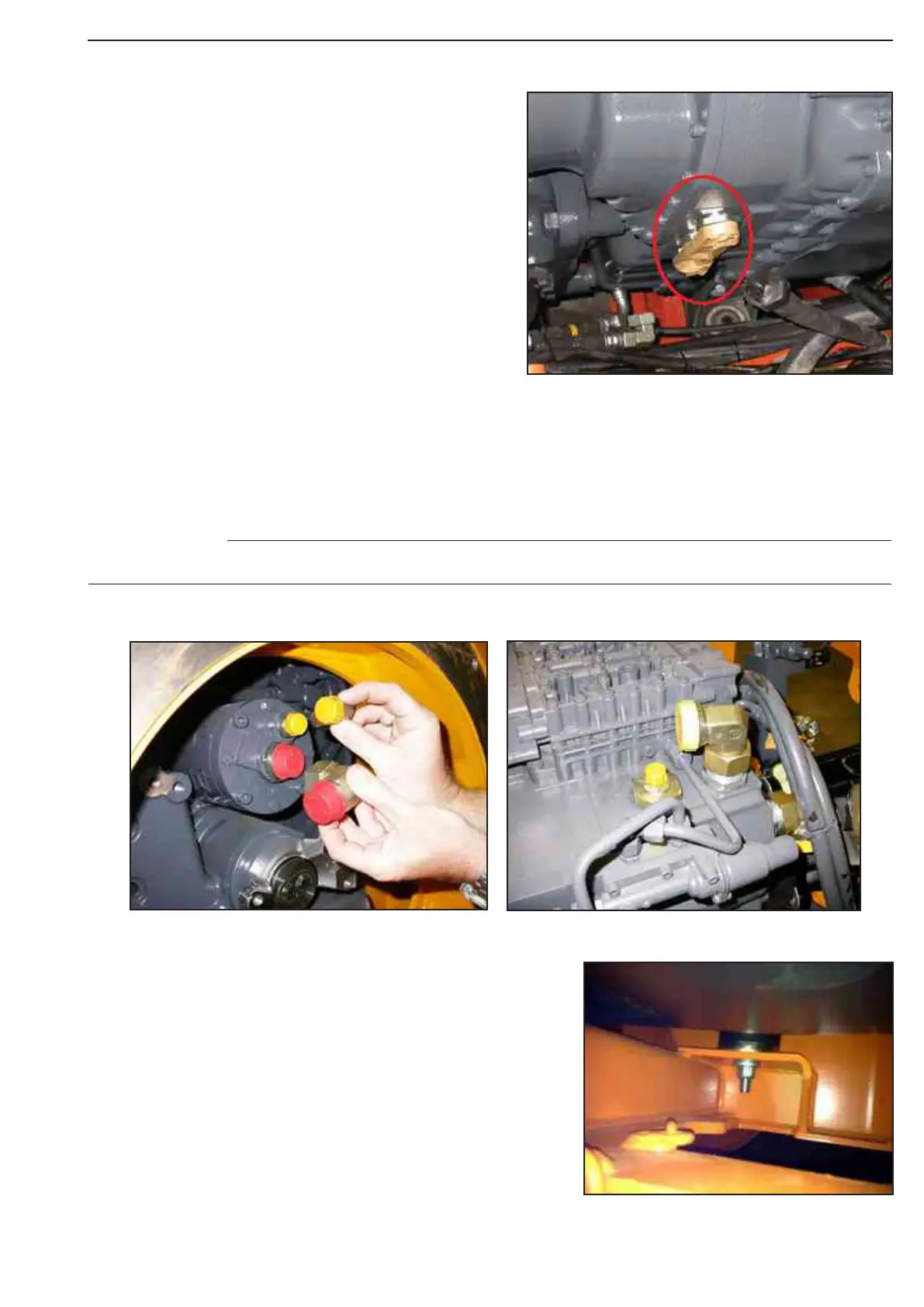

Disconnect both of the hoses and the L-nipple from the emergency steering pump from the articulated hinge side.
Protect the hydraulic nipple on the pump with plastic plug or similar.
Remember to mark the hoses.
Realease all the hydraulic hoses connected to the transmis-
sion.
Realease all of the wiring on the electrical points.
(ground cabel and the electrical connections have to be dis-
connected.)
Disassemble transmission attachment LH, RH and front.
If shim are assembled, use the shims at the same place when as-
semblying.
Hold with combonation wrench 36 mm and from the lower side, trough
the opening the bottom guard use standard tool as shown at the picture.
Assembly:
Torque limit: 960 Nm
NOTE
Figure 44 Figure 45
Figure 46
Figure 43
