SHOP MANUAL
TRANSMISSION
Ch 2 page 32 Ch 2 page 33
TRANSMISSION
Disassemble the front transmission bracket attachment.
If shim are assembled, use the shims at the same place when as-
semblying.
Use standard tool as shown on the picture below or similar.
Assembly:
Torque limit 560 Nm
If necessary to avoid it to get stuck, lose the main valve bracket, exhaust
pipe fig.49 (T2 solution) and front bracket connecting transmission to
the frame fig.50
Dissasemble the bratchet by removing the 04 screws connecting the
bratchet to the transmission.
Dismount the axle catcher bow.
Dismount converter prop. shaft.
Front screw: M12x50 ISO4014-10.9 EL
Rear screw: ½” UNF x2” NS 965--8.8

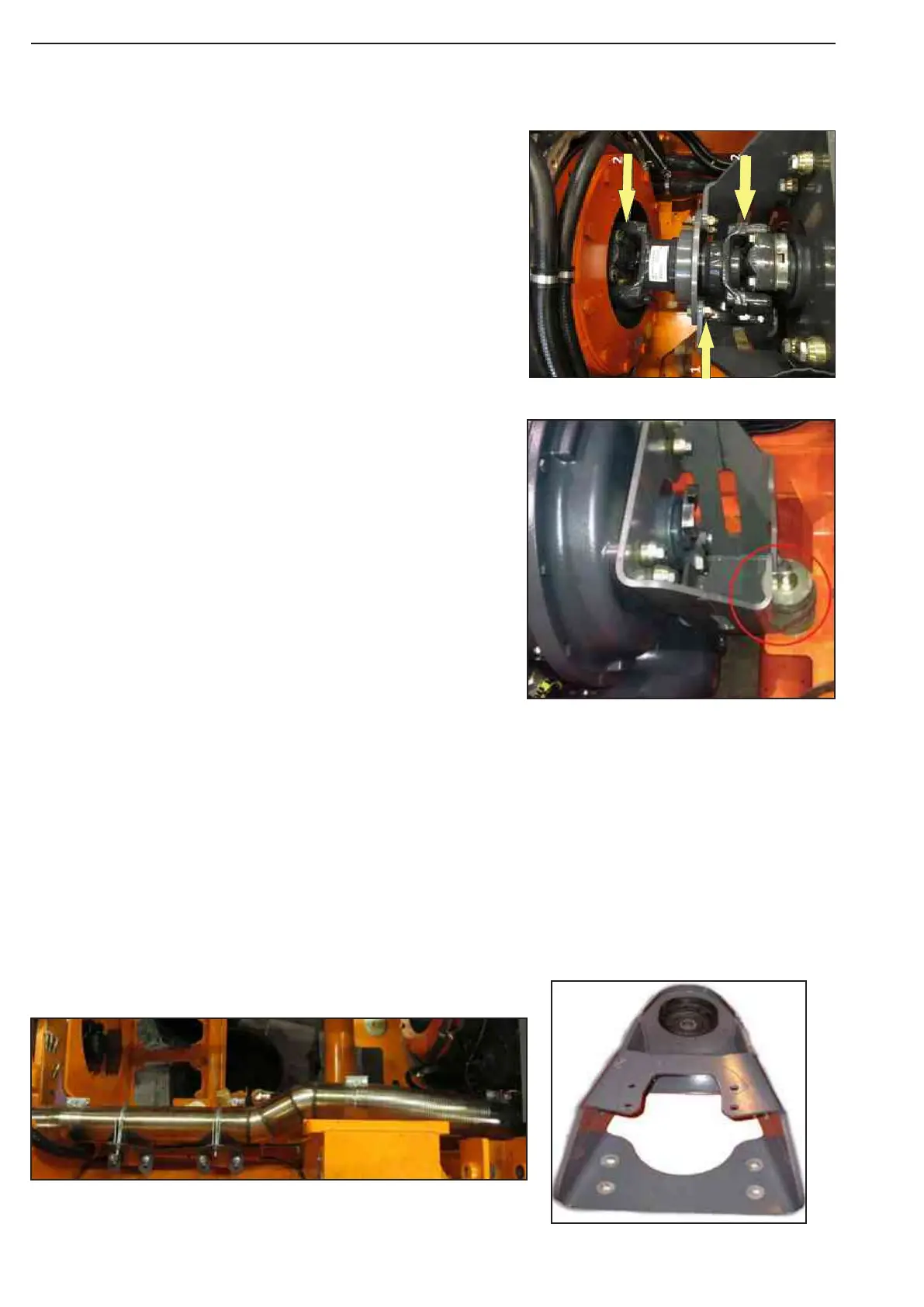

Figure 47
Figure 48
Figure 49
Figure 50
