Engine
SHOP MANUAL
Ch 1 page 161

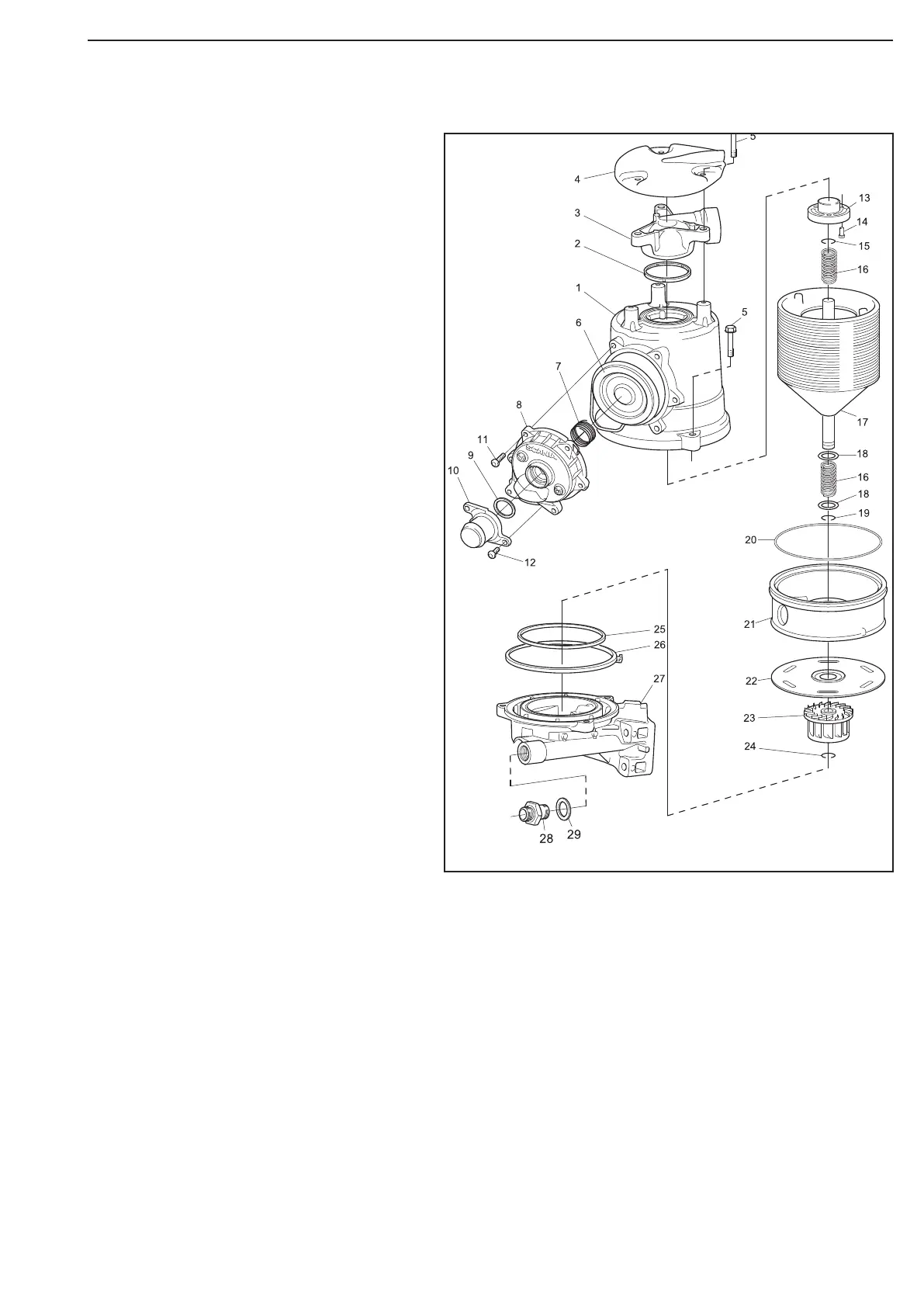

1 Oil mist separator housing
(different version for closed
crankcase ventilation)
2 O-ring
3 Nipple
4 Heat shield
5 Screw
6 Diaphragm (not used on oil mist
separator for closed crankcase
ventilation)
7 Diaphragm spring (not used on
oil mist separator for closed
crankcase ventilation)
8 Cover (different version for
closed crankcase ventilation)
9 O-ring
10 Nipple (not used on oil mist
separator for closed crankcase
ventilation)
11 Screw
12 Screw (not used on oil mist
separator for closed crankcase
ventilation)
13 Upper bearing retainer
14 Screw
15 Retaining ring
16 Spring
17 Separator
18 Washer
19 Retaining ring
20 O-ring
21 Insert
22 Lower bearing retainer
23 Turbine
24 Retaining ring
25 O-ring
26 O-ring
27 Turbine housing
28 Washer
29 Straight nipple
1. Fit the rotor discs (17) on the rotor shaft and fit the
retaining ring (19).
2. Fit the rotor in the insert (21).
3. Fit the turbine (23) on the rotor shaft and press on
the retaining ring (24).
4. Fit a new O-ring (20).
5. Press the rotor assembly down into the oil mist sepa
rator housing (1).
6. Fit the diaphragm (6) and diaphragm spring (7).
7. Fit the diaphragm cover (8).
Figure 315
