Engine
SHOP MANUAL
Ch 1 page 173

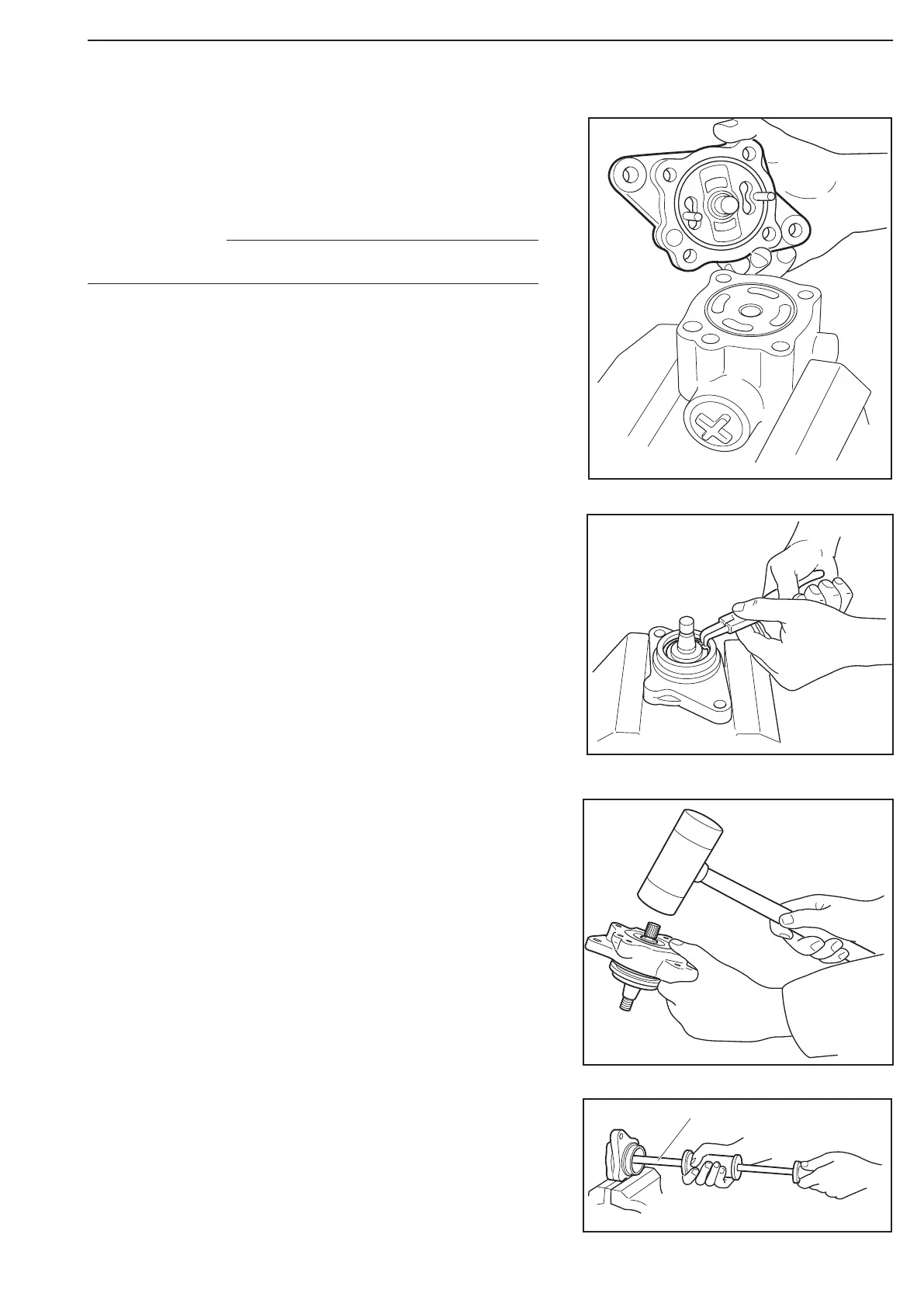

4. Remove the plug 6, compression spring 8 and control
valve 9.
The plug is spring loaded and might y off.
5. Remove the bolts 2 holding together the pump housing
and end plate. Remove the end plate.
6. Remove the wear plate 14 and the rotor housing 11 with
rotor 12 and vanes 13.
7. Remove the pressure plate 10 and guide pins 16.
8. Remove the retaining ring 23 from the end plate 18.
9. Tap out the shaft with a rubber mallet.
512256
10. Remove the spacing ring 19.
Remove the sealing ring 20 using tool 512256.
NOTE
Figure 338
Figure 339
Figure 340
Figure 341
