SHOP MANUAL
Engine
Ch 1 page 194
The seal ring is removed
The new seal ring is pressed in
A = 13,3 - 13,7 mm
The clearance is measured
4. Prise off the seal using two screwdrivers and
separator plates.
5. Apply sealing agent (501350) to the inside
and outside (brass sleeve) of the sealing ring.
Make sure that no sealing agent gets onto
other sealing surfaces.
Important!
Sealing agent (501350) should be used sparingly. There is a
risk of the sliding surfaces being glued together.
6. Press in the new sealing ring with drift
501351 until the edge of the brass sleeve abuts
against the pump housing. Keep it under
pressure for about 10 seconds.
7. Press on the impeller using drift 501351 until
the clearance between the gasket surface of
the pump housing and the end of the impeller
shaft is 13.3 - 13.7 mm.
Important!
The shaft must not change position in the pump housing as
there is a danger that the sealing ring would then also
change its position.
Puller for pulley 501348
Drift for pulley 501349
Puller for impeller 501354
Drift for pressing in
sealing ring and for impeller 501351
Do not damage the pump housing gasket surface.
NOTE
It is very important that tool 501351 is used. It is de-
signed to correctly preload the spring which holds the
seal.
NOTE

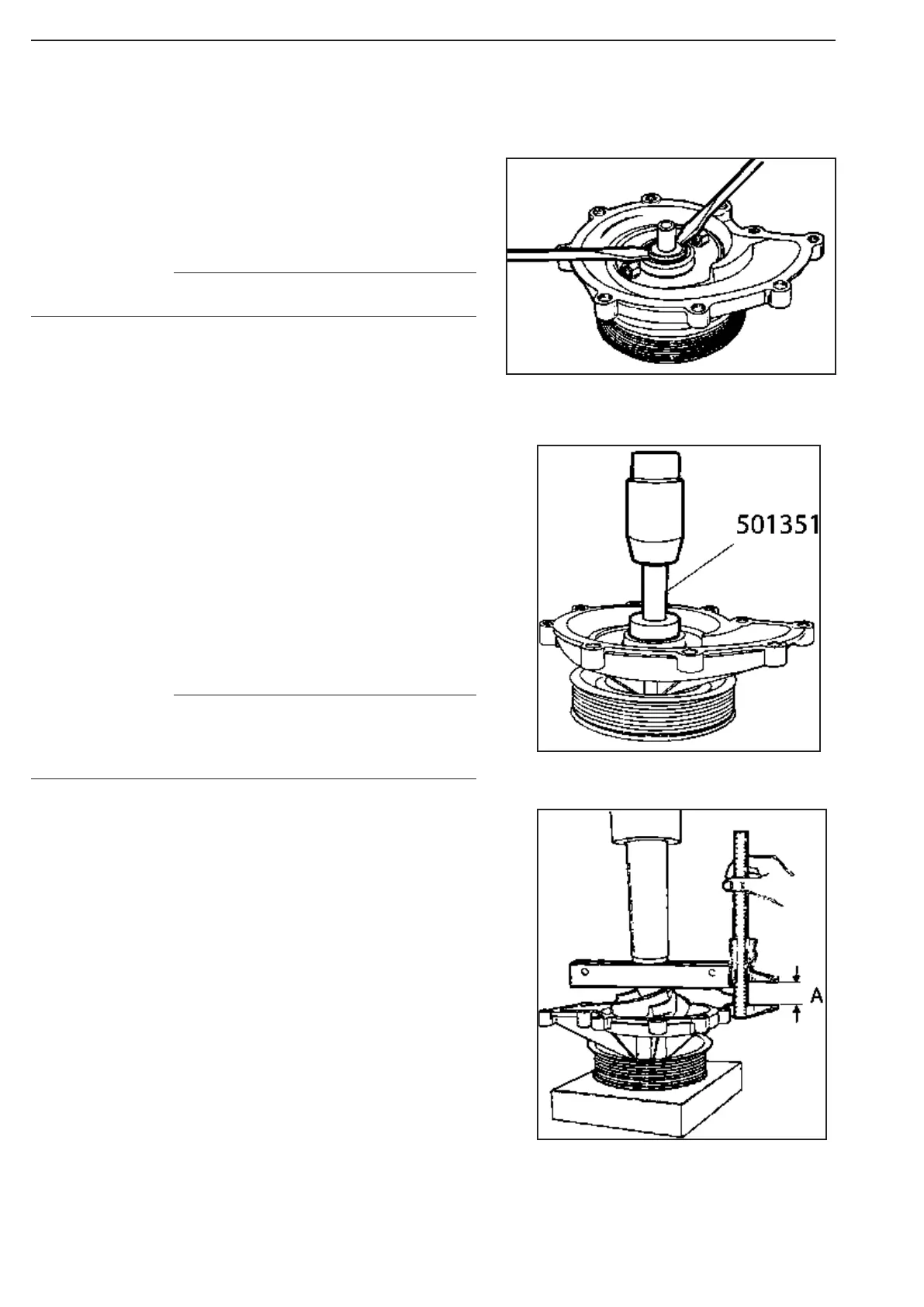

Figure 378
