SHOP MANUAL
Engine
Ch 1 page 222

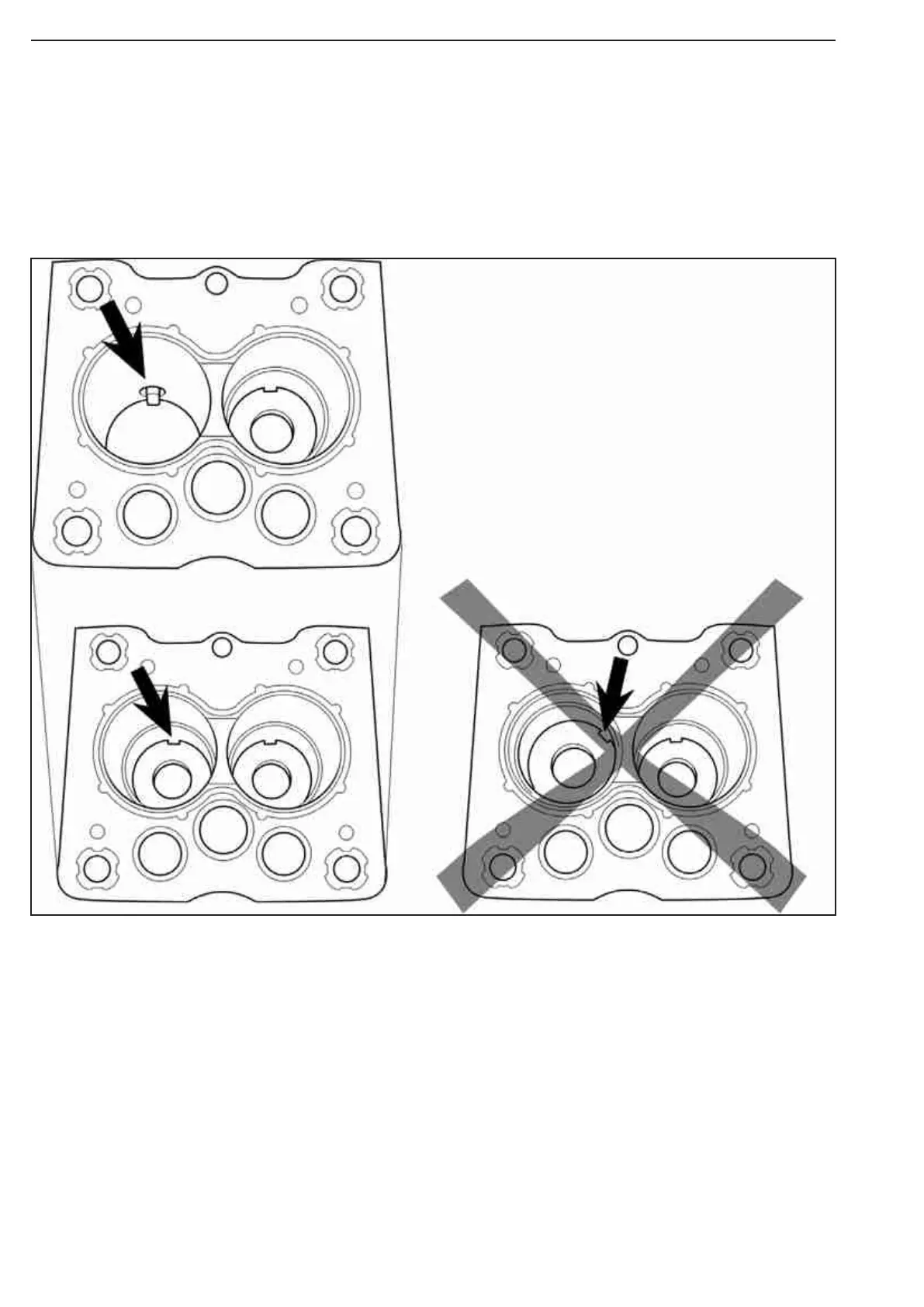

11 Clean the pump surface that faces against the cylinder head. Check that the guide pins under the roller
tappets are straight and that the roller tappets are correctly positioned so that they go down completely
in their seats; see illustration (figure 386). Screw the cylinder head bolts in alternately. Tightening torque 68 Nm.
12 Fit the pipes (3, 4 and 5). Use new washers. Tightening torque for the banjo unions - 55 Nm.
13 Fit a new high pressure pipe (2). Tightening torque - 38 Nm.
14 Fit the high pressure pipe brackets. Tightening torque 22 Nm.
15 Fit the cable connection.
16 Test start and delete the fault codes.
Figure 390
