SHOP MANUAL
DRIVE LINE
Ch 3 page 84 Ch 3 page 85
DRIVE LINE

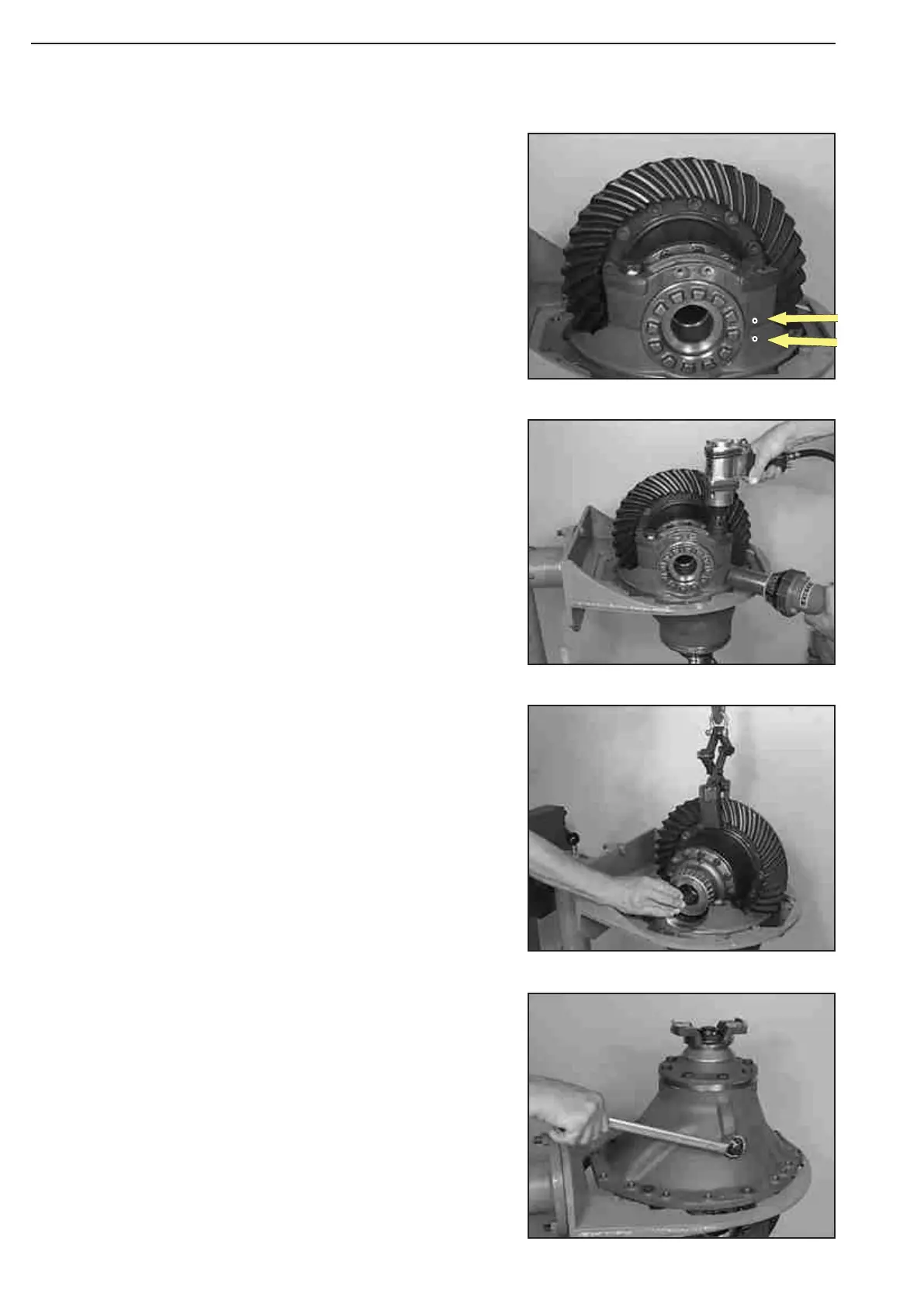

Mark installation position of the bearing brackets with the axle
drive housing, see Arrows !
Loosen lock nuts and remove set screws.
Pay attention to the released sliding pad !
Separate the differential from the axle drive housing, using lifting
device.
(S) Gripper tongs 505155
Loosen hex. head screws and remove both bearing brackets,
adjusting nuts and bearing outer races.
Hex. head screws are secured with Loctite !
Heat axle drive housing in the area of the tapped holes !
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Figure 226
Figure 225
Figure 224
Figure 223
