SHOP MANUAL
DRIVE LINE
Ch 3 page 156 Ch 3 page 157
DRIVE LINE

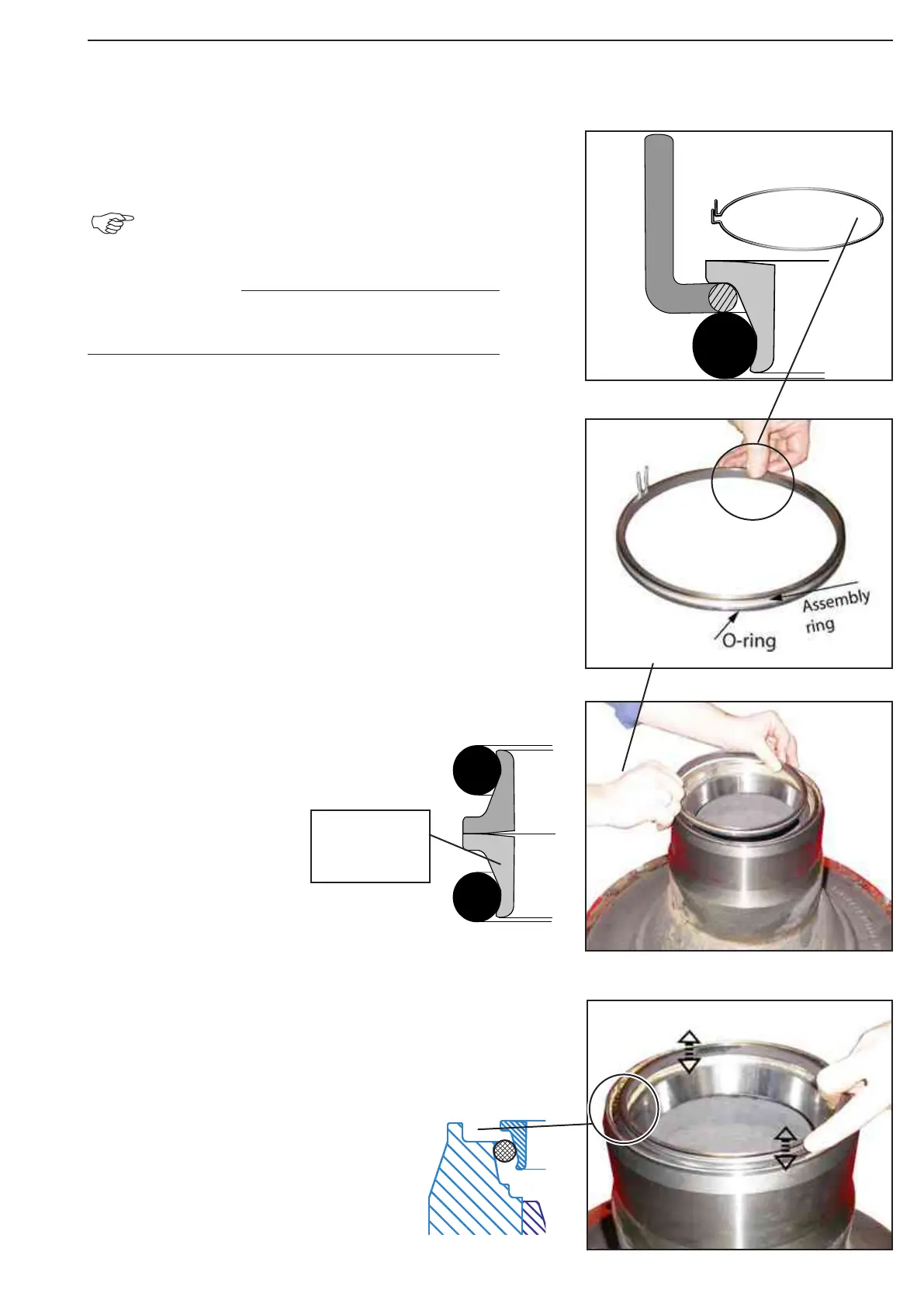

Assemble the slide ring seal
When assembly the slide ring seal it is important to clean the
surface of the connection well.
Assemble the guide ring between the flange and O-ring.
Also the ring is make of very hard iron (cast iron)
and can easy be broken.
O-ring support assembly tool 520361
Oil the surfaces on the hub housing
Press together the guide ring and press by hand
the slide ring into the hub.
Part 2
Assemble to
the hub
By hand press the slide ring seal into the hub.
Finaly check on the movement, by hand check on that the ring can
be moving springy, approx 2 mm.
The rings are make together, dont mix the ring from
others ring set.
Part 1
Assemble to the
wheel axle
NOTE
Figure 473
Figure 471
Figure 470
Figure 472
