SHOP MANUAL
DRIVE LINE
Ch 3 page 172 Ch 3 page 173
DRIVE LINE

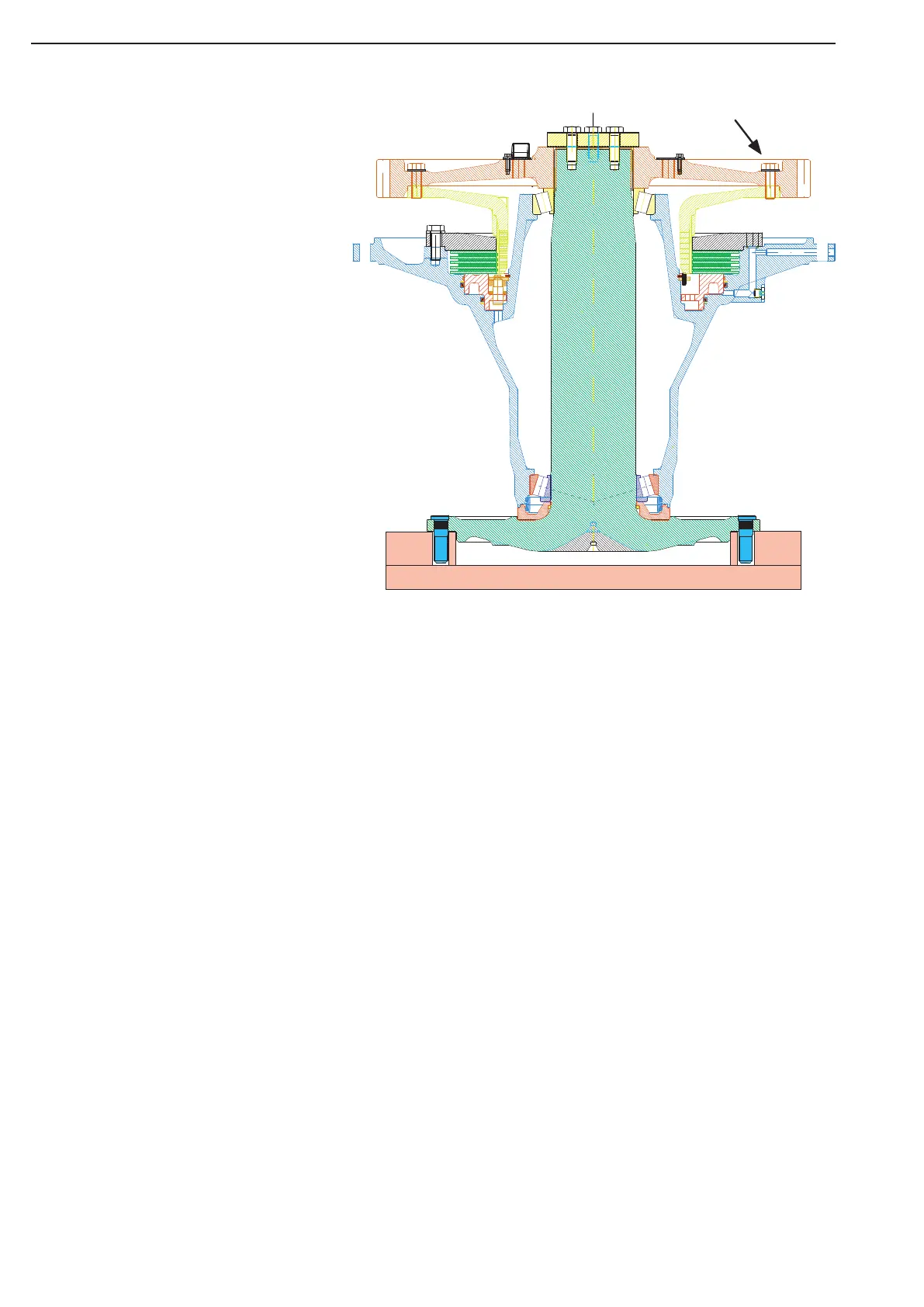

Connect the gear wheel and the car-
rier.
Washer 17x30x3 NS-ISO 7089 300HV
Screw M16x50 ISO4017-10.9 EL
Apply locking liquid: Tree Bond 1374
Tightening torque 280 Nm.
Figure 512
