SHOP MANUAL
DRIVE LINE

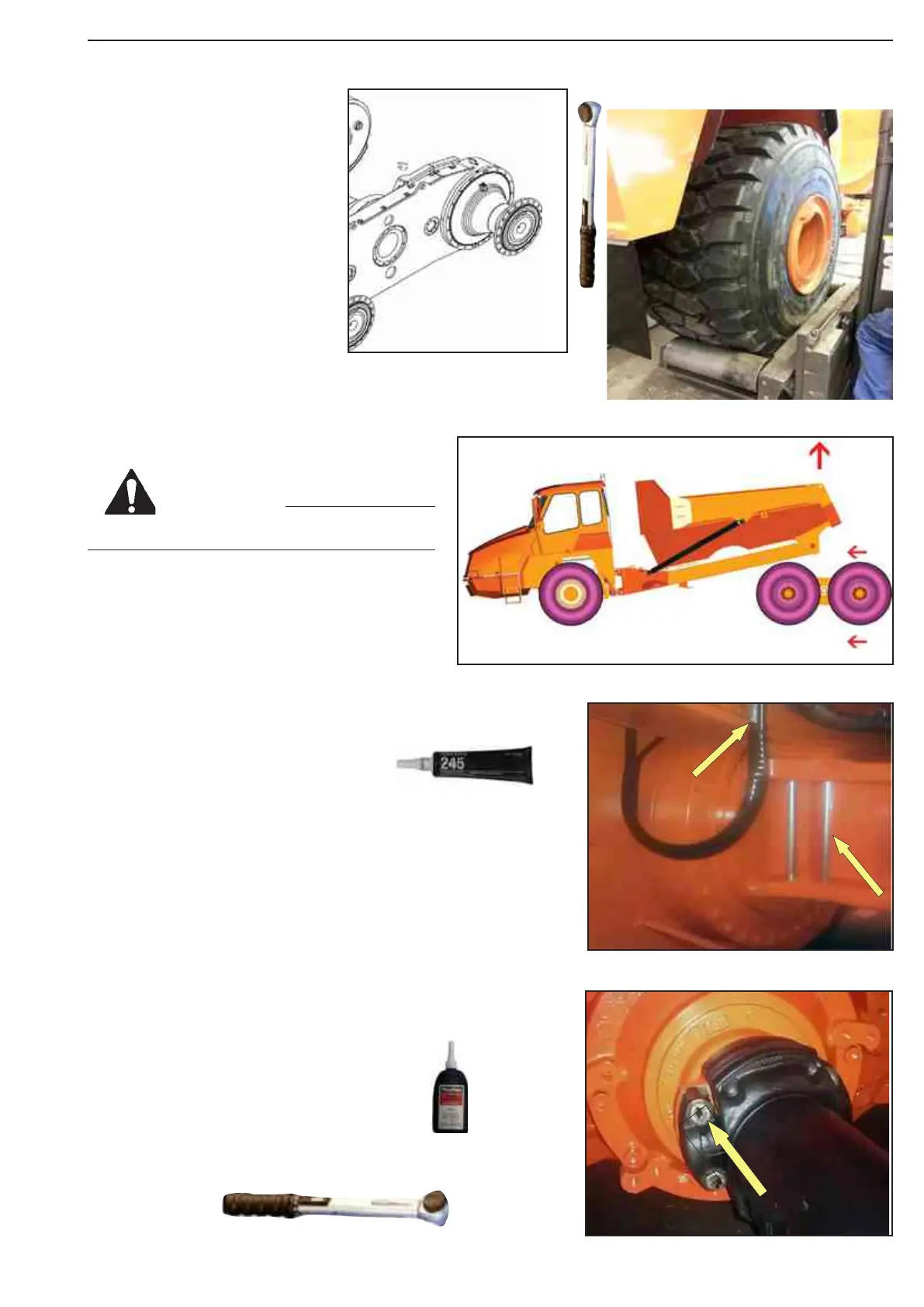

Ch 3 page 186 Ch 3 page 187
DRIVE LINE
Assemble the propeller shaft to flange
of the differential.
Apply locking liquid: Tree Bond 1374
Torque limit: 136 Nm
Assemble the wheel.
20 pcs Width across flat: 30mm
Torque limit: 450 Nm.
1 Assemble axle housing screws (4 in each side).
Screw M24x380 DIN931-10.9
Apply locking liquid: Loctite 245
Torque limit: 960 Nm
2 Assemble 2 brake hoses from Tandem housing
LHS and RHS
Assemble 2 lubrication hose from Tandem housing
LHS and RHS
Be aware of personal injury.
Assemble the tandem housing to the rear frame.
Lift the rear wagon with the crane.
Move the tandemhousing unit under the rear frame and connect
the frame and axle housing.
1
2
WARNING
Figure 543
Figure 544
Figure 546
Figure 545
