LUBRICATION SYSTEM
Ch 4 Page 6 Ch 4 Page 7
LUBRICATION SYSTEM

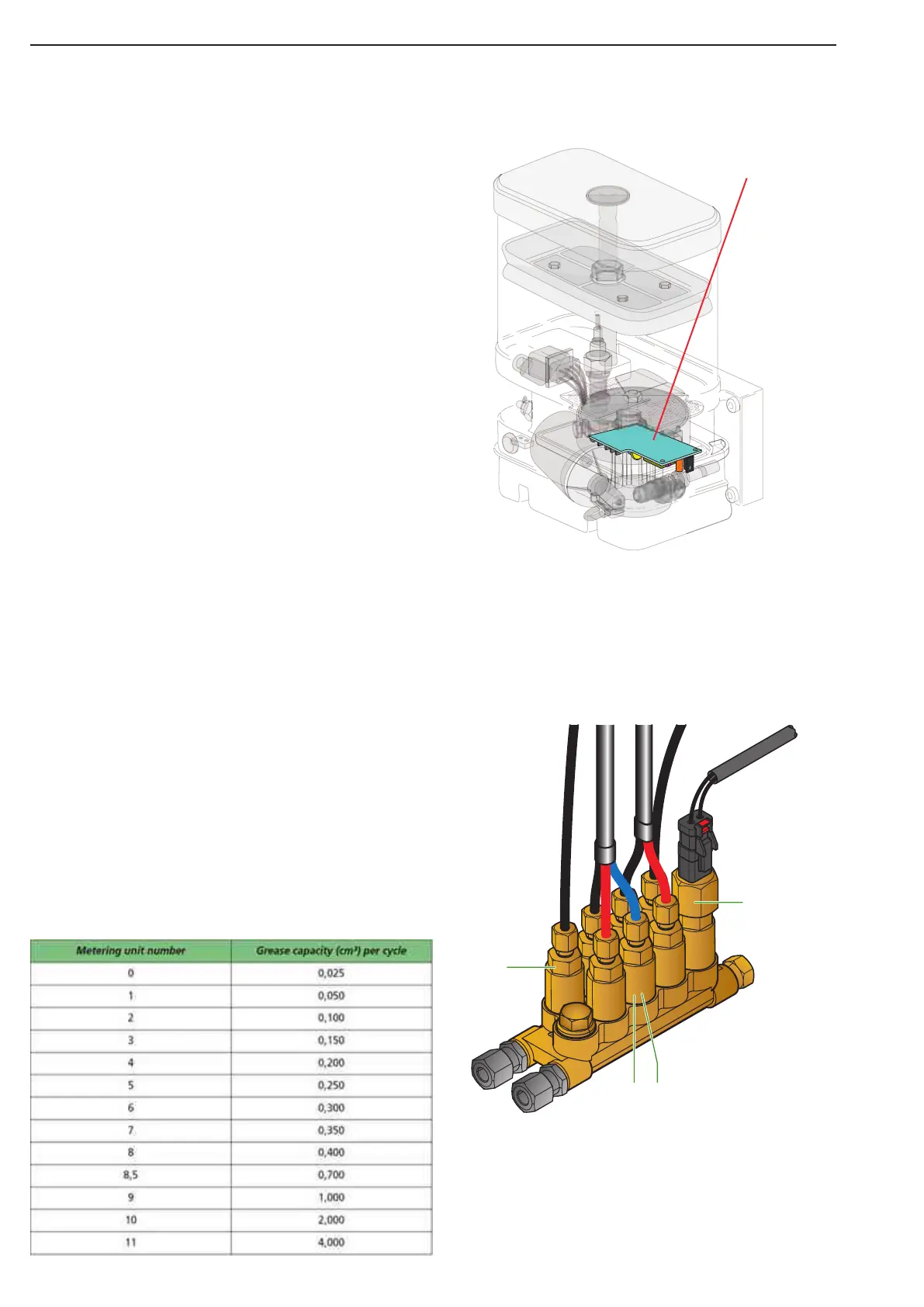

Groeneveld Twin internal wiring
Metering Units
Various types of metering units with the twin greas-
ing system are available, each with a different
grease output. Each greasing point can receive the
correct dose of grease per greasing cycle by a care-
ful choice of the type of metering unit. The metering
units are mounted on a brass or stainless steel distri-
bution block per group.
The metering units and distribution blocks are made
of brass or stainless steel. The various metering
units are distinguished from each other using num-
bers.
Because of their closed construction the metering
units are execeptionally well suitable for use in dirty
and dusty enviroment.
The table below is an overview of the various meter-
ing unit numbers and their grease capacity (see the
overview Lubrication Points on DA series on the next
page).
2
4
4
8
712.01
43-07
100 bar
4
3
1 2
The electronic control unit steers and controls the
course of the greasing cycles. All system and pro-
gram parameters are stored in it.
The control unit processes mal-function reports,
gives possible alarms reports and automatically
records a log. All relevant incidents will be stored in
the log.
All data in the control unit always be retained, even
when the power is shut off or when the system is
turned off.
To view the log an Uni or PC-GINA is needed.
Control unit
Figure 3
Figure 4
