SHOP MANUAL
Ch 5 page 59
HYDRAULIC SYSTEM
Controls
A Inflation valve
B Bleed valve

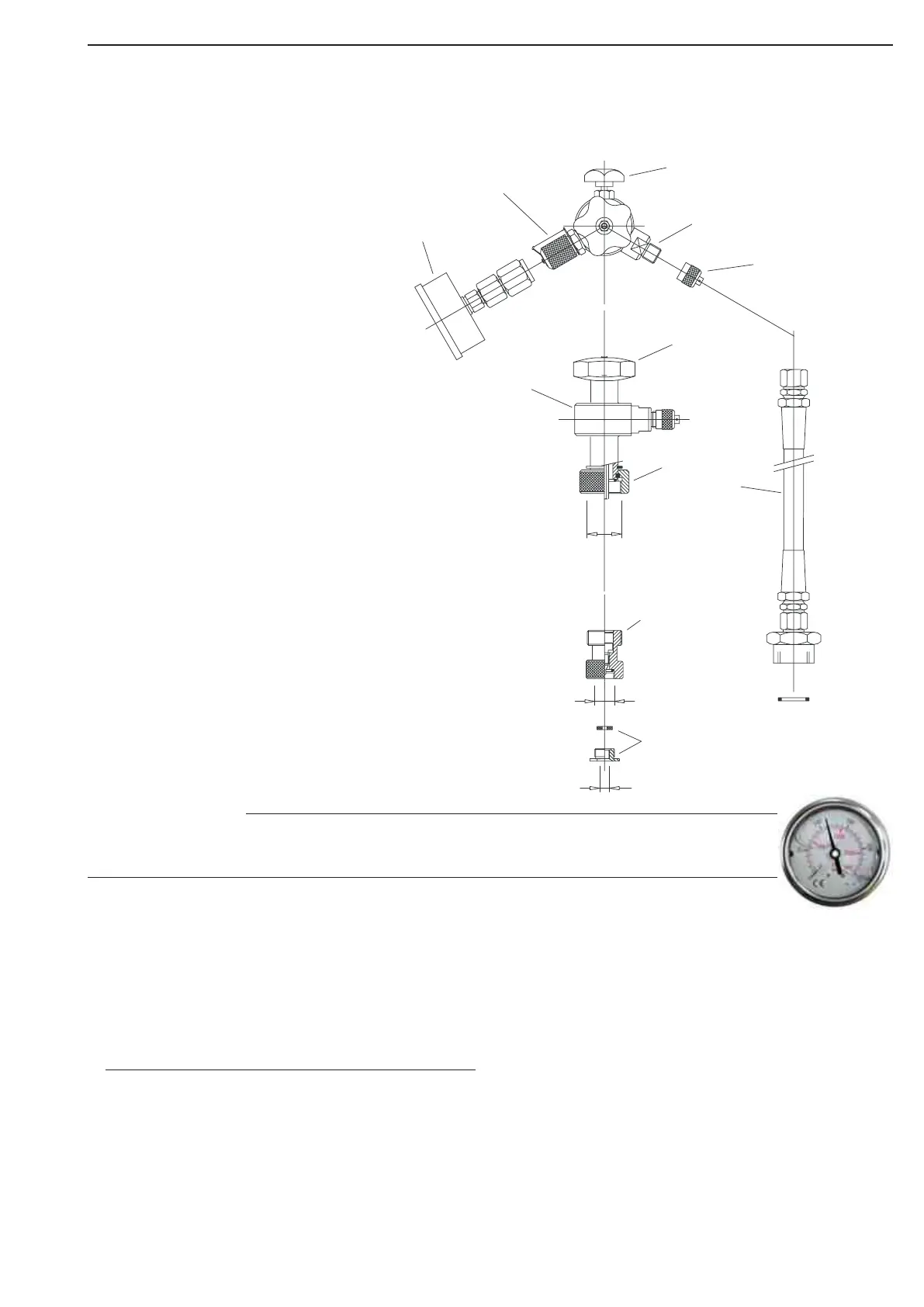

Key
1 UCA
3 Adapter (short)
4 Adapter (insert) with fibre washer
5 Pressure gauge
6 Knurled protective cap – gauge port
7 Knurled collar – gas port
8 Knurled protective cap – filling port
9 Filling hose (G1/4 fitting, 60° cone) with O-ring
10 Filling port valve
Pos 9 spare hose Part No. 515642
Gas Bottle Fittings and Part Numbers
To meet the requirements of different markets,
Parker’s UCA
Charging and Gauging Kits are supplied with
an adapter to
suit the appropriate gas bottle fitting.
UCA Universal Charging & Gauging kit. No. 515148
Pos No 9 is special for the different country. See the list below:
Country Gas Bottle Fitting Part No
UK 5/8 BSP (male) Part No. 515149
France W 21,7 x 1/ 14” (female) Part No. 515151
Germany W 24,32 x 1/ 14” (female) Part No. (Incl. 515148)
Italy W 21,7 x 1/ 14” (male) Part No. 515152
US 0,960 x 1/ 14” (male) Part No. 515150
Pre - charging (Nitrogene N2)
Wet disc brake: Pressure: 60,0 ±0.5bar
Park brake: Pressure: 112,5 ±0.5bar:
M28 x 1.5
5/8- 18 UNF
(8V1-Vg 8)
A
B
5
6
10
8
1
7
9
3
4
