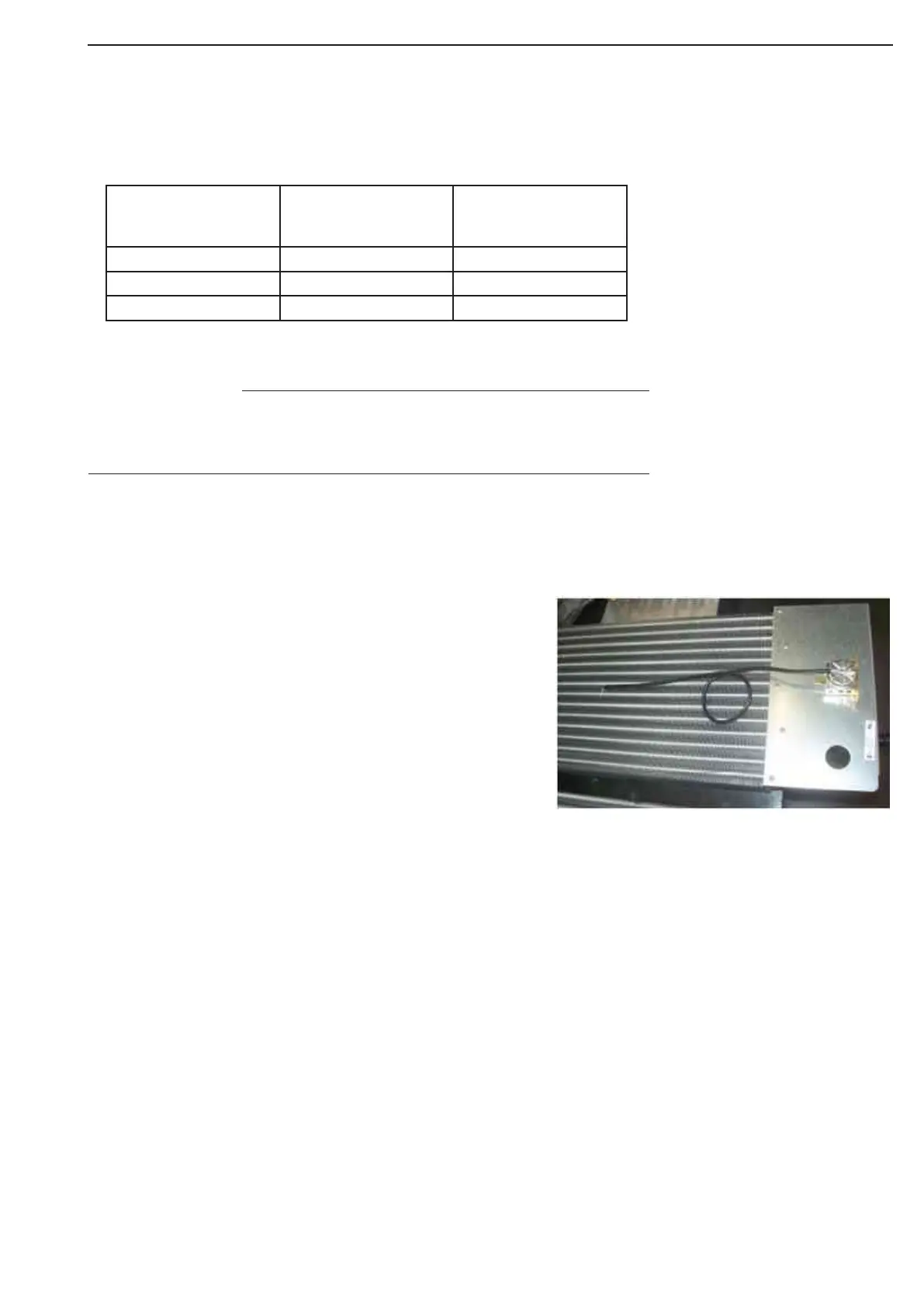

Ch 6 page 33
ELECTRICAL SYSTEM
SHOP MANUAL
Place the thermometer in one of the air louvers, and check the cool air
outlet temperature.
Outside
temperature
Temperature at
louver exit
Time needed to
reach
temperature
+20°C +4°C 2 min
+25°C +4°C 3,5 min
+30°C +4°C 5 min
Check the thermostat stops the compressor and system operation before
the outlet temperature is
lower than 1°C.
The temperatures were recorded with the vehicle staying in the work-
shop (not exposed to thedirect sunlight) and with around 1100 rpm
engine speed.
NOTE
HVAC Thermostat
