Doosan DA40 - Page 764

SHOP MANUAL
Ch 6 page 54
ELECTRICAL SYSTEM
1 Excitation winding
2 Bolt
3 Compression spring
4 Bearing
5 Bolt
6 Gasket ring
7 Nut
8 Stud
9 Bolt
10 Bolt
11 Intermediate bearing
12 Spacer washer
13 Freewheeling gear
14 Washer
15 Rotor
16 Rear bearing shield
17 Bearing
18 Carbon brush kit
19 Carbon brush holder
20 Cover
21 Bolt
22 Bolt
23 Washer
24 Nut
25 Washer
26 Conducting bar
27 Coupling lever
28 Solenoid switch, solenoid
29 Front bearing shield
30 Bolt
31 Spacing washers and gasket
32 Assembly parts for conducting bar
33 Washer
34 Nut
35 Washer
36 Bolt
37 Bearing
38 O-ring
Integral parts
1 Solenoid switch
2 Coupling lever
3 Field windings with pole shoes
4 Rotor with commutator
5 Starter pinion
6 Brush holder with four carbon brushes

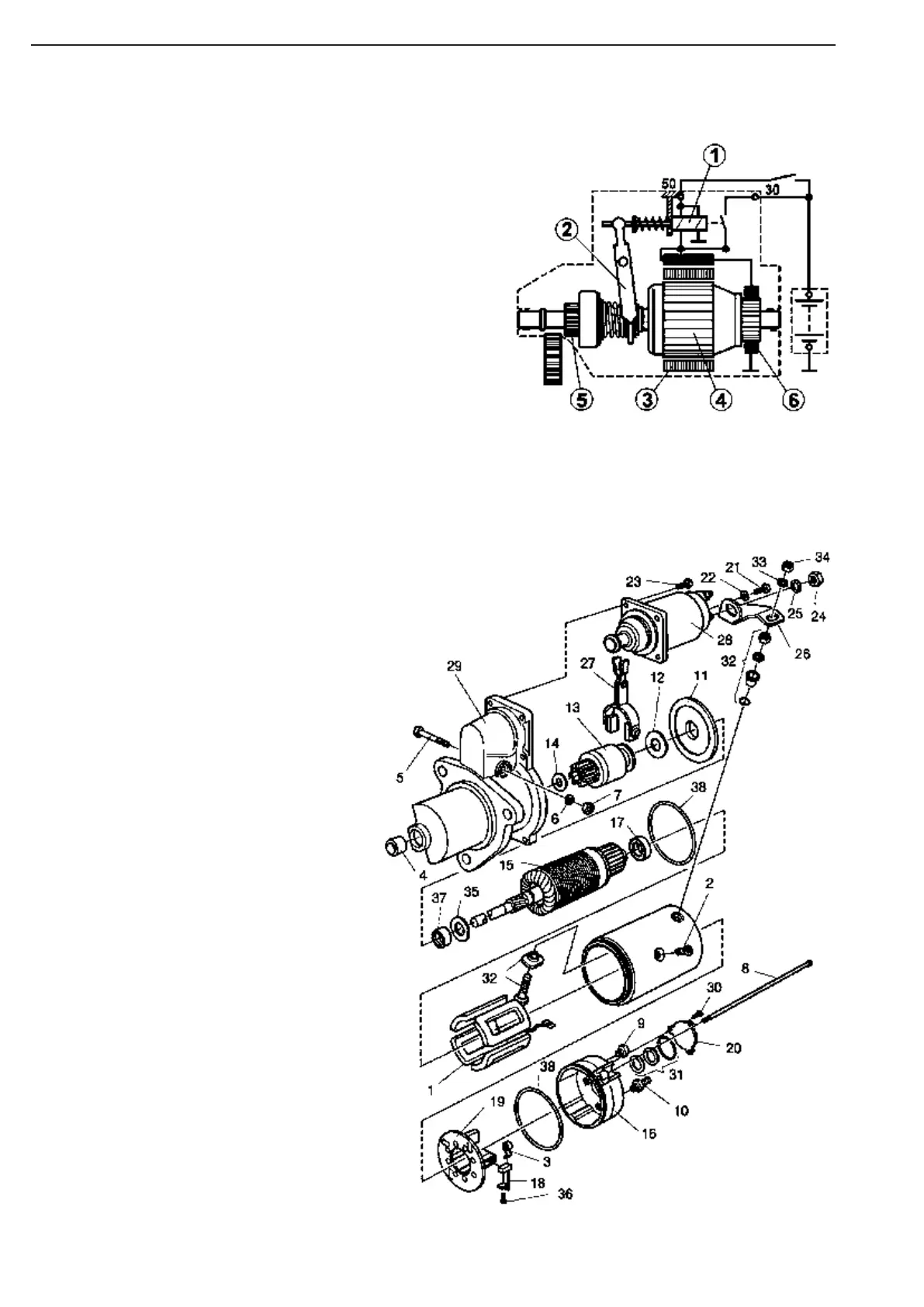

Exploded view drawing
Figure 33
Figure 34
