SHOP MANUAL
Ch 6 page 84
ELECTRICAL SYSTEM

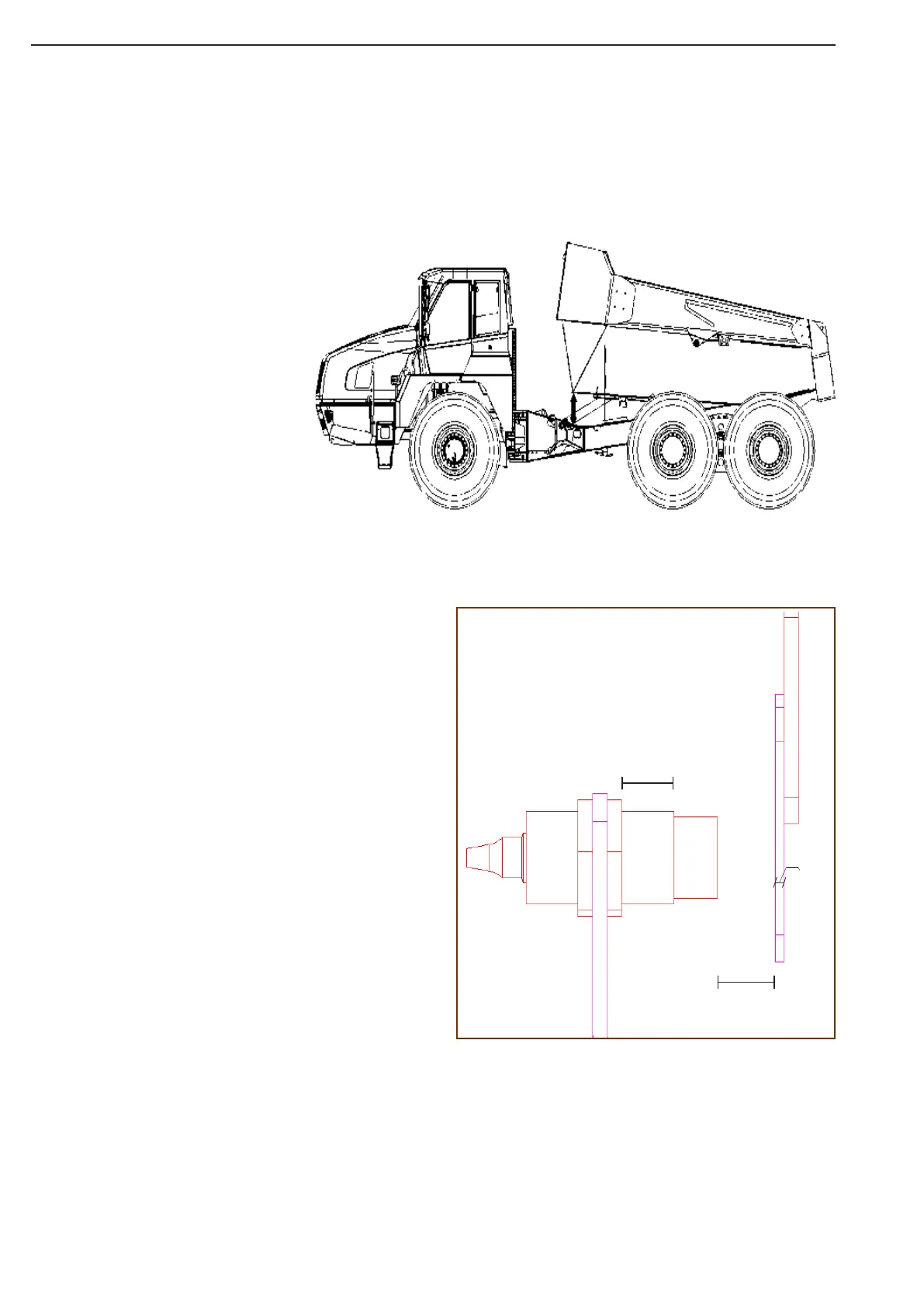

Body tilting sensor
Lower the plate until it breaks sensor beam.
Adjust the body tilting sensor distance according to
measurements shown on picture.
The sensor must maintain a minimum 5mm distance
from mounting bracket.
If sensor is assembled to close to bracket it can react
and the sensor can be affected due to the metal.
This will result the sensor into giving wrong signal to
system.
The body tilting sensor is assembled on rear frame.
For safety reasons this registers if body is up or down.
Adjusting the plate breaking sensor beam
Raise the body approximately 400mm from frame
Figure 79
400mm
Figure 78
