ELECTRICAL SYSTEM
SHOP MANUAL

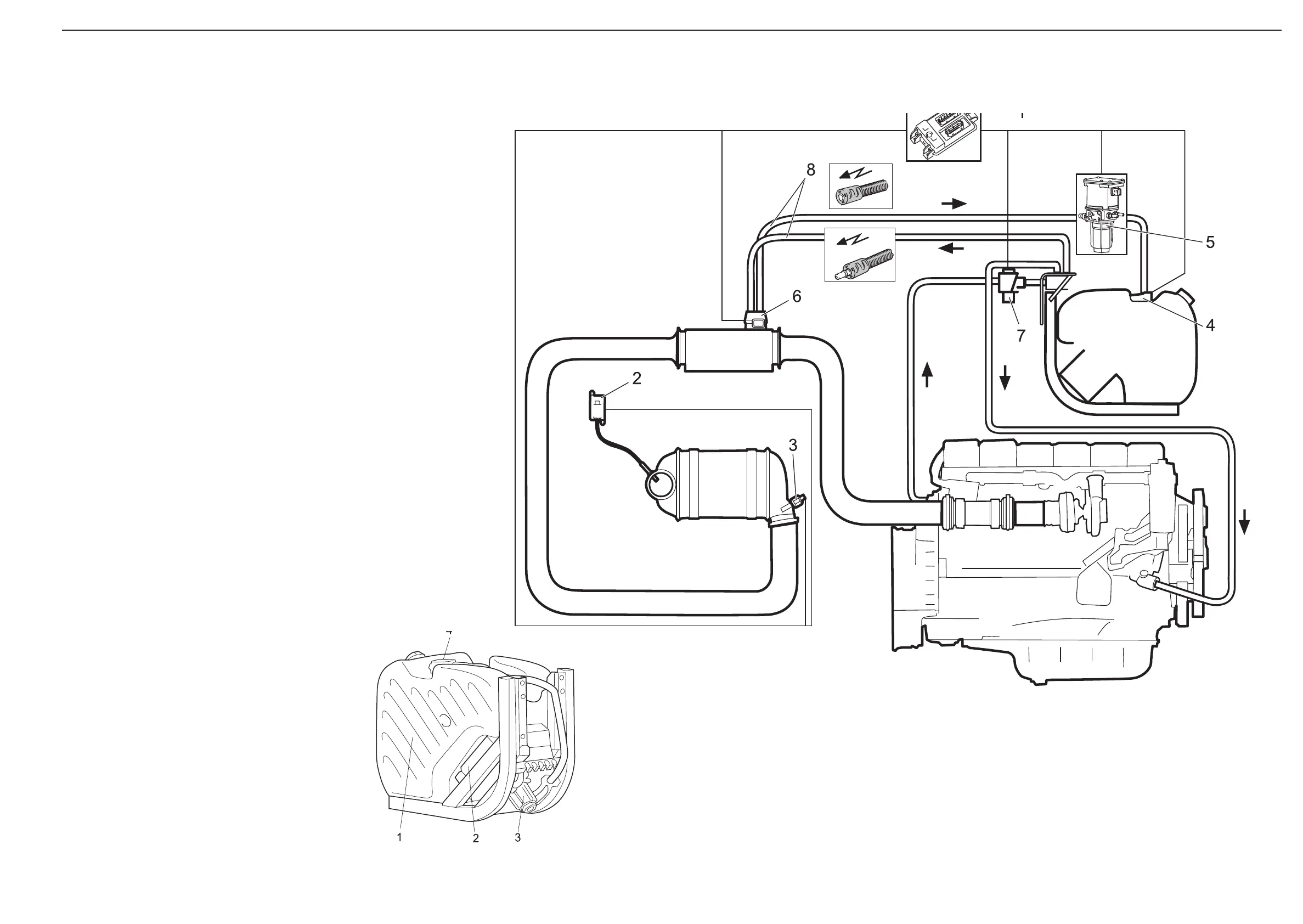

System overview for electrics
1 Control unit EEC3
2 NOx sensor
3 Temperature sensor
4 Level and temperature sensor
5 Reductant pump
6 Reductant doser
7 Coolant valve
8 Electrically heated reductant hoses
1 Reductant tank
2 Control unit EEC3
3 Reductant pump
4 Level and temperature
sensor
Figure 89
Figure 90
