SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 22 Ch 7 Page 23
FRONT WAGON

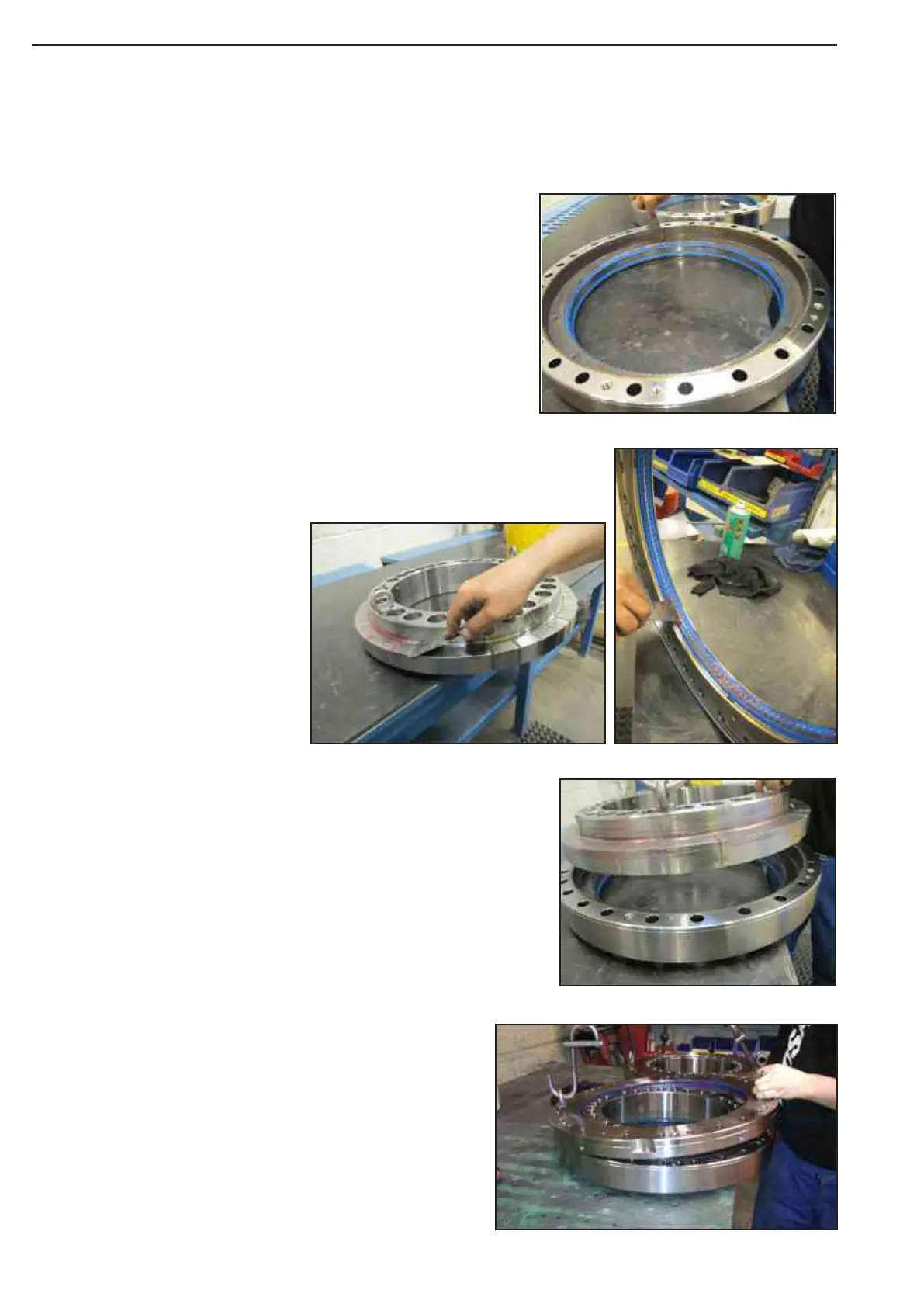

Assembly of outer rings
Carefully fit the outer rings
Fit inner ring and outer ring
Make sure all surfaces are clean.
Apply molokote to all copper.
Apply grease to inner ring contact surfaces and Sealrings
Figure 47
Figure 46
Figure 45Figure 44
Figure 43
