FRONT WAGON
Articulation Bearing
Articulation
Bearing
Installation
Position articulation bearing on articulation hinge flange
Tighten the 26 bolts.
Move the rear wagon into position to enter the bolts fastening the bearing to the front frame.
Tighten the 26 bolts.
Connect the lubrication line.
Manually engage the parking brake. (Ref. Operation & Maintenance Manual 5.13)
Install hoses and cables in the hose support.
Connect the intermediate drive shaft. (Ref. 3.5.3)
Remove safety stands.
Operate the central lubrication system to ensure proper lubrication of bearing.
Control
Check that all components are located as when removed.
Perform a test drive to check that the articulation
bearing is functioning properly.

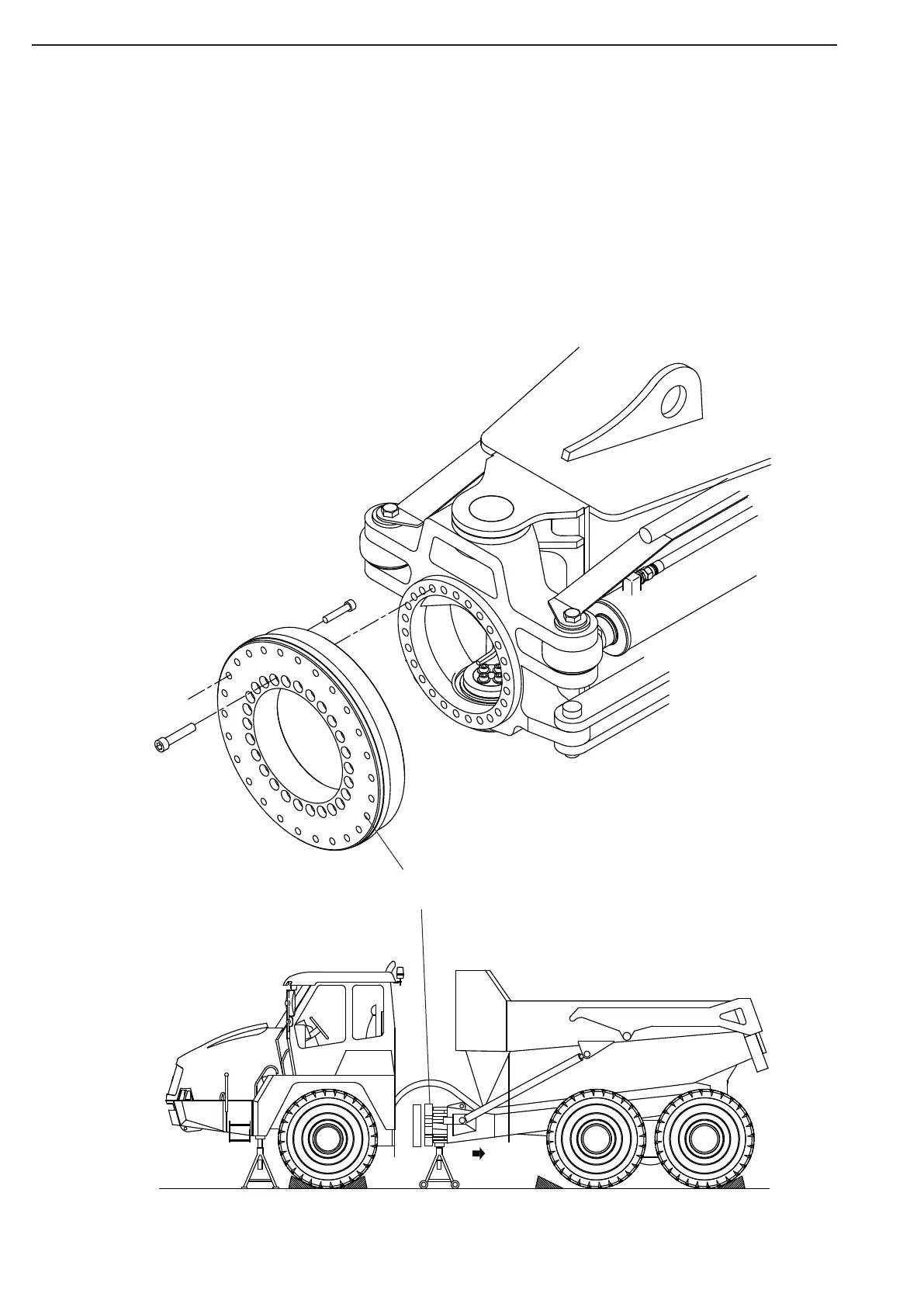

Figure 50
