SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 30 Ch 7 Page 31
FRONT WAGON

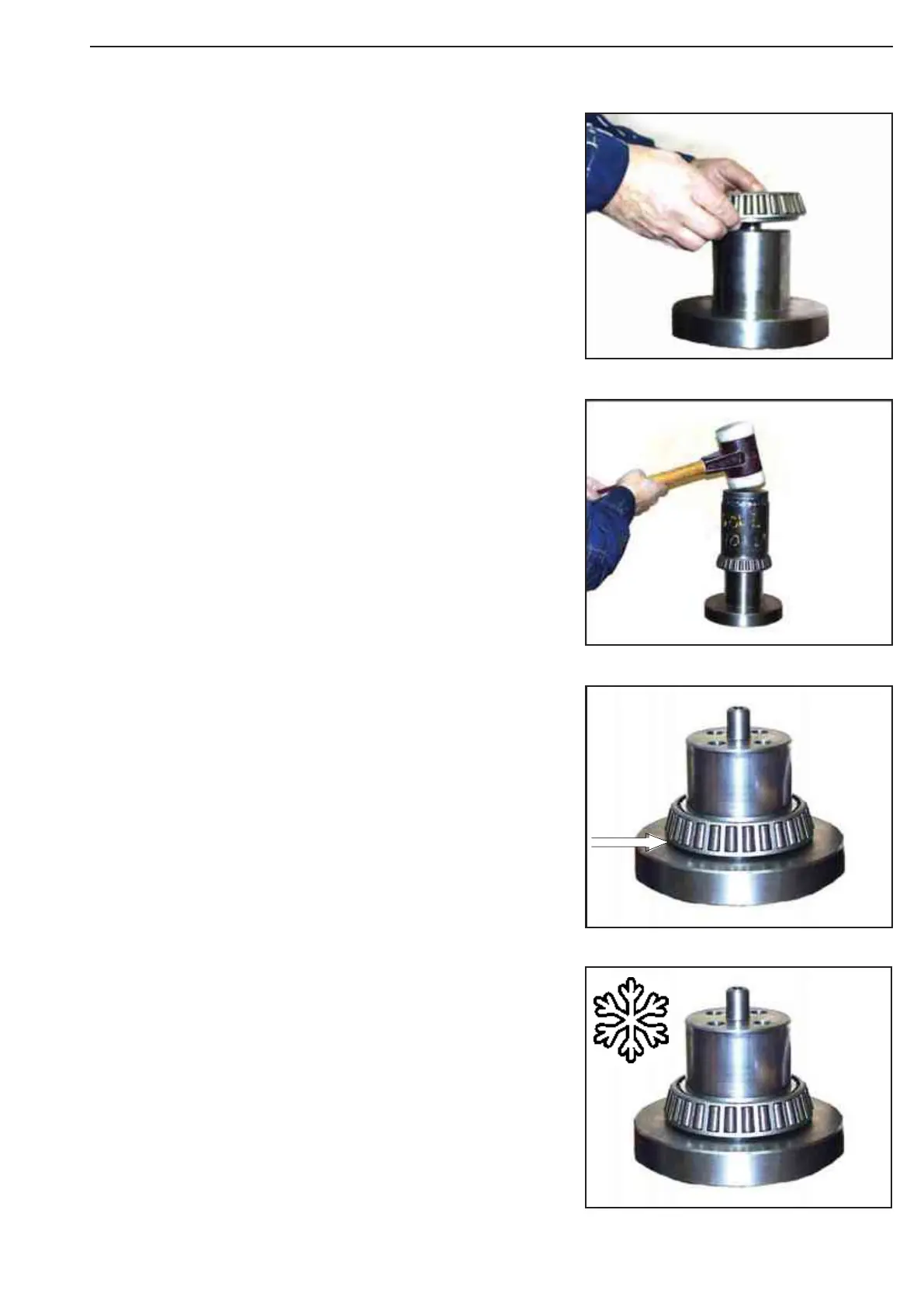

Pre-assemble the articulation hinge bolt
Assemble the bearing cone on the bolt.
Cool down the bolt (Approx − 20°C).
Assemble the bearing.
Tool for assemble the bearing:
Pipe Ø 110 x ø101 x 130 mm.
At the top, a plate Ø110 x 20 mm.
Use hydraulic press or plastic hammer.
Check that the bearing cone is in contact with the
bolt flange.
Cool down the bolt with bearing cone.
(Approx − 20°C)
Figure 69
Figure 68
Figure 67
Figure 66
To Next Page
