SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 34 Ch 7 Page 35
FRONT WAGON
Figure 80
Figure 78
Figure 77
Figure 79

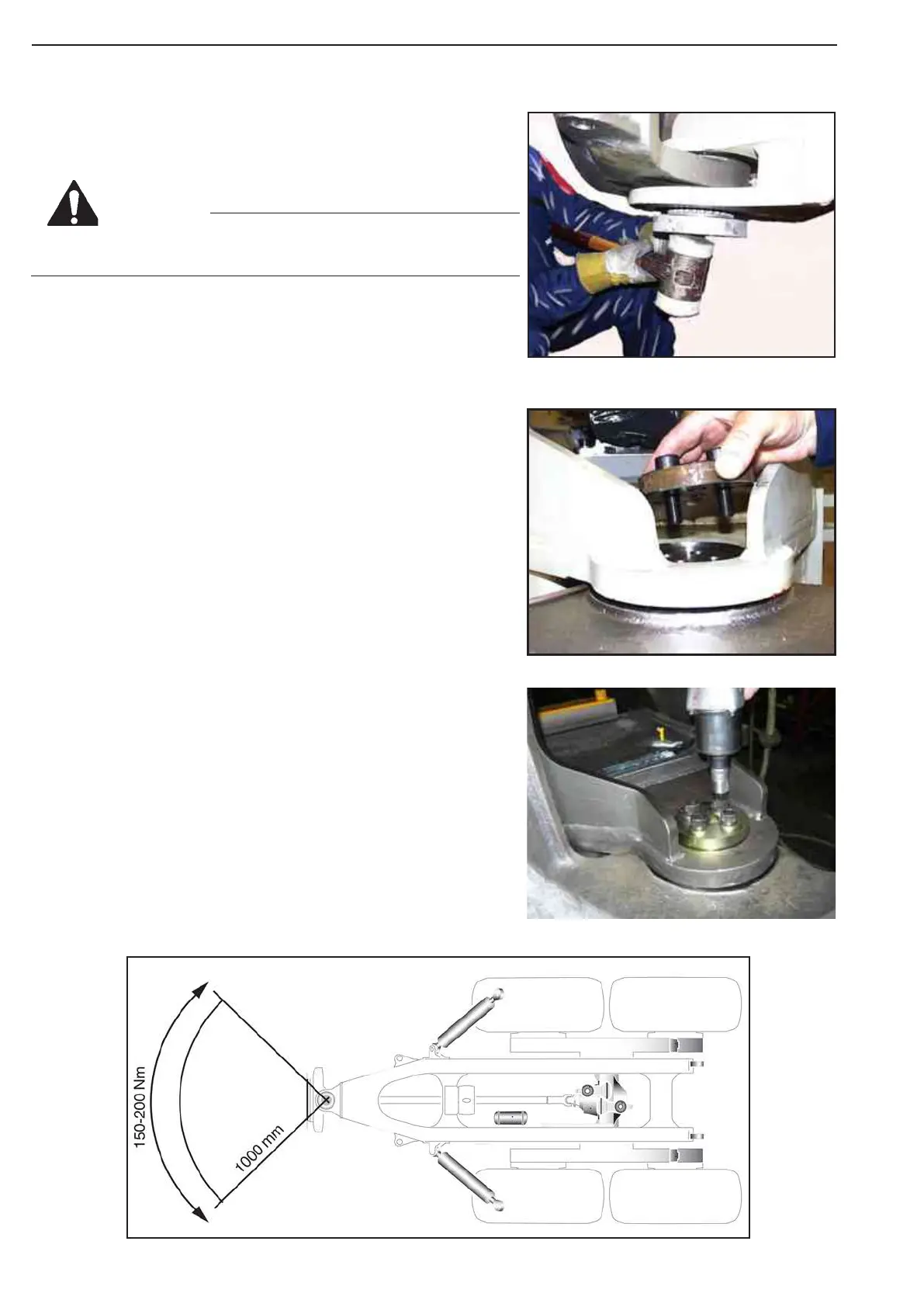

Procedure for the pre-tensioning the articulation
bearing bolt. See figure 70
The articulation hinge bolt is heavy, use caution when assem-
bling
1 Assemble the plate, Pos 1. (ref.fig.57)
2 Assemble 2 pcs washers and 2 pcs screws.
Pos 2 and 3.
3 Torque limit of the screws 330 Nm.
4 Loosen the screws and pre-torque the screws to 30 Nm.
5 Use a depth meter and measure the distance from the
plate to the end of the bolt, Pos 4 (Dimension A)
6 Use a micrometer to measure the distance from the
micrometer plane to the underside of the plate, pos 1 and 5
(Dimension B).
7 Follow the calculation example below.
Check the pre-stressing: 1000 mm. from center pull/push 150 -
200 Nm
(The steering cylinder is not connected to articulation hinge at
this time)
CAUTION
If hinge is to loose: Remove Shims
If hinge is to tight: Add shims
To Next Page
