OPTION

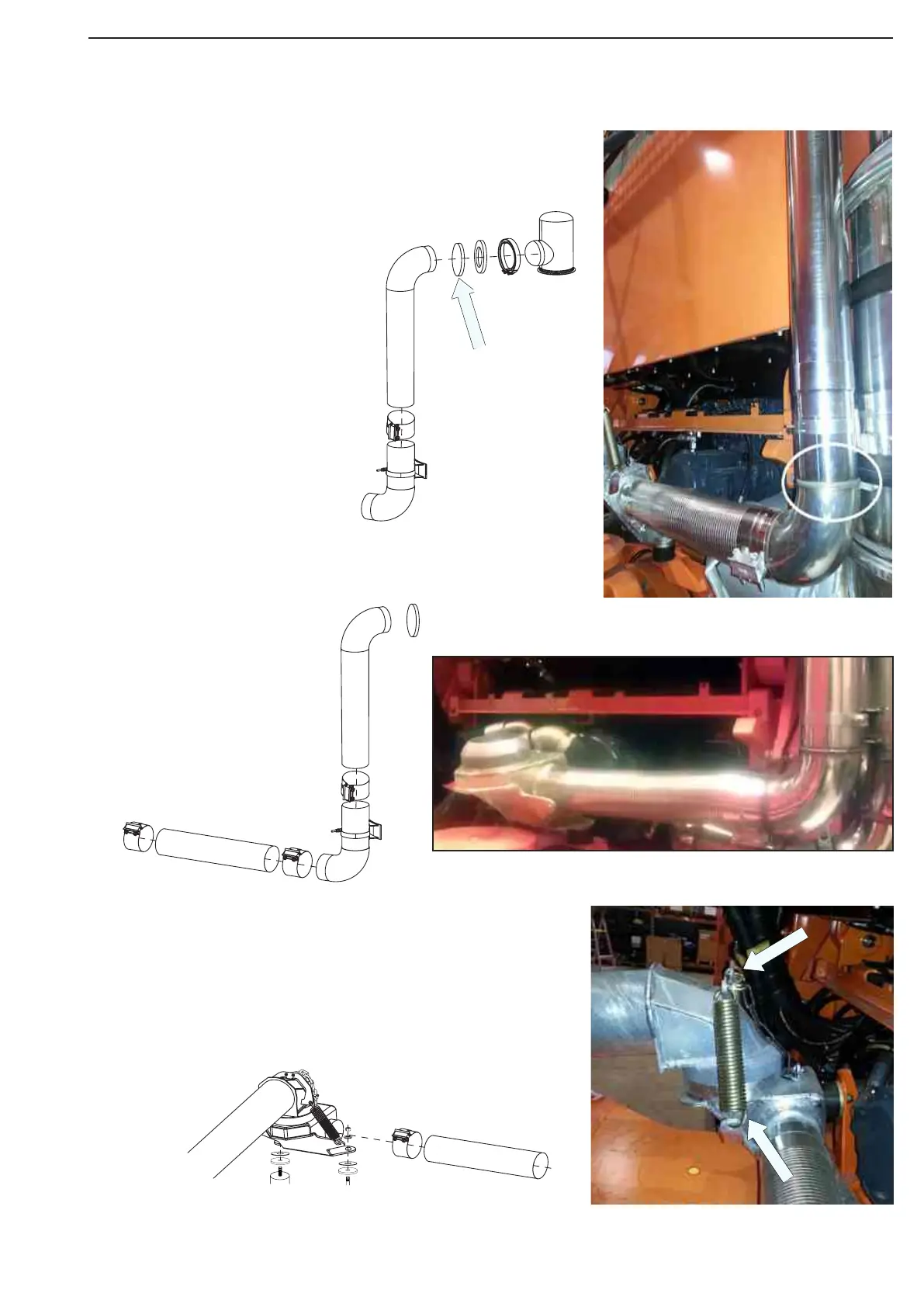

Fix the vertical pipe on the silencer and, on
the top, fix the elbow with a V-clamp on the
glove from the short exhaust pipe.
Restrictors on body heating part, assembled
as shown on drawing.
Assemble the flexible pipe between the lower
elbow to the exhaust block. Fix it with clamps.
Fix one side of the telescopic pipes to the exhaust
bracket and, the other side put on the top of the
exhaust block.
Place the springs on both sides of the exhaust
block to pull down the telescopic pipe.
Figure 8
Figure 9
Figure 10
Restrictor
To Next Page
