68 IBM System Storage DS3000: Introduction and Implementation Guide

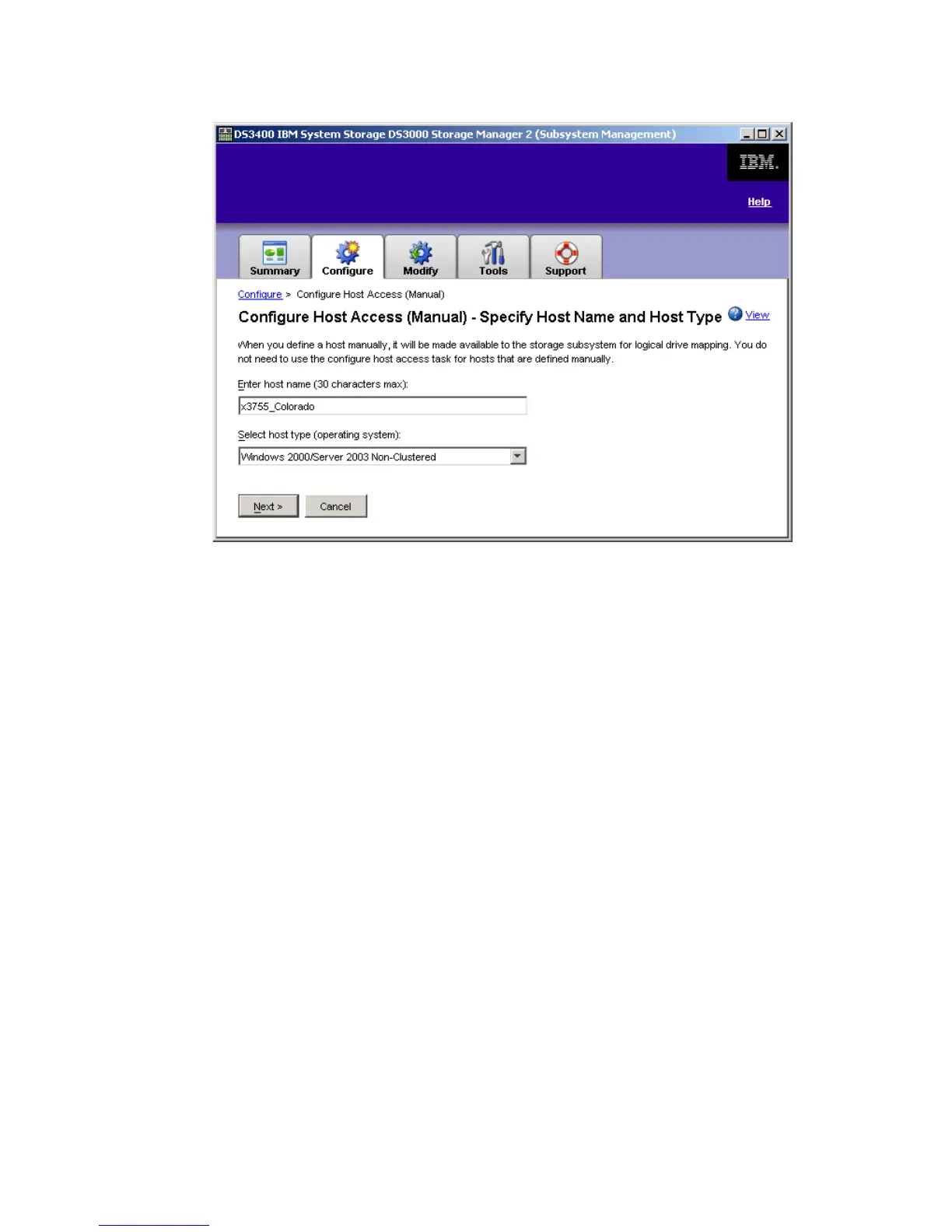

Figure 4-29 Specify Host Name and Type
Our sample server is a System x 3755 running Windows Server 2003 and it is not a part of
any cluster. The host type you select must reflect this.
Click Next; this brings you to a window similar to Figure 4-30. Here, you specify the HBA host
ports. In our example, our server uses a dual-port 4 Gbps FC HBA. Therefore, we need to
define two host ports and specify the correct WWN for each port. Click New.
