7065Admin_Enterprise.fm Draft Document for Review August 30, 2007 12:59 am
130 IBM System Storage DS3000: Introduction and Implementation Guide

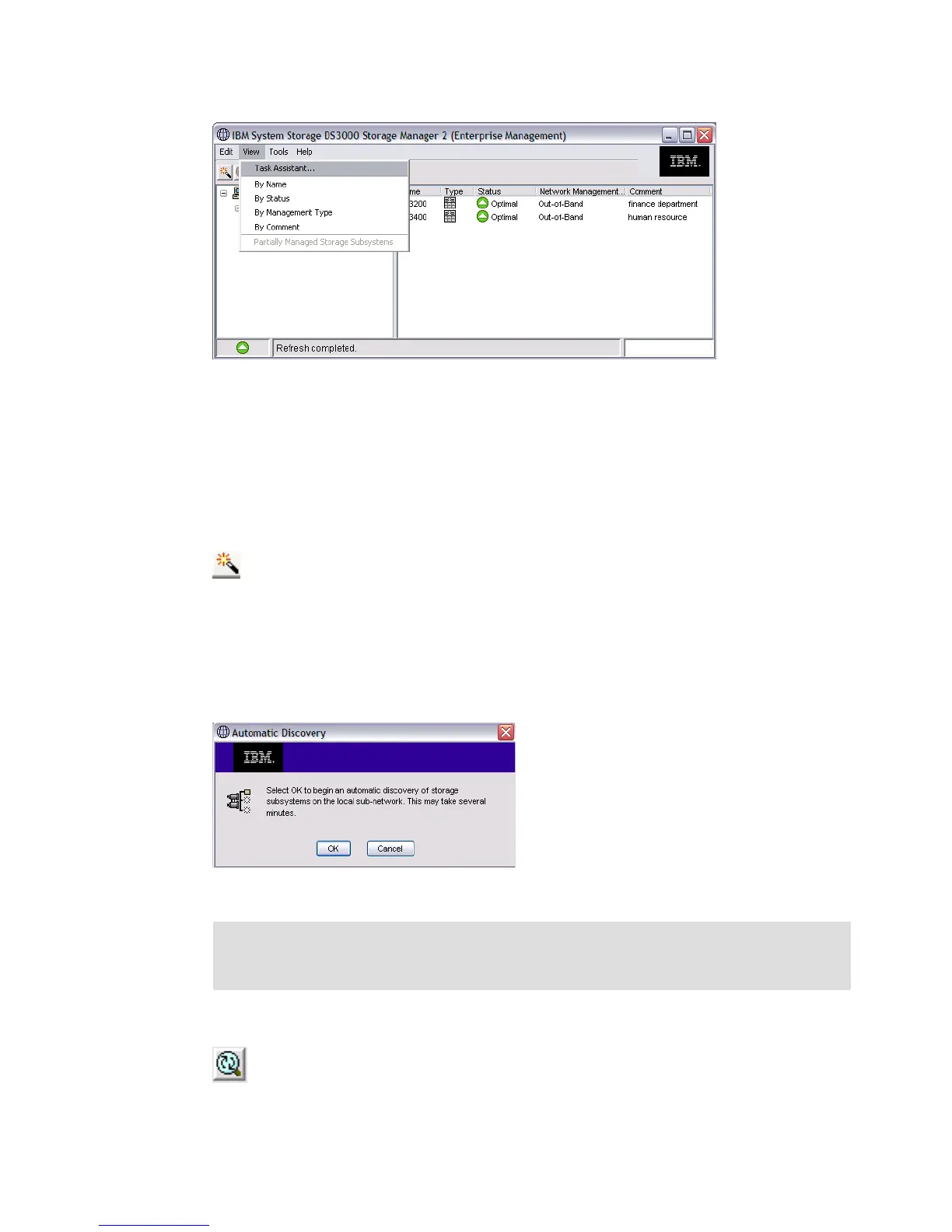

Figure 7-19
View submenu
7.2.3 The Quick Access Buttons
Below the menu bar you will see the Quick Access Buttons to directly activate some functions
of the Enterprise Management window. Click them to activate the associated task:
Automatically discover new storage subsystems
Figure 7-20 Automatically discover new storage systems button
This button starts an automatic discovery of new storage subsystems (Figure 7-21) by
sending in-band and out-of-band broadcasts. If it finds directly attached storage systems or
hosts running the DS3000 Storage Manager agent (with an attached Storage subsystem), it
adds these storage subsystems to the Enterprise Management Window.
Figure 7-21 Automatic Discovery
Rescan selected host for new storage subsystems
Figure 7-22 Rescan Host button
Note: If your subsystem is not discovered automatically by the wizard (for example
because it is in another broadcast domain) you can add it manually as described in “Add
Storage Subsystem to view” on page 131.
