Chapter 10. Administration - Modify 243
Draft Document for Review August 30, 2007 12:59 am 7065Admin_Modify.fm

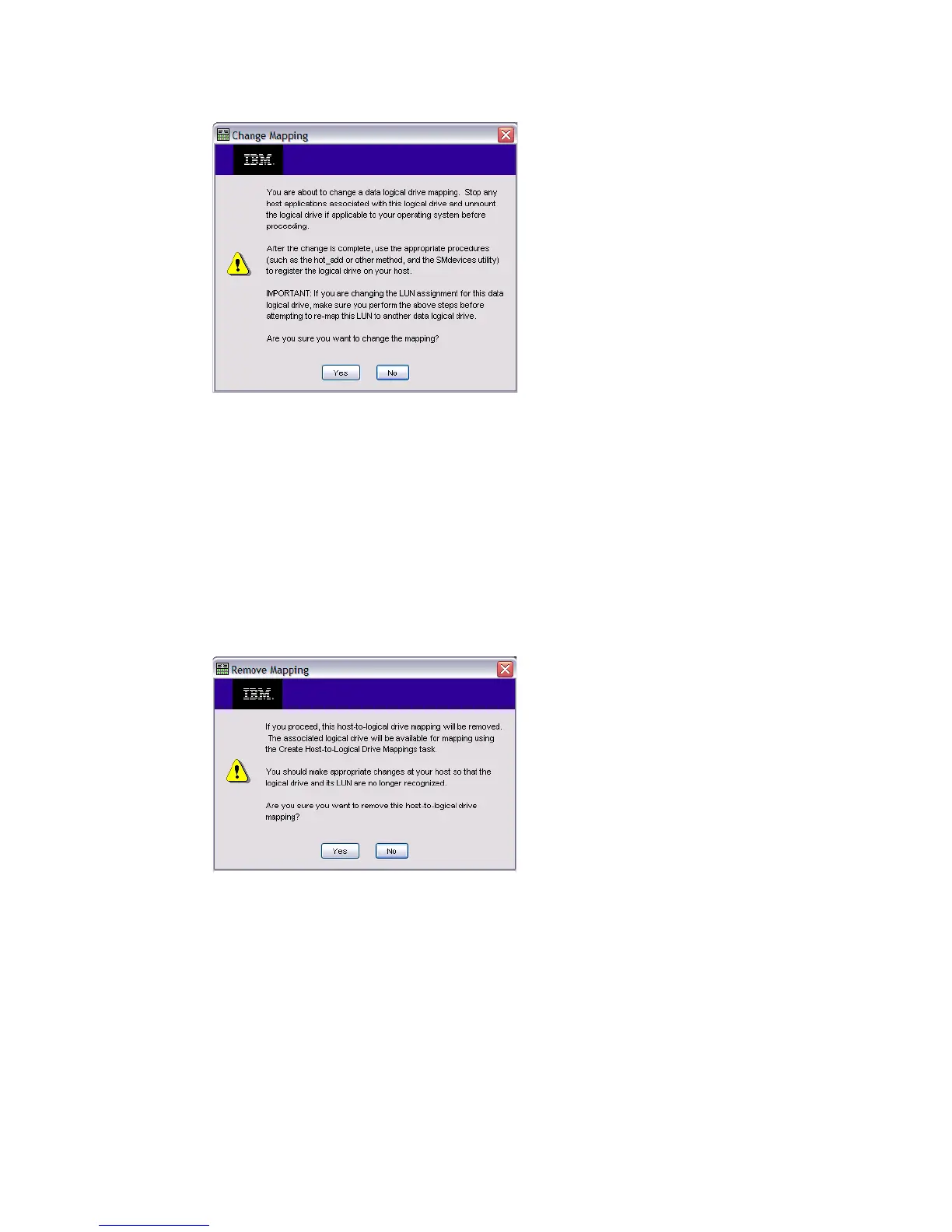

Figure 10-47 Change Mapping Info
4. Read it and click Yes to confirm.
Remove Storage Partitioning
The procedure for changing the storage partitioning is as follows:
1. Click Edit Host-to-Logical Drives Mapping (Figure 10-1 on page 214) to open the
associated view (Figure 10-45 on page 242).
2. You can see the Logical Drive Name, the host(s) which can access it, the LUN number and
the capacity. Highlight the entry you want to change and click Remove.
3. The Remove Mapping window appears (Figure 10-48).
Figure 10-48 Remove Mapping
4. Read the information and click Yes to confirm.
5. The mapping is now removed from your configuration
