Chapter 16. iSCSI configuration 1 - Windows 2003 with QLogic QMC4052 HBA 365
Draft Document for Review August 30, 2007 12:59 am 7065iSCSI_Config1.fm
8. Enter the IP address, subnet mask, default gateway, and DNS server, then click Save Port
Settings, as in Figure 16-42.

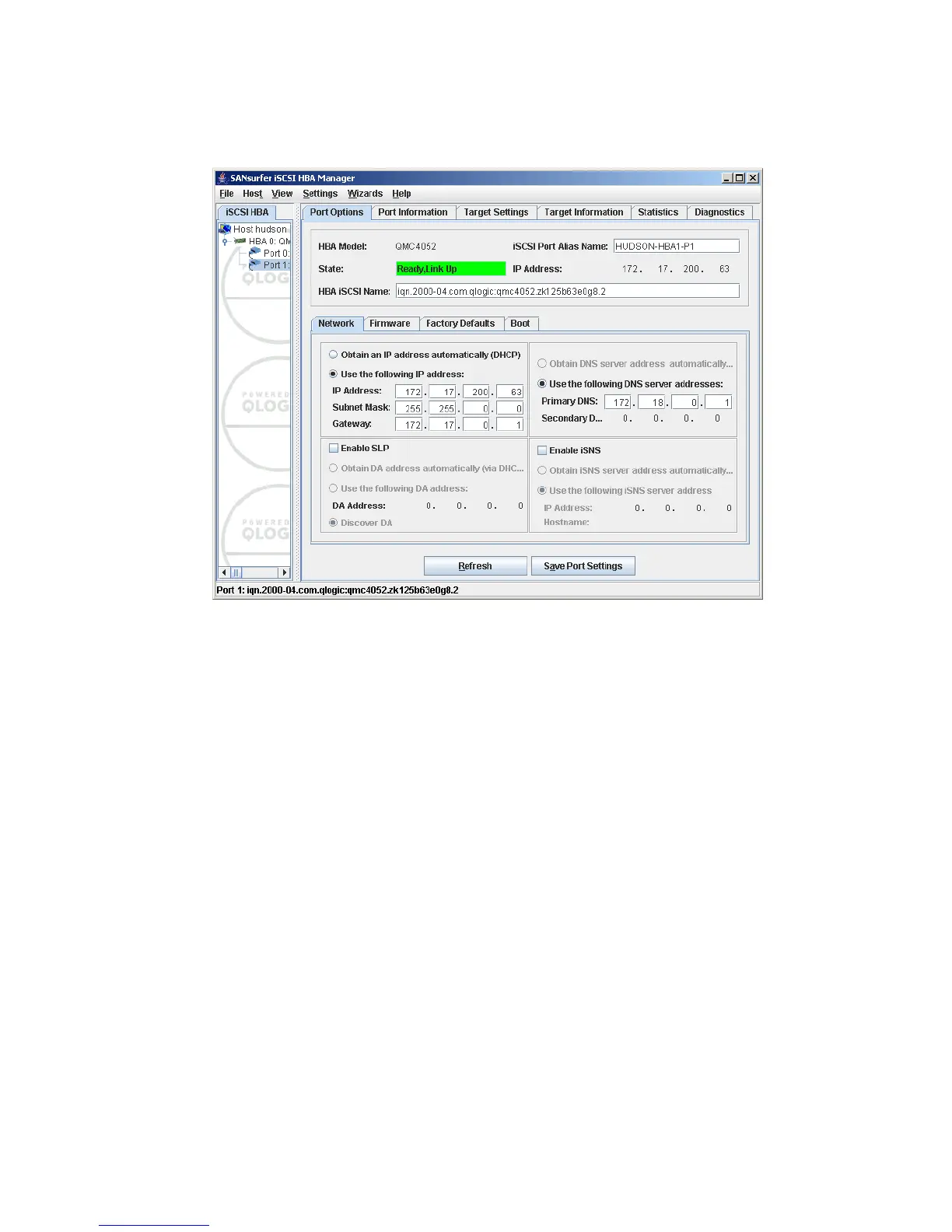

Figure 16-42 SANsurfer - Port Options - Fixed IP address settings
9. An address configuration requires a reset of the adapter. A warning is shown that
applications accessing logical drives that might be attached to this adapter needs to be
unmounted first. Click Yes. See Figure 16-39.
10.Enter the SANsurfer password and click OK. The default SANsurfer password is config.
11.A configuration refresh is requested after the network settings were saved. Click Yes to
refresh the configuration.
All network settings for the iSCSI HBA are now done.
16.5.5 Test network settings
Since the IP interface from the Network Controller is not available to the running operating
system, tests of the IP connection must be done from an external system or using SANsurfer.
SANsurfer provides a diagnostic capability that, among other things, can be used to perform a
ping test to verify the network settings.
1. Connect with the SANsurfer GUI to the host, select the port from the HBA that you want to
test, and click the Diagnostic tab. You will see the ping test as in Figure 16-43 on
page 366.
