Chapter 10. Administration - Modify 233
Draft Document for Review August 30, 2007 12:59 am 7065Admin_Modify.fm

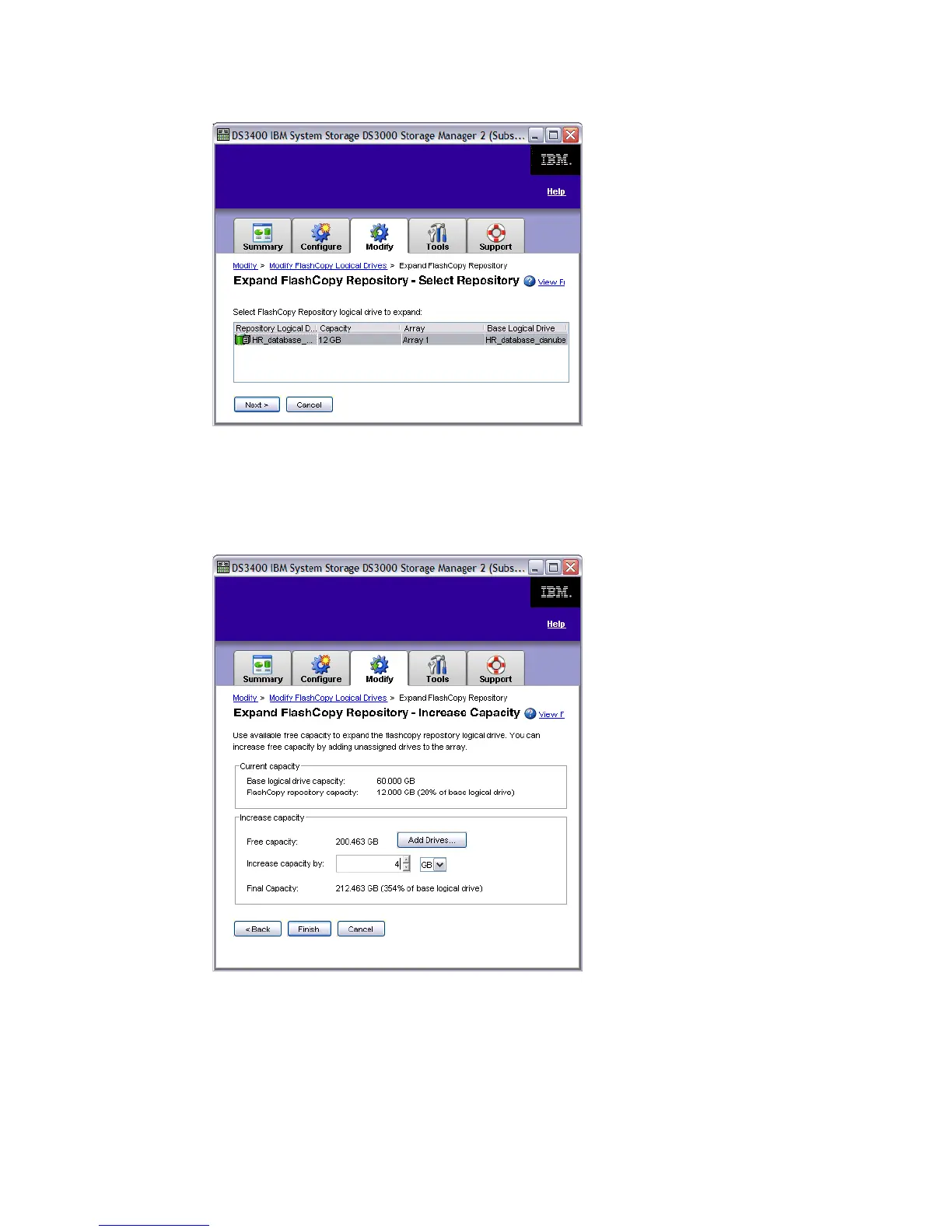

Figure 10-30 Modify - Expand FlashCopy Repository
2. Highlight the FlashCopy Logical Drive you want to expand and click Next.
The Increase Capacity view will appear (Figure 10-31), showing the size of the current
Base Logical Drive and of the FlashCopy Repository.
Figure 10-31 Modify - Increase Capacity
3. If there is free capacity available in this array left, just enter the amount to increase
capacity by in the Increase Capacity field and click Finish.
4. If there is not enough free capacity left, you can expand it here by adding new drives. To
do this click Add Drives to open the “Add Drives” window (Figure 10-32 on page 234).
Select from the drop down how many drives you want to add and click Add.
