7065DS3KBasicConfig.fm Draft Document for Review August 30, 2007 12:59 am
62 IBM System Storage DS3000: Introduction and Implementation Guide

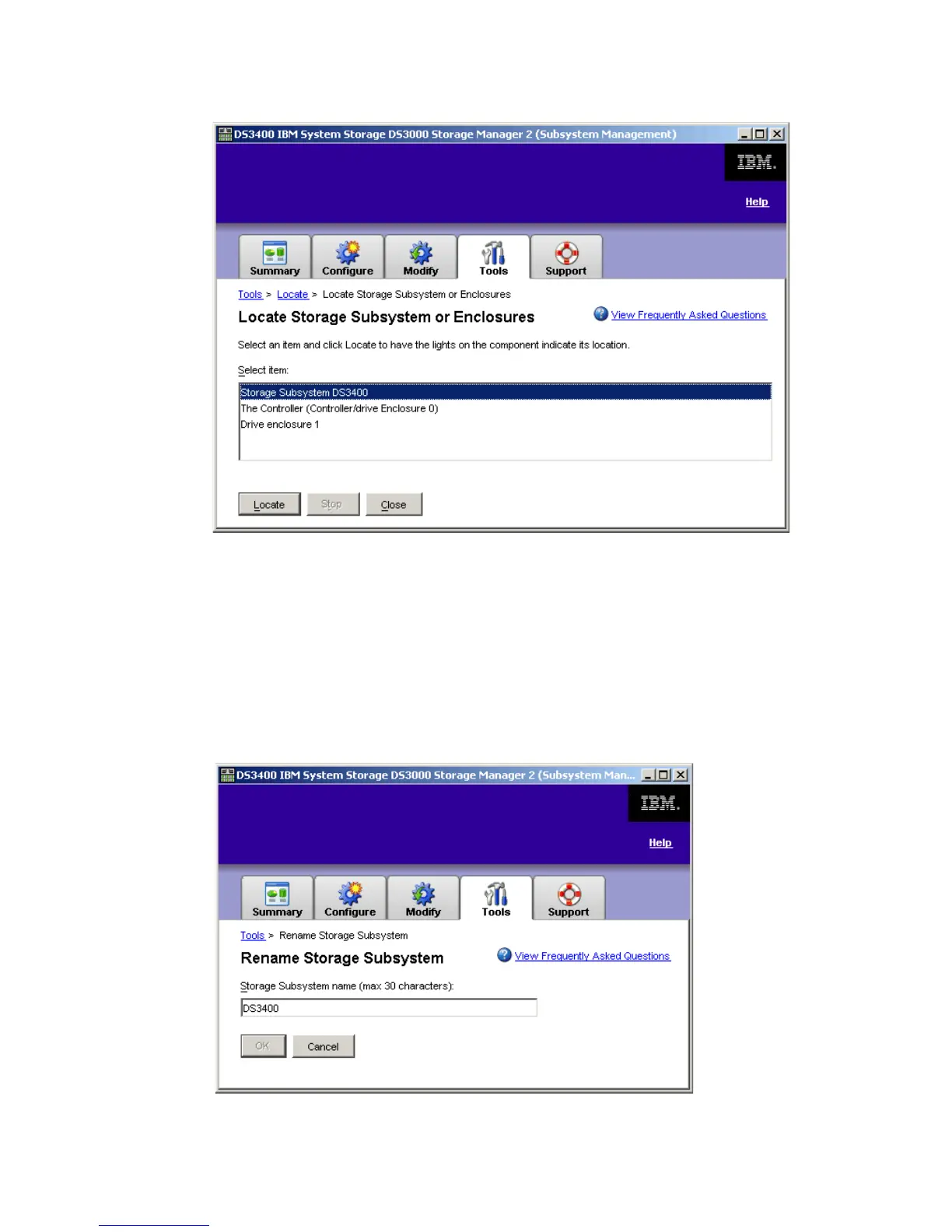

Figure 4-22 Locate Storage Subsystem
Click Locate - the LED on the selected component will indicate the component’s location.
4.4.2 Rename the storage subsystem
Out-of-the-box DS3000 will not have a meaningful name in DS3000 Storage Manager.
Especially if you have multiple DS3000s, you will want to assign distinguishing names to
display in the Enterprise Management Window. We show the Rename Storage Subsystem
window in Figure 4-23. Enter a new name, and click OK to confirm it.
Figure 4-23 Rename Storage Subsystem
