Chapter 16. iSCSI configuration 1 - Windows 2003 with QLogic QMC4052 HBA 353
Draft Document for Review August 30, 2007 12:59 am 7065iSCSI_Config1.fm
Flash the HBA with the latest supported code level supported by the storage product
Configure the network settings of the iSCS HBA ports.
16.5.1 Connect with SANsurfer to the host where the HBA is installed
Use a SANsurfer console on the host to start SANsurfer.
1. Start → Programs → QLogic Management Suite → SANsurfer or click the icon on the
desktop.
2. SANsurfer starts and by default connects to the local host, when the GUI and agent are
both installed on the host where the HBA is installed. When the GUI is installed on a
separate management station, specify the DNS name of the host in the field Enter host
name or IP address. Click Connect in the Connect to Host dialog. See Figure 16-20 on
page 353.

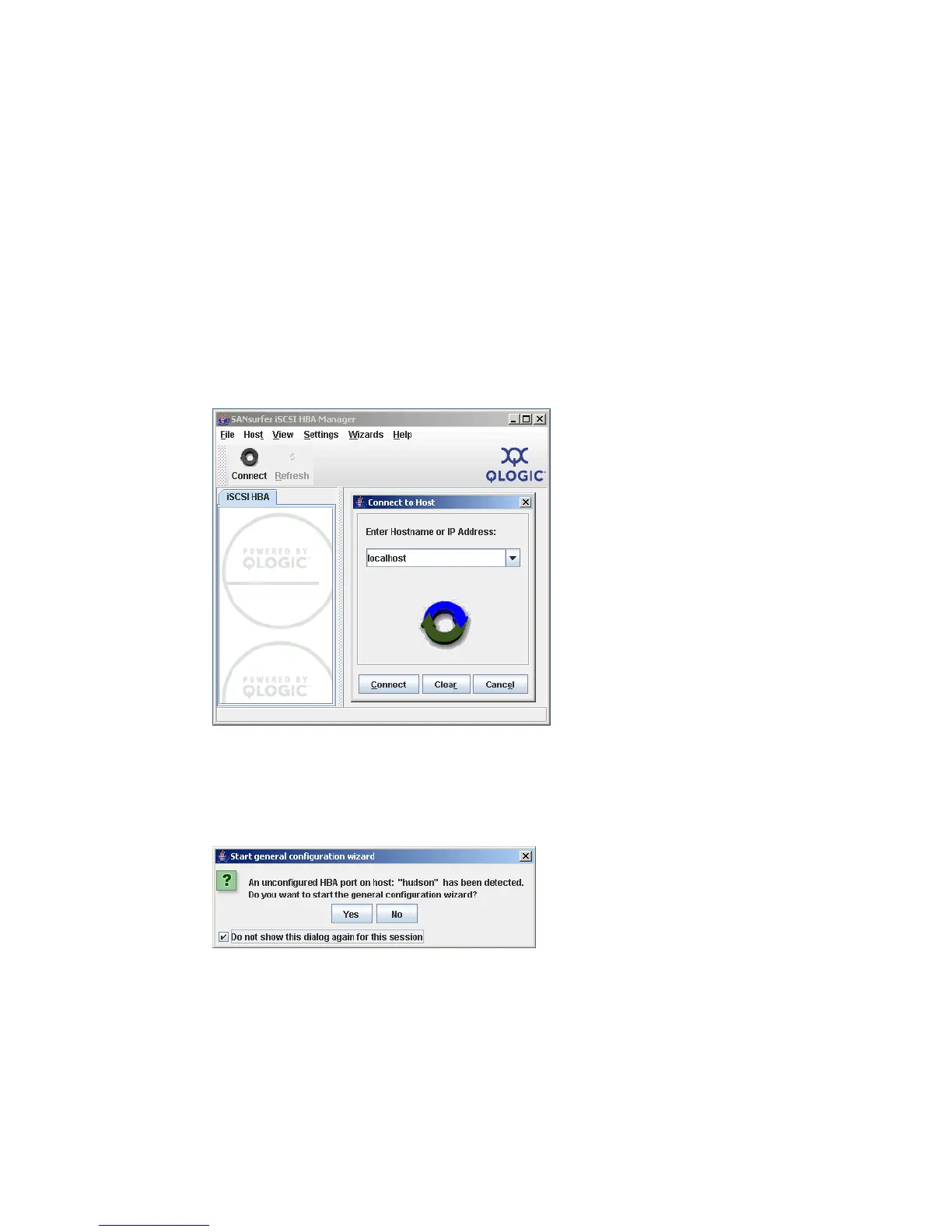

Figure 16-20 SANsurfer - Connect to host
3. Since our iSCSI adapter has not yet been configured, a message appears that an
unconfigured port was detected. Check Do not show this dialog again for this session
and click No.See Figure 16-21.
Figure 16-21 SANsurfer - Start general configuration wizard
4. After successful login some general information about the host and a list of the HBAs and
ports with their IQN’s (iSCSI Qualified Name - see 1.3.1, “iSCSI initiators and targets” on
page 8) are shown. See Figure 16-22.
