7065Admin_Configure.fm Draft Document for Review August 30, 2007 12:59 am
196 IBM System Storage DS3000: Introduction and Implementation Guide
3. In Figure 8-77 on page 196, decide which logical drive to assign to the selected host or
host group.
This view displays all logical drives without a host mapping. Select the logical drive you
want to assign, or check Select all logical drives to map all remaining logical drives to
one host. Leave the LUN number as the default, or if you have special requirements,
select a LUN number and click Finish.

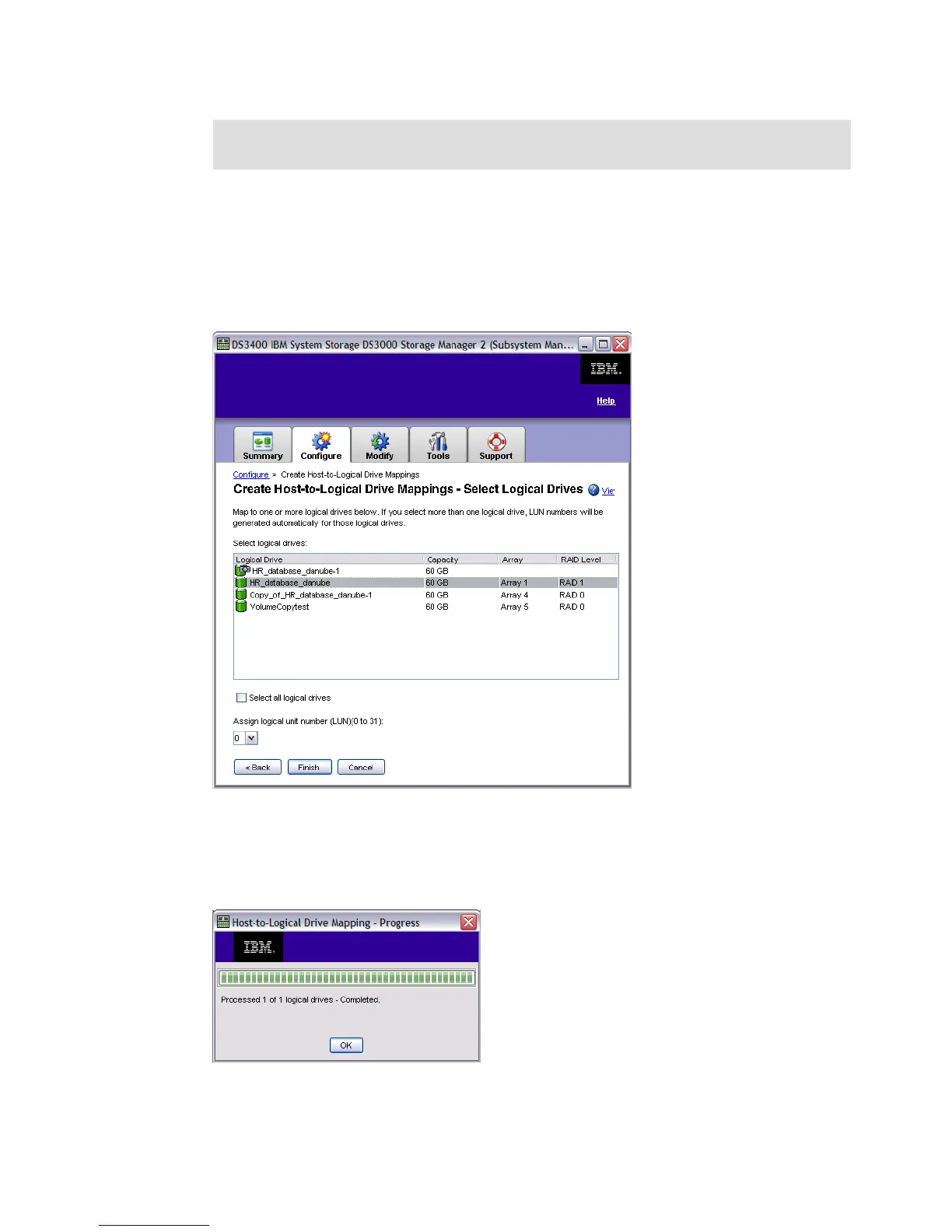

Figure 8-77 Storage Partitioning - Select Logical Drives
4. The wizard will perform the storage partitioning. You will see the message like Figure 8-78
when it is complete. Click OK exit. You will be prompted to create another host-to-logical
drive mapping or to return to the main Configure tab.
Figure 8-78 Storage Partitioning - Complete
Note: Remember, if several hosts should access one logical drive, create a host group and
select the host group here.
