7065iSCSI_Config3.fm Draft Document for Review August 30, 2007 12:59 am
422 IBM System Storage DS3000: Introduction and Implementation Guide

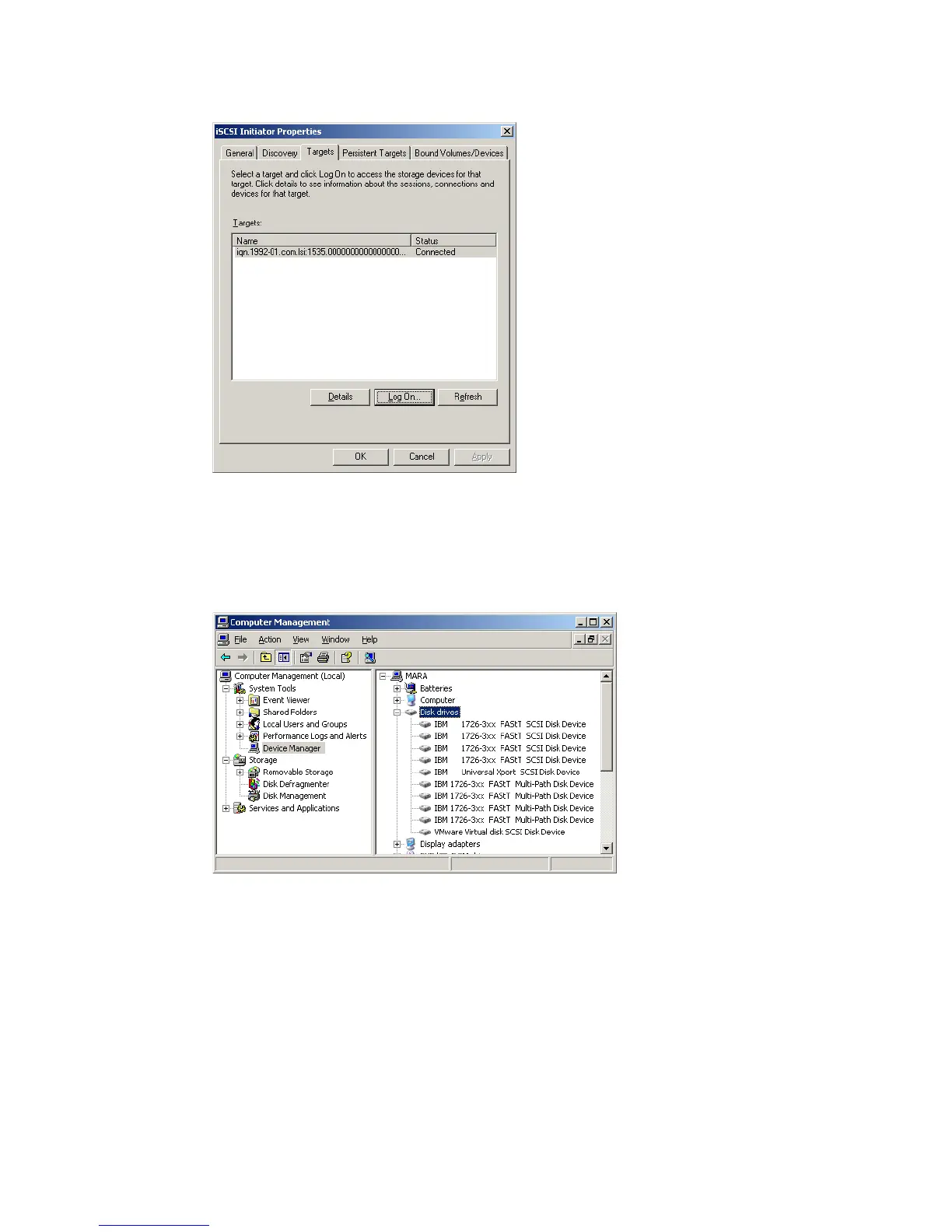

Figure 18-32 iSCSI initiator properties with connected target
8. Open Device Manager - we can see the four logical drives configured on the DS3300 (IBM
1726-3xx FAStT SCSI Disk Device) the Universal Xport SCSI Disk Device, and four IBM
1726-3xx FAStT Multipath Disk Devices, as in Figure 18-33. The redundant paths are not
yet configured or used.
Figure 18-33 Windows Device Manager
9. We need to logon three more times to establish iSCSI sessions to each iSCSI portal or
interface of the DS3300. So far only one session from the NIC interface with IP
172.16.200.91 to 172.16.3.1 was established. To establish the remaining session, select
again the iSCSI target from the target list and click Log on, as in Figure 18-34.
