Chapter 18. iSCSI configuration 3 - Windows 2003 Cluster 423
Draft Document for Review August 30, 2007 12:59 am 7065iSCSI_Config3.fm

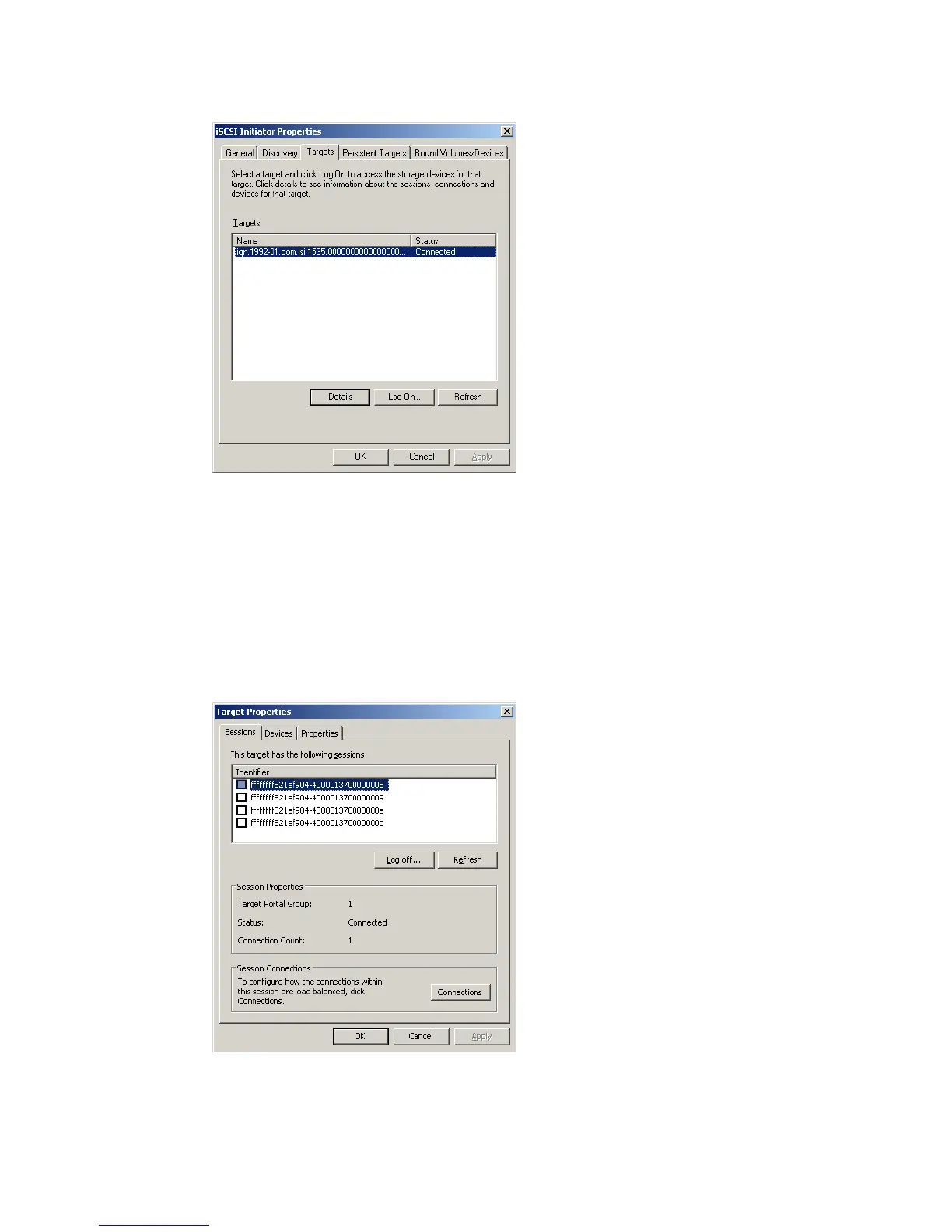

Figure 18-34 iSCSI initiator properties
10.Follow steps 2 till 6 to configure the advanced properties for the remaining iSCSI sessions.
Use the following combinations of source IP and target Portal:
Source IP: 172.16.200.91 → Target Portal 172.16.3.2
Source IP: 172.17.200.91 → Target Portal 172.17.3.1
Source IP: 172.17.200.91 → Target Portal 172.17.3.2
11.After the iSCSI sessions are created to each target portal, you can see details of the
sessions. Select the iSCSI target in the target list (Figure 18-34), and click Details. See
Figure 18-35 on page 423.
Figure 18-35 Target properties
