7065FC_Config3.fm Draft Document for Review August 30, 2007 12:59 am
506 IBM System Storage DS3000: Introduction and Implementation Guide

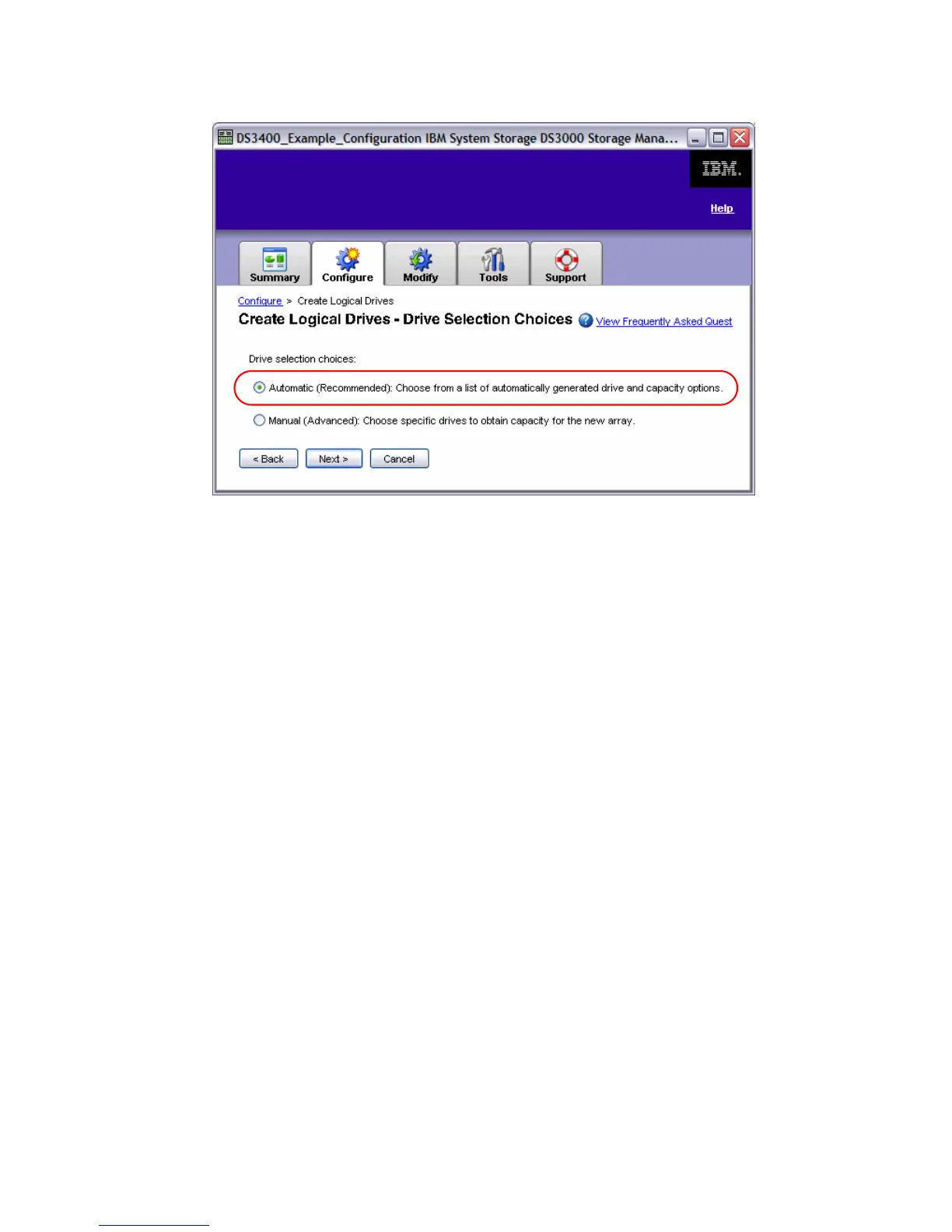

Figure 21-15 Drive Selection Choices
5. In the Specify Capacity window, we specify the RAID level and then select one of the
presented capacity options. We have two unassigned 68 GB disk drives installed and we
want to create a RAID 1 array. So we need to select RAID level 1; at this point, the window
displays an entry showing two drives, see Figure 21-16. Highlight this line and click Next.
