7065FC_Config1.fm Draft Document for Review August 30, 2007 12:59 am
452 IBM System Storage DS3000: Introduction and Implementation Guide
2. The next view shows all boot devices that were scanned and detected during initialization.
Since the DS3400 (1726-4xx) is attached to the HBA, it is shown in the list. Type the
number of the device you want to select and press Enter. In our sample configuration we
have to type 01 and press Enter to select the DS3400 (Figure 19-17).

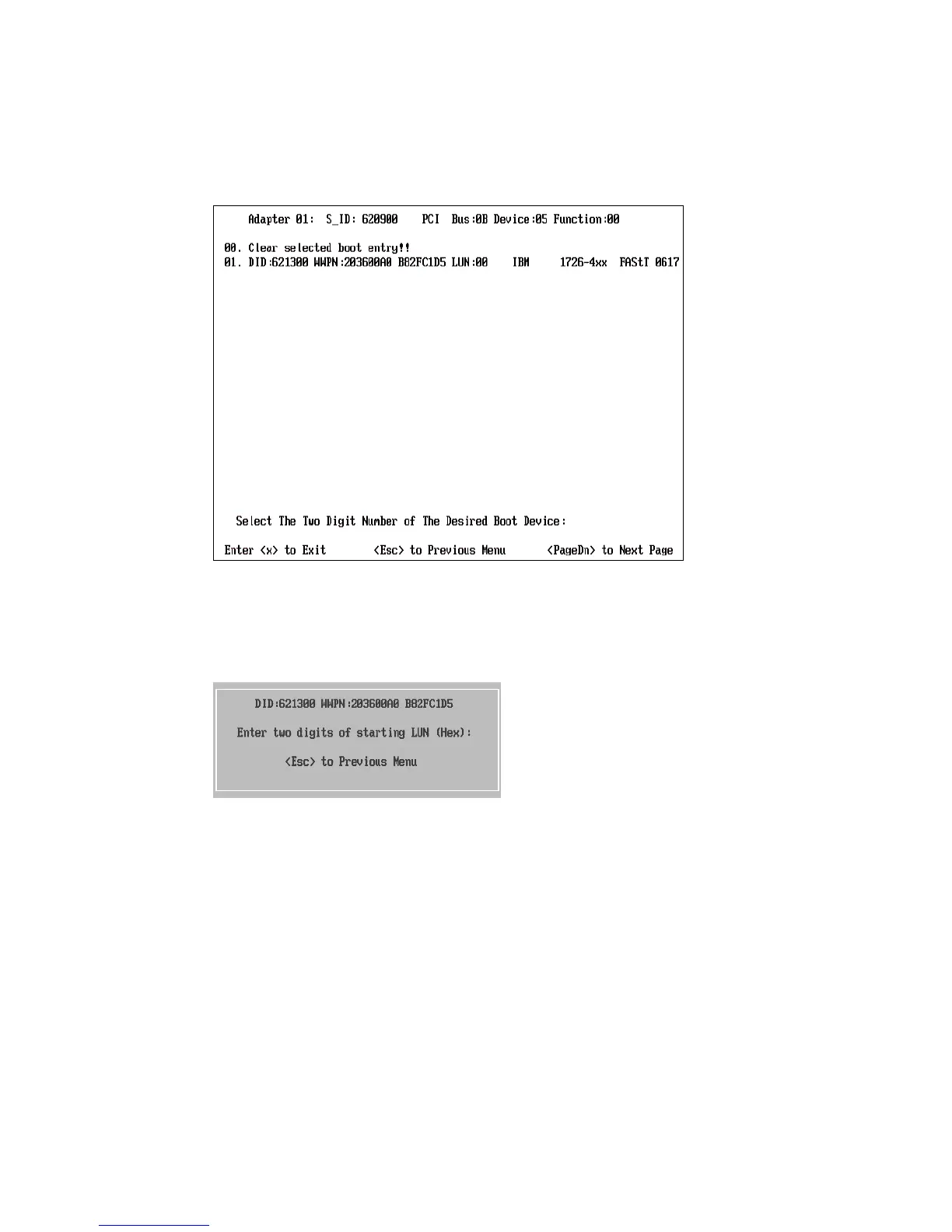

Figure 19-17 Emulex BIOS - Select device
3. You are prompted to specify the starting LUN number to display - a maximum of 16 LUNs
are displayed on the screen, so you need to specify a starting point. In our case, we have
configured the LUN 0 to be the boot logical drive - type 00 and press Enter (Figure 19-18).
Figure 19-18 Emulex BIOS - Enter LUN
4. You will see a list of LUNs which are configured in the storage device. We only configured
one LUN which is LUN 0, as shown in Figure 19-19. Enter the number corresponding to
the LUN which you want to be the boot logical drive - in our case we type 01 and press
Enter.
