In our example, we do not have any free capacity in existing arrays, so we will create a
new array by selecting Unconfigured capacity.

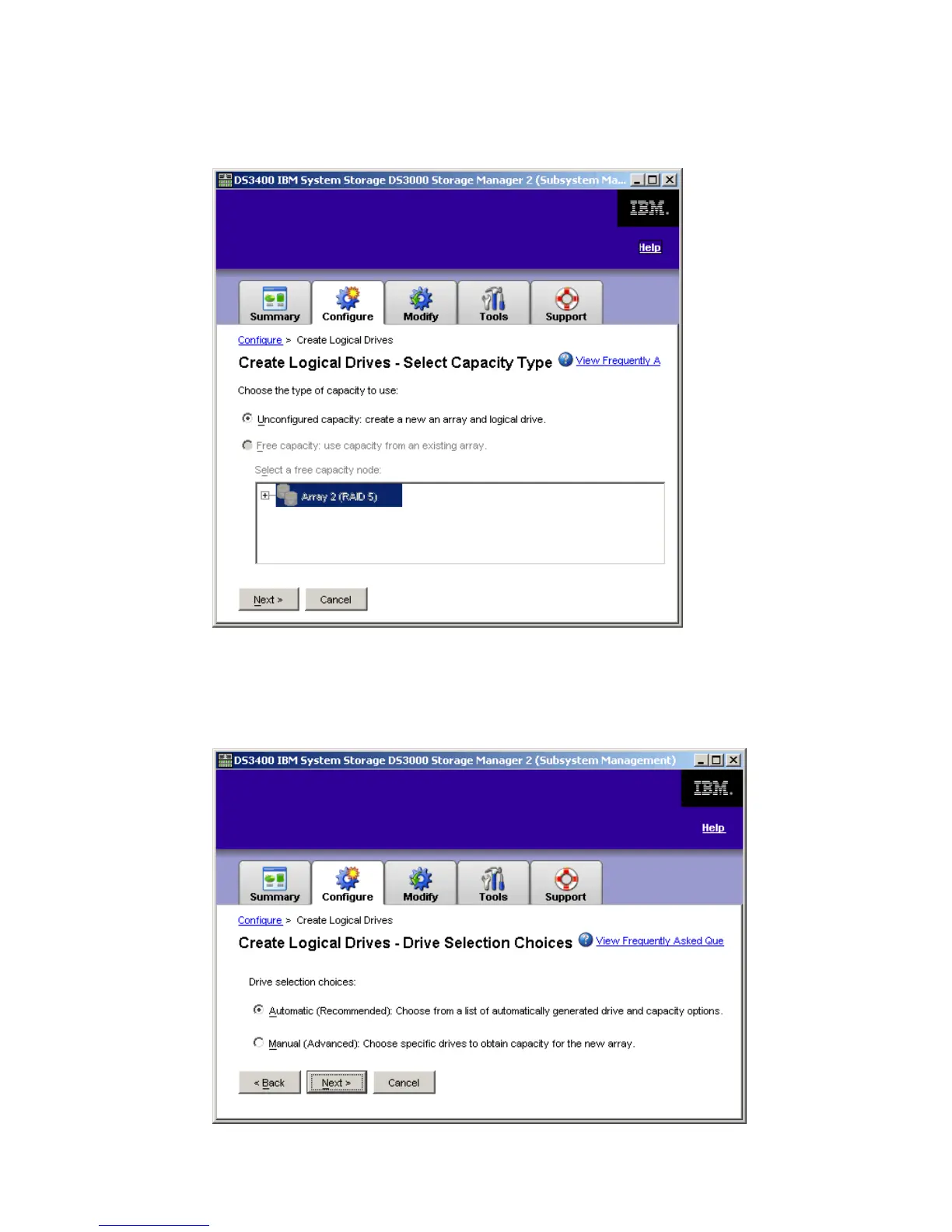

Figure 4-45 Create Logical Drives - Select Capacity Type
2. Next we define the array. This requires two parameters: RAID level and a set of physical
disk drives to be used in the array. As you can see in Figure 4-46, the array can be defined
automatically or manually.
Figure 4-46 Create Logical Drives - Drive Selection Choices
