7065FC_Config3.fm Draft Document for Review August 30, 2007 12:59 am
498 IBM System Storage DS3000: Introduction and Implementation Guide

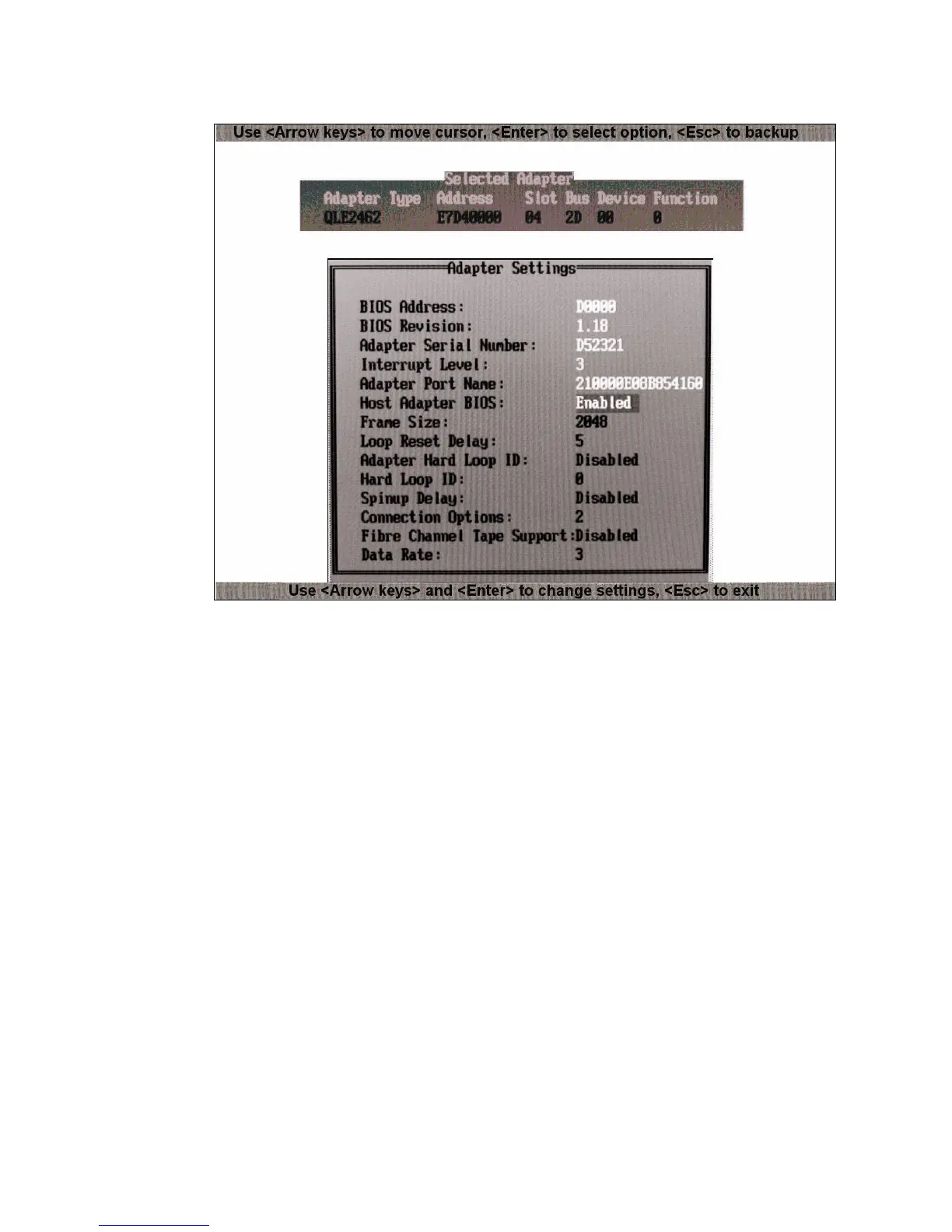

Figure 21-5 Adapter settings
5. Here we also enable the BIOS for this HBA port. Remember, the BIOS must be enabled if
we want to boot through this HBA port.
Change the Host Adapter BIOS setting from Disabled to Enabled, then press Esc. Select
Save changes to confirm.
6. Later in the procedure, we will also need the WWN of the second HBA port. Display and
record this information now.
7. First switch to the second HBA port. Return to the Fast!UTIL Options menu (Figure 21-3)
and choose Select Host Adapter. You will see two QLE2462 adapter ports displayed, as
in Figure 21-2. Select the second line and press <Enter>.
8. Select Configuration Settings → Adapter Settings and look for the WWN of the second
HBA port. As you can see in Figure 21-6 on page 499, the WWN is
21:01:00:E0:8B:A5:41:60.
