7065iSCSI_Config1.fm Draft Document for Review August 30, 2007 12:59 am
342 IBM System Storage DS3000: Introduction and Implementation Guide
16.1 Network configuration

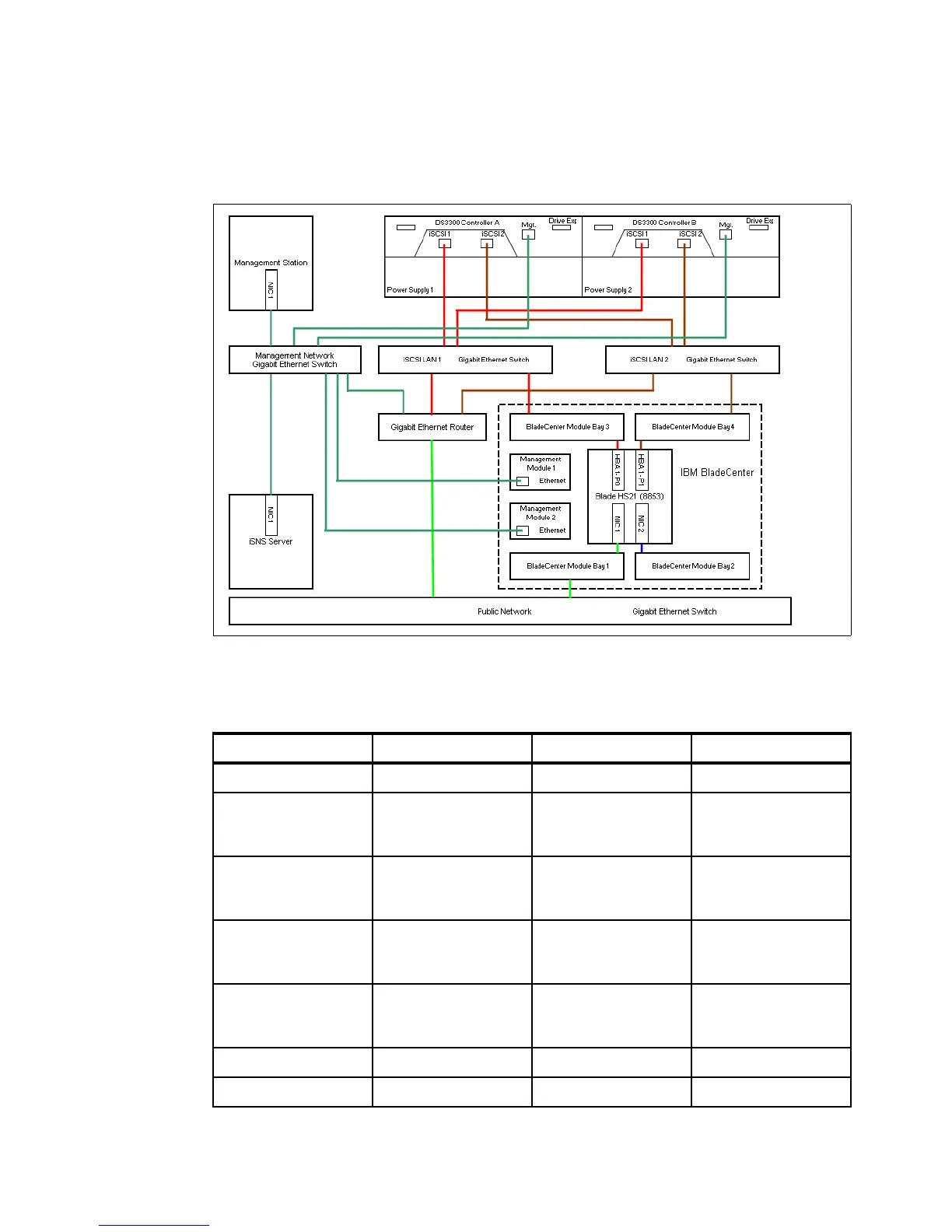

A diagram of the network setup used is shown in Figure 16-1.
Figure 16-1 Network diagram
Table 16-1 shows a list of network addresses used in this sample configuration.
Table 16-1 Network configuration details
Device Description Value Comments
BladeCenter Management interface 172.18.0.125/16 Management LAN
Nortel Layer 2/3
Gigabit Ethernet
Switch Bay 1
172.18.0.127/16
Nortel Layer 2/3
Gigabit Ethernet
Switch Bay 2
172.18.0.128/16
Nortel Layer 2/3
Gigabit Ethernet
Switch Bay 3
172.18.0.129/16
Nortel Layer 2/3
Gigabit Ethernet
Switch Bay 4
172.18.0.130/16
Blade HS21 (8853) Hostname hudson.rivers.local
onboard NIC 1 172.19.200.60/16
