7065iSCSI_Config1.fm Draft Document for Review August 30, 2007 12:59 am
358 IBM System Storage DS3000: Introduction and Implementation Guide
5. IN Figure 16-27, enter the SANsurfer password and click OK. The default SANsurfer
password is config.

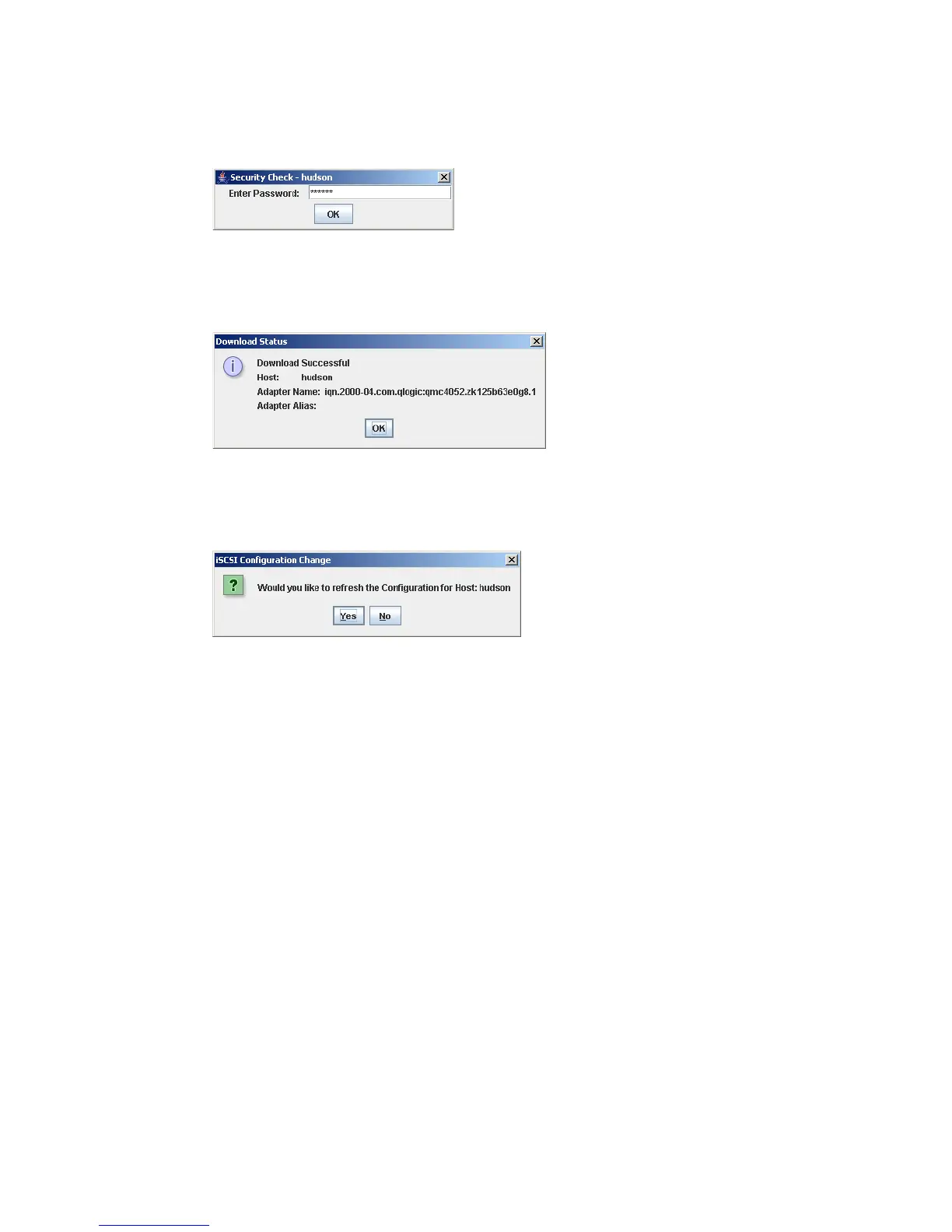

Figure 16-27 SANsurfer - Security check
6. The BIOS update is now performed. You will see a message similar to Figure 16-28 when
the update has finished successfully. Click OK.
Figure 16-28 SANsurfer - BIOS download status
7. After updating the iSCSI HBA BIOS, a refresh of the configuration might be requested.
Click Yes to refresh the configuration, as in Figure 16-29.
Figure 16-29 SANsurfer - Configuration change
8. Figure 16-25 on page 357 reappears. This time, click Select Firmware to Download from
HBA Utilities.
