Chapter 16. iSCSI configuration 1 - Windows 2003 with QLogic QMC4052 HBA 383
Draft Document for Review August 30, 2007 12:59 am 7065iSCSI_Config1.fm
8. Enter the SANsurfer password and click OK. Confirm the warning with Yes as in
Figure 16-59.

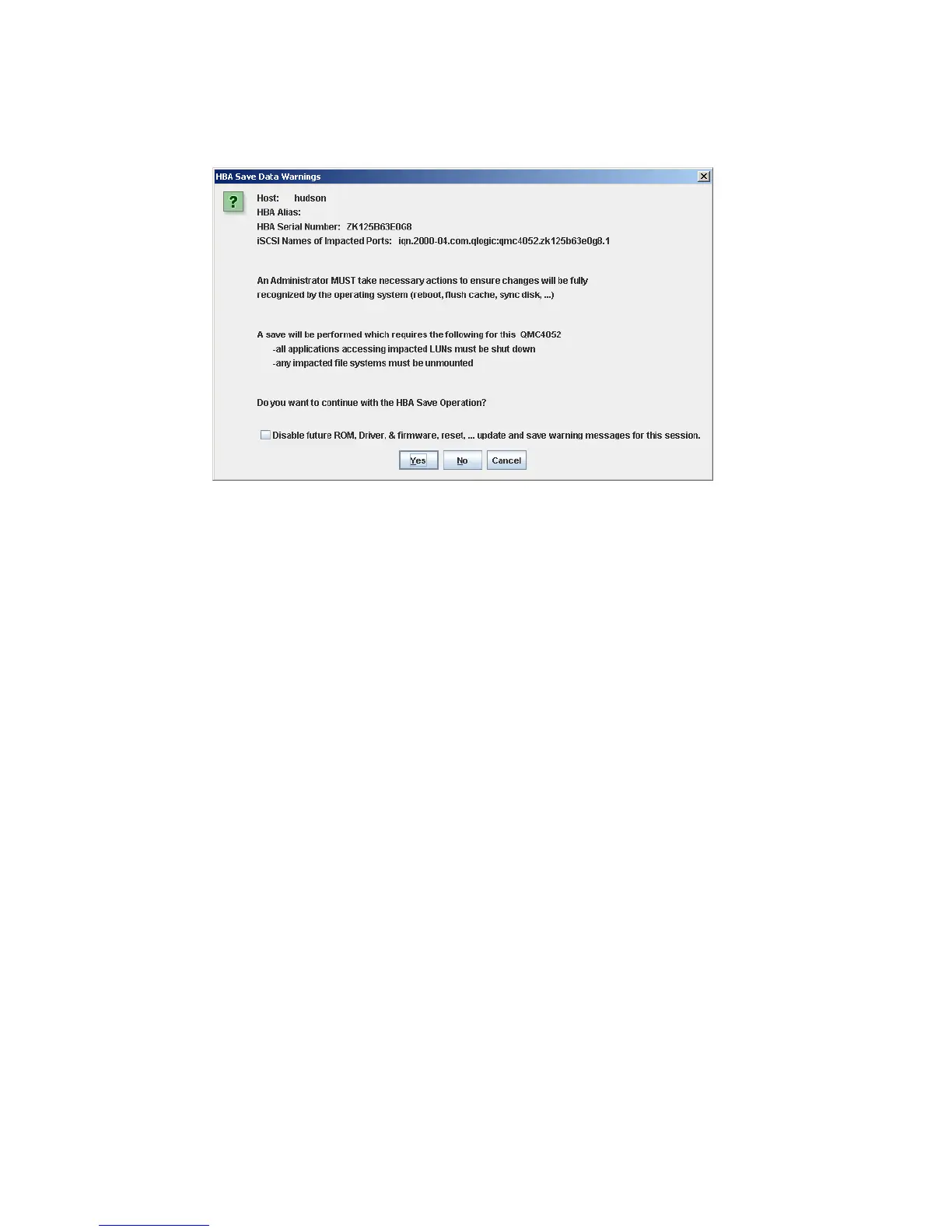

Figure 16-65 SANsurfer - Save data warning
9. A configuration refresh might be requested by SANsurfer. Click OK to refresh the
configuration.
10.Repeat steps 3 on page 381 to 9 on page 383 to configure authentication settings for the
other iSCSI host port and the targets configured on this host port.
11.After configuring the authentication settings on the DS3300 and the HBA, a login to each
target can be performed. In SANsurfer, select the first iSCSI port of the HBA. On the
Target Settings tab right click on a line that contains an IQN. From the context menu
select Login/Save Device, Figure 16-66. This will establish a new iSCSI session with the
target using the new security settings.
