18.1 Network configuration

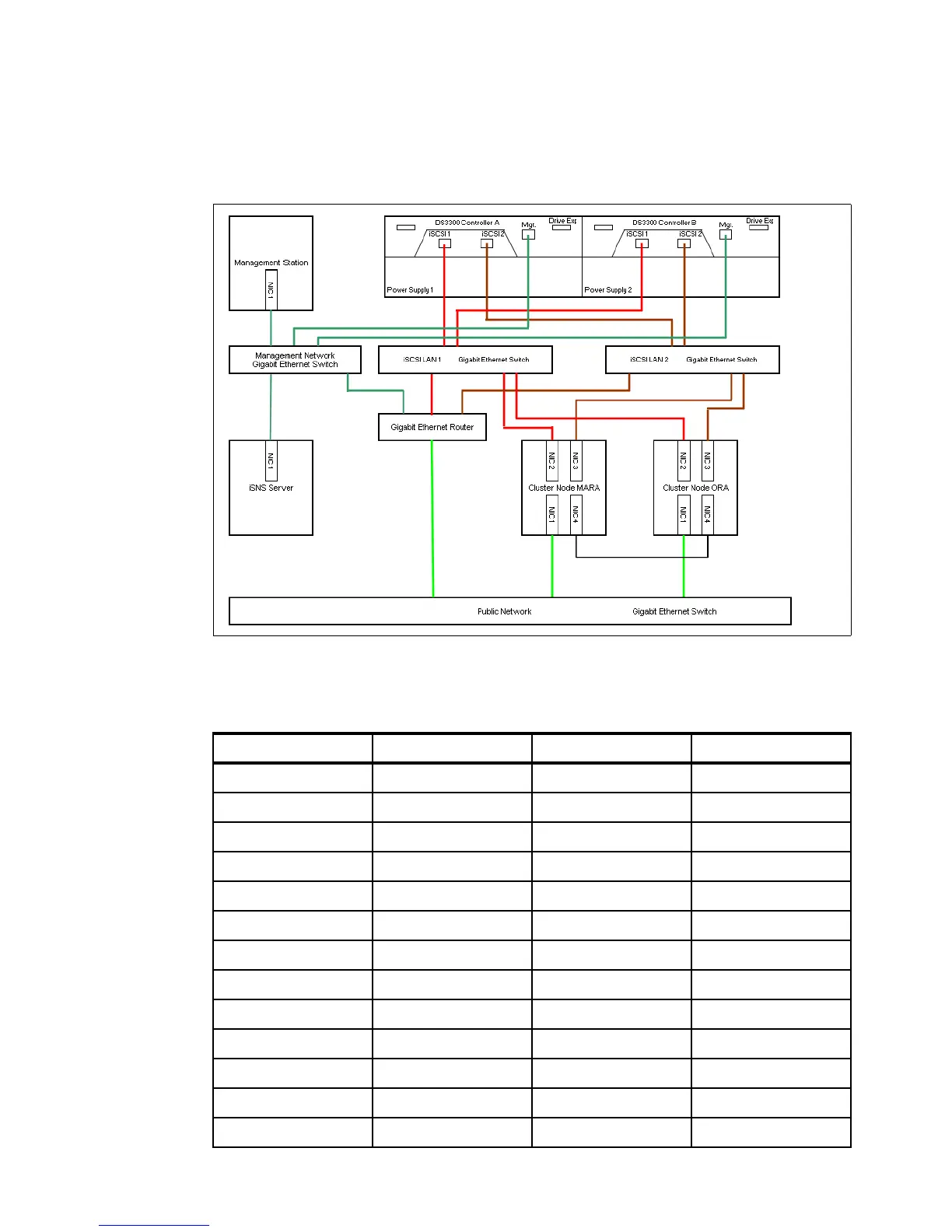

A diagram of the general network setup used is shown in Figure 18-1.
Figure 18-1 Network diagram
Table 18-1 shows a list of network addresses used in this sample configuration.
Table 18-1 Network configuration details
Device Description Value Comments
VMware Server Management interface 172.18.0.55/16 Management LAN
Virtual machine 1 Host name mara.rivers.local
NIC 1 172.19.200.91/16 Public LAN
NIC 2 172.16.200.91/16 iSCSI LAN 1
NIC 3 172.17.200.91/16 iSCSI LAN 2
NIC 4 10.0.0.1/8 Private LAN
Virtual machine 2 Host name ora.rivers.local
NIC 1 172.19.200.92/16 Public LAN
NIC 2 172.16.200.92/16 iSCSI LAN 1
NIC 3 172.17.200.92/16 iSCSI LAN 2
NIC 4 10.0.0.2/8 Private LAN
