Chapter 20. FC configuration 2 -BladeServer Microsoft Cluster 473
Draft Document for Review August 30, 2007 12:59 am 7065FC_Config2.fm
The next step is to install the multipath driver.
20.2.2 Install multipath driver
1. Start Storage Manager on your host server. A detailed description for installing the
Storage Manager is given in 5.1, “Install DS3000 Storage Manager on Microsoft Windows”
on page 94. Follow the steps, select the “Host” installation type (Figure 20-8 on page 473)
and click Next.

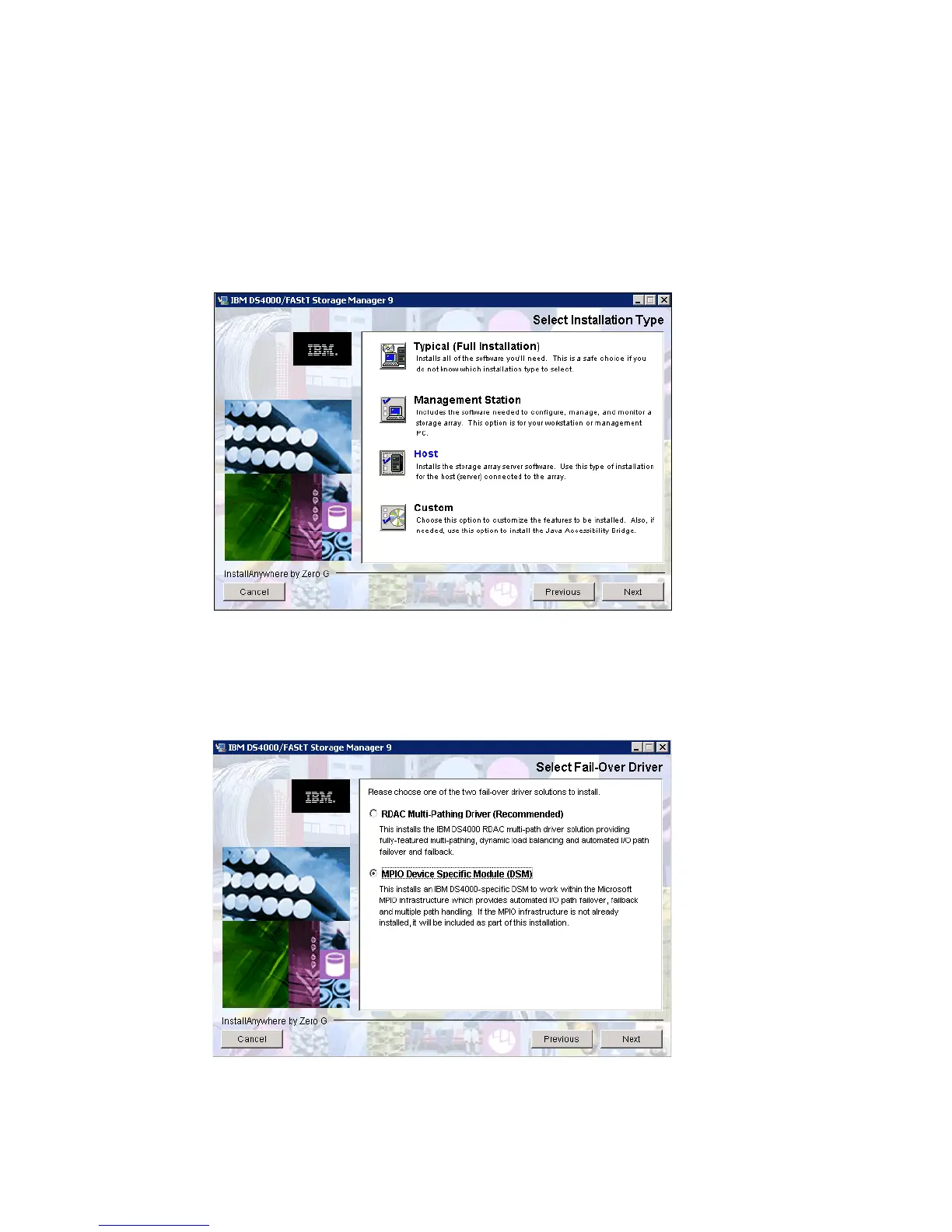

Figure 20-8 Multipath Driver Installation
2. You will be asked which fail over driver you want to use. For the DS3000 subsystem you
have to choose MPIO (Figure 20-9). Click Next and then Install.
3. To complete the installation you have to reboot your server.
Figure 20-9 Install MPIO Driver
4. After the reboot, open Device Manager and expand Disk drives. Remember in the script
(Example 20-1 on page 468), we created two logical drives. In Device Manager
